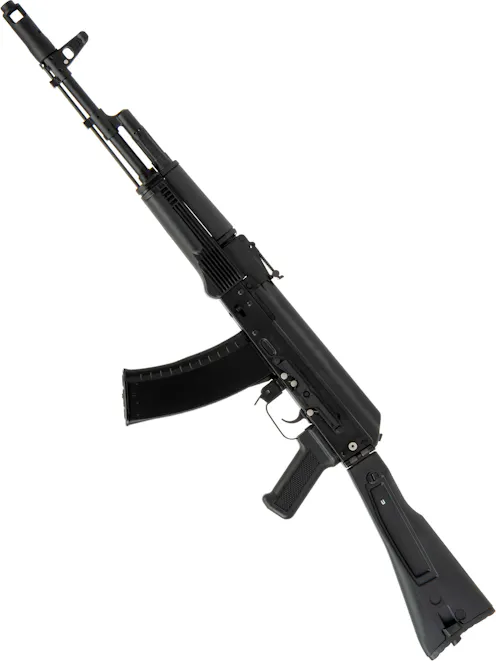

VFC AV74M / AK-74M GBBR

VFC AV74M / AK-74M GBBR

VFC
Code: …
£639.99
  • Full metal construction
  • Full Steel internals
  • Incredible recoil & efficiency

If you're a fan of the iconic AK-74 looking for the best replica around, you just found it! The VFC AV74M / AK-74M GBBR is a stunner of a full metal build bristling with steel, both inside and out, replicating the real steel AK-74M, the post-Cold-War-era modernised AK currently serving alongside the AK-12 as the primary rifle of the Armed Forces of the Russian Federation.

On the outside, everything that should be steel is steel, providing realistic heft and balance which can only be matched by a real AK. Inside, the entire trigger group and bolt carrier are also made from steel, saving you a heap of money on longevity upgrades and giving the AV74M everything it needs to last a lifetime of heavy use.

A premium piece as well suited to a high-end collection as it is out on the field, the VFC AV74M / AK-74M GBBR is a significant improvement over other GBBR AKs, both in its realistic details and impressive performance. With a beating heart of hard recoil backed up with incredible gas efficiency, a steel full-travel bolt carrier and authentic Izhmash Arsenal markings, this is almost definitely the best GBBR AK replica out there!

Full description

Help
Size guide

Description

Suggested Accessories

Optic Mounts: LCT Zco Classic AK Rail Mount | CYMA 20mm Picatinny Mount | M-ETAL QD 20mm Side Mount

Dedicated AK Optics: JJ Airsoft Rakurs 1x20 Optic | JJ Airsoft EKP-1S-03 Red Dot | JJ Airsoft OPK-7 Red Dot (side Mount)

Muzzle Devices: 5KU DTK Putnik Suppressor | Acetech Blaster AK Tracer | PTS Dead Air Wolverine Tracer

Platform Details

Starting at the tip of the 16.3-inch steel outer barrel, we can find a steel AK-74 muzzle brake, the perfect muzzle device for an authentic Cold War-era AK-74. The muzzle brake mounts to realistic 24mm CW male threading, making it compatible with 24mm CW threaded Russian-style suppressors or 14mm CCW male threaded muzzle devices if you remove the 24mm adapter.

To remove the muzzle device, you will need to hold the detent pin in the front sight down to allow the muzzle brake to be unscrewed. The easiest way we found to do this is to hold the pin down with a small flathead screwdriver. To remove the adapter beneath, locate the grub screw and remove it before attempting to unscrew the adapter itself.

The steel front sight of the AV74M mounts directly to its outer barrel and provides an adjustable front post with protective wings to ensure an accidental bump or scrape does not render your sights useless. As part of the classic AK aesthetic, we can find a dummy cleaning rod running parallel to the outer barrel, through the front sight block and gas block. This isn't intended for cleaning an Airsoft barrel, but it is an essential part of the realistic AK look.

Moving further down the outer barrel, we come to the dummy gas block, made from steel with an authentic finish matching the front sight and trunnion block. This connects to the stamped steel gas tube, which meets the ribbed polymer upper handguard via a steel handguard cap.

The handguards are styled after the standard AK-74 polymer type, with linear grooves for additional grip. These handguards match perfectly with the post-Bakelite era AK furniture, such as the side-folding solid stock to complete the modernised AK-74 look.

The lower handguard surrounds the steel outer barrel and is retained by its own handguard cap, also made from steel, which includes a sling point on the left side, ideally for hook-type slings. The steel trunnion block also provides the mounting point for the classic AK tangent rear iron sight, which provides multiple graduations for adjustment and a fine rear sight notch to align with the front sight post. The sight can be adjusted by pressing the buttons on either side of the sight notch and moving the notch back and forth on its base.

Moving rearwards, we come to the receiver, made from stamped steel with realistic Izhmash Arsenal markings throughout. A unique serial number is engraved on the trunnion block just above, with the arrow inside a triangle-style Izhmash marking alongside. In terms of markings, this is probably the best Russian-style AK on the market.

In typical AK style, the first position on the fire selector is fully auto, and the lowermost position is semi-automatic. Each fire mode is denoted by a crisp, stamped, authentic Russian Cyrillic marking, adding realism to this already very realistic AK.

Over on the left side, we can find an AK quick-detach mounting rail, allowing for authentic Russian scopes to be mounted, or Picatinny rail mounts if you prefer a more modern Western optic. The receiver also provides several authentic dummy rivets, all found in the correct place for this AK variant.

The charging handle is of a classic AK format and is machined as part of the steel mock bolt carrier. The bolt carrier and charging handle are authentically coloured black, matching the real AK-74 bolt carrier perfectly. Rack it back to load the first BB and get a taste of that full-travel-bolt goodness, the closest thing you'll get in Airsoft to the real steel AK experience.

The adjustable HOP-up unit is inside the ejection port, easily accessed with the charging handle held back. It makes use of the rotary adjuster design, a fantastic choice in terms of consistency. Compatibility-wise, this unit takes standard GBB/VSR type HOP-up buckings and inner barrels, giving you plenty of upgrade options.

The receiver top cover of the AV74M is also constructed from stamped steel and is the appropriate design for a modern AK, with ribs stamped into the upper surface to provide additional strength while keeping the material thin and lightweight.

The pistol grip of the AV74M is a standard AKM/AK-74 type pistol grip, with diamond checkering on either side to ensure the rifle stays firmly in your grasp in any weather condition. The trigger guard and magazine release can be found just ahead of the pistol grip, and are constructed from steel to provide solid magazine locking and ample rigidity.

The magazine release is placed in the centre of the receiver and is accessible from either side of the rifle, a definite advantage over other designs for left-handed shooters. The magazine retention system of the AK platform is a "rock and lock" motion, requiring you to first index the front "hook" on the magazine inside the receiver, then rock the magazine to engage the catch.

The stock is constructed from polymer and is a realistically slim design to facilitate side-folding functionality, mounted on a steel folding mechanism to complete the flawless full-steel build. To fold the stock to the side, simply press the button on the left side of the receiver, fold the stock to the left side and lock it on its hook.

To unfold the stock, press the button on the butt plate to disengage the hook, after which the stock can be folded into the deployed position and locked. The right side of the stock also features a sling loop, which pairs well with the front sling point on the lower handguard cap, providing appropriate mounting apparatus for a two-point sling, but ideally suited to an AK-47/74 sling.

Internals

Inside, the VFC AV Series GBBRs are bristling with robust steel components, from the bolt carrier to the full trigger group, giving you bomb-proof internals which don't need upgrading. Incredible attention to detail has been paid in how the internal parts look, meaning if you know your way around a real steel AK, you'll be very impressed with the VFC build.

The HOP-up unit is a unique design, known as the EZ-HOP system by VFC. This is effectively an easy-access rotary HOP-up unit, providing a large adjustment dial inside the chamber which is easy to turn, even with gloved fingers. The HOP-up internals are standard GBB/VSR style, meaning aftermarket buckings and nubs are a go!

The highlight of the VFC AV series is its incredible gas efficiency, with one gas fill capable of cycling the action up to 200 times in warmer weather, something no other GBBR can match. Recoil is as hard as the shoulder-shattering WE AK GBBR, and the cyclic rate is far faster, closer to the GHK AK GBBR with its short-travel bolt. Long story short, we're very impressed with this beast!

Features

  • Full metal build - Full steel, other than the furniture
  • 6.05mm Tightbore inner barrel - Superb accuracy potential
  • 24mm CW Male thread adapter pre-installed - Compatible with Russian-style tracers & suppressors
  • 14mm CCW male-threaded outer barrel - Remove the adapter to fit 14mm CCW tracers & suppressors
  • Steel AK-74 muzzle brake pre-installed - Iconic Russian styling
  • Steel front sight, outer barrel and gas block - Realistic weight distribution
  • Ribbed polymer handguards - Authentic post-Cold-War AK furniture
  • Stamped steel gas tube - Authentic build materials across the design
  • Adjustable Tangent iron sights - Elevation adjustable via the buttons on the side of the rear sight
  • Steel trunnion block, receiver & top cover - Maximum steel for ultimate realism
  • Stamped steel receiver & top cover - Authentic rivet detail, thicker than usual stamped steel receivers
  • Full-travel steel bolt carrier - Rack it back for a satisfying metal-on-metal "clank"
  • Rotary adjustable HOP-up unit - Updated design, improved setting retention compared to the slider
  • 3-Position fire selector switch - SAFE - FULL AUTO - SEMI, just like a real AK
  • Russian AK-style side rail - Mount Russian AK optics or 20mm Picatinny rail mounts for optics
  • Textured pistol grip with a black finish - Realistic slim grip, perfectly mimics the real AK grip
  • Side-folding solid stock - Folds to the left side for storage; press the button on the butt plate to unfold
  • Compatible with VFC AV74 Series GBBR Magazines
  • Is this your first GBBR? If so, check out our guide: Your First GBBR: What you need to know

Package Includes

  • VFC AV74M / AK-74M GBBR
    • 42rnd Green Gas magazine

Specification

General

Weapon Construction External
 Platform Type
Assault Rifle
Over 18 Only Icon
 Over 18
Yes
Icon UKARA - United Kingdom Airsoft Retailer Association
 Defence / UKARA Required
Yes, No,
Screwdriver Icon
 Prebuilt
Yes
Package
 Included Items
Magazine
Skill Level Icon
 Skill Level
Advanced Player
Patrol Base - Warning Icon
 Warnings
Lubrication is required

Testing

FPS Icon
 FPS, using 0.20g BBs
Approx.340fps ± 10%, using 0.20g BBs
Testing Notes
Tested using 0.20g Delta Armory Diamond BBs

Weight and Dimension

Weight KG Icon
 Weight (KG)
Approx.3.5KG
Weapon Length Collapsed
 Length
70cm
Weapon Length Extended
 Length (Extended)
94cm

Construction

Colour Wheel Greyscale
 Primary Colour
Black

Weapon Specific

Power Source Icon
 Powered By
Green Gas
Blowback Icon
 Blowback Type
Gas Blowback
Platform
 Platform
AK-74M
Magazine Style Icon
 Magazine Compatibility
VFC AV Series GBBR Magazines only
Fire Select Icon
 Fire modes
PatrolBase | Fire Select Safe
 Safe
Patrol Base | Fire Select - Semi Automatic
 Semi Automatic
Patrol Base | Full Automatic
 Full Automatic
Weapon Safety Features Icon
 Safety Features
Trigger Lock
Shooter Configuration Icon
 Shooter Configuration
Right Handed
Weapon Scale Icon
 Platform Scale
1:1
Suggested BB Weight
 Suggested BB Weight
0.25g

Hop-Up

Hop-Up Unit Adjuster Icon
 HOP-Up Adjuster Type
Rotary
Hop-Up Unit Location Icon
 HOP-Up Adjustment Location
Inside the ejection port, accessible with the charging handle pulled and held back.

Furniture

Weapon Furniture Icon
 Furniture
  • Ambidextrous Magazine Release
  • Textured Pistol Grip
  • Adjustable open iron sights
  • Threaded Outer Barrel
  • Muzzle Brake
  • sling points front and rear
  • Russian AK style side rail mount
  • Ribbed handguards
  • Side folding stock
Rail System Icon
 Rail System
Railed Mount Available, Russian AK Side Rail,
Icon Stock Positions
 Stock Type
Folding
Weapon Length Extended
 Stock Positions
2
Sight Type Icon
 Sight Type
Tangent Open Iron Sight
Sling Plate Icon
 Sling Options
Stock, Handguard,

Barrel

Outer Barrel Length (in)
16.3''
Icon Thread Type
 Outer Barrel Thread Type
Male
Icon Thread Direction
 Outer Barrel Thread Direction
CCW (Counter Clockwise)
Outer Barrel Thread Size
 Outer Barrel Thread Size
14mm
Inner Barrel Diameter
 Inner Barrel Diameter
6.05mm
Inner Barrel Length
 Inner Barrel Length
285mm

Magazine Specific

Magazine Type
 Magazine Type
Gas, Low Capacity,
Magazine BB Capacity
 Magazine BB Capacity
Approx.42Rounds

Gas Gun Specific

Gas Can Icon
 Gas Type
Green Gas
Gas Can Icon
 Gas Recommendation
Green Gas

Further Information

Special Instructions

This is a Gas Blowback Rifle. GBBRs require maintenance and careful handling, and we do not recommend them for new skirmishers. Things to watch out for if this is your first GBBR:

  • The HOP-up adjuster for the VFC AV Series GBBR is inside the chamber, accessible with the charging handle held back.
  • When the magazine runs dry, you will experience what is known as the "dead man's click". This is by design, intended to replace what happens when a real AK runs dry. To recommence shooting, refill your mag with BBs and you're ready to rock!
  • GBBRs need to be cocked before the first shot, just like a GBB pistol. It is important that you do not double-load a GBBR, as this can break the nozzle. We recommend clearing the chamber of BBs with a cleaning rod in the event that you finish firing mid-magazine.
  • GBBRs generally use higher-pressure gas than GBB pistols due to the extra weight of the bolt. We recommend Green Gas (NUPROL 2.0, VORSK V6, ASG Ultraair) for general use and Red Gas (NUPROL 3.0, VORSK V8) for cold weather use.
  • The faster you shoot a GBBR, the less accurate it will be. This is due to pressure variance as the gas reservoir cools down. Full auto is basically for fun, and these rifles run far better when used in semi-auto mode.
  • Like a GBB pistol, GBBR magazines require maintenance. We recommend leaving a small amount of gas inside the magazine when stored and not storing the magazines in a cold or damp environment. Magazine seals and valves will need lubrication and to be kept clear of dust and debris.

The VFC AV series magazine has the ability to be used in normal or "dry fire" modes. The "dry fire" mode will not activate the "stop firing on empty/dead man's click" function and will allow the GBBR to continue to cycle until the gas reservoir is depleted.

To activate "Dry Fire Mode":

  • Hold the follower down
  • With the follower held down, push the switch on the left side of the mock feed lips forward

To activate "Stop firing on empty/Dead man's click":

  • Push the switch on the left side of the mock feed lips rearward.

Size guide

Joule Charts

Special Instructions

These tables can be used as a reference to see if the BB weight you are using will be over acceptable joule limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

Tap the tabs below to open the relevant chart for your replica.
