- Large Battery Space
- Lightweight & Robust
- Battery & Charger Inc.
An Airsoft 6mm BB firing electric AEG designed in the style of the MP5 used by Special Forces around the world. Featuring a lightweight and durable Polymer external construction, this a RIF for those who like to stay light and fast on their feet.
Fast Delivery
Delivery & Postage
Here at Patrol Base we ship worldwide, delivering not only to the UK but to most of the EU and select Worldwide locations as well. We provide a working day-by-road service via our handpicked courier services, simply buy your Airsoft guns with us and we'll have them delivered directly to your door.
For more information and to see the country we deliver please check out our Delivery Information Page.
Estimates
Below are some rough postage prices for orders. Please note these are subject to change and are only a rough guide. For a more accurate postage estimate please use the Postage Calculator at the basket.
UK Standard
£6.95
Approx.
UK Next Day
£8.95
Approx.
Highlands / Islands
£24.99*
Approx.
Saturday
£14.95
Approx.
* Scottish Highlands, Islands, and EU post prices can vary wildly. Prices range from £8.99 to £29.99, so please ensure you refer to the Postage Calculator at the basket for the lowest possible price.
Returns
We want you to be delighted with our products and services, so we provide the simple Patrol Base guarantee: if on receiving your item you are unhappy with your item for any reason then simply send it back to us. We will replace or refund the item.
You can return any item for any reason whatsoever, even if you have just changed your mind, within 14 days of receipt of the order. This is in addition to your rights under the Consumer Protection (Distance Selling) Regulations 2000.
For more information on returning products, and how to do it please visit our Returns Policy Page.
Description

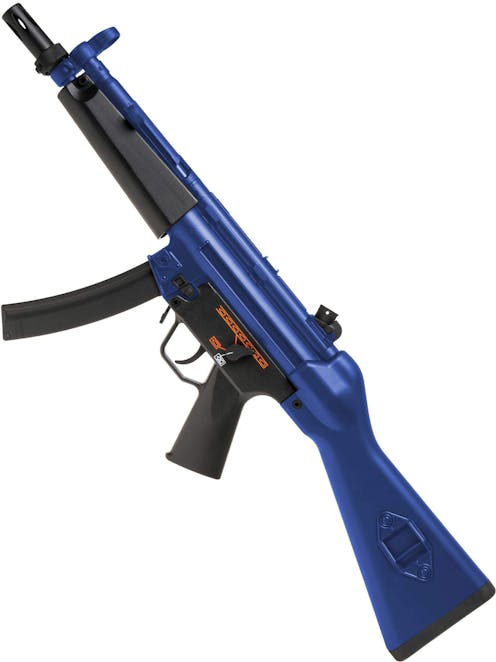

This particular Airsoft gun is a replica of the standard MP5 A4 variant, realistically constructed from Polymer and featuring a slim-line triangular handguard and the solid stock. The HOP unit is a slide style adjustment which can be tweaked via a slider next to the handguard, allowing users to modify the range and accuracy performance of the gun, or compensate for heavier weights of BB without disassembly.
The sights are the standard tried and tested HK type rotary drum design, which offer users a system that allows for rapid and easy acquisition of targets in a wide range of situations. The battery is stored at the rear of the replica in the solid stock, which offers a larger battery space than most replicas, and is connected via a Mini Tamiya connector. A thick rubberised pad on the butt helps maintain control in the shoulder, even in the most intense CQB environments. Included in the box is a battery and EU pin charger (adaptor required) which is a good start to your Airsofting career, however you will definitely want to swap these out for an aftermarket set, as the included 8.4v battery will yield a very low rate of fire.
Also included is an Alloy 200 round high cap magazine which is loaded from a fill window on the top, and feeds the replica via a clockwork winding wheel on the base. Whether you’re new to Airsoft or a veteran player looking for a change, this solidly built and affordable MP5 replica is a brilliant piece of kit. From being used as the focal point of accurate Special Forces impressions, to simply being a reliable back up gun, this MP5 replica offers Airsofters an incredibly versatile and practical replica wide range of potential uses.
Features
- Authentic replica MP5 A4
- Navy trigger group (safe, semi, fully automatic)
- Slide style HOP adjust
- Front sling mount
- Fixed stock sling mount
- Magazine well sling mount
- Stock ambidextrous sling mount
- Rear H&K drum style rear sight
- Ambidextrous magazine release lever
- Right hand magazine release button
- Ambidextrous fire selector
- Solid fixed stock
- Rubberised butt pad
- Rear wired
- Large battery space
Package Includes
- M5-A4 JG070MG
- 200rnd High Capacity Magazine
- User Manual
- Cleaning / Unjamming Rod
- Muzzle Cover
Specification
General
 |
Submachine Gun
|
|---|---|
 |
Yes
|
 |
Yes,
No,
|
 |
Approx. 340fps ± 10%, using 0.20g BB
|
 |
Yes
|
 |
|
 |
Starter
|
 |
Free Gift Battery Warning
|
Weight and Dimension
 |
Approx. 1.75kg
|
|---|---|
 |
66cm
|
Construction
 |
Black
|
|---|---|
 |
No
|
 |
Polymer externals with Alloy trim.
|
|
|
Polymer
Alloy
|
 |
Polymer
Alloy
|
Weapon Specific
 |
Electric
|
|---|---|
 |
None
|
 |
SMG-5
|
 |
SMG-5, SMG-5,
|
 |
   |
 |
Trigger Lock
|
 |
Ambidextrous
|
 |
Standard
|
 |
1:1
|
 |
0.25g
|
Hop-Up
 |
Yes
|
|---|---|
 |
Slider
|
 |
Side of Handguard
|
Furniture
 |
|
|---|---|
 |
None
|
 |
Fixed
|
 |
1 Position
|
 |
Rotary Drum Iron Sight
|
 |
Stock , Receiver , Barrel,
|
Barrel
 |
230mm
|
|---|
Magazine Specific
 |
High Capacity, AEG,
|
|---|---|
 |
Approx. 200 Rounds
|
 |
Fill Window
|
 |
Top
|
Electric Gun Specific Information
Gearbox
 |
Rear Wired
|
|---|
Battery Specific
 |
 |
|---|
Included Battery
 |
Block
|
|---|---|
 |
Ni-Mh
|
 |
8.4V
|
 |
1100mAh
|
Compatible Battery
 |
Li-Po
|
|---|---|
 |
Stick
|
 |
7.4v
|
Product Testing Data
 |
340FPS @ 660RPM w/ 7.4v LiPo
|
|---|---|
|
|
ASG Blaster 0.20g BBs
|
|
|
22/03/19
|
Size guide
Joule Charts
Special Instructions
These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.
FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.
Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.
Tap the tabs below to open the relevant chart for your replica.
This table should be used for reference, and cannot be used to check one weight against another, as the weight of the BB affects the power.
In order to check if the BB can be used with your replica chronograph using the weight you wish to use and then compare it against the table.
Every time you change weights you will need to re-chrono and check against the table. This is not a conversion chart between weights.
Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.
| Velocity | BB Weight (Grams) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| FPS | 0.20 | 0.25 | 0.28 | 0.30 | 0.32 | 0.36 | 0.40 | 0.43 | 0.45 | 0.50 |
| 250 | 0.58 | 0.73 | 0.81 | 0.87 | 0.93 | 1.05 | 1.16 | 1.25 | 1.31 | 1.45 |
| 260 | 0.63 | 0.79 | 0.88 | 0.94 | 1.00 | 1.13 | 1.26 | 1.35 | 1.41 | 1.57 |
| 270 | 0.68 | 0.85 | 0.95 | 1.02 | 1.08 | 1.22 | 1.35 | 1.46 | 1.52 | 1.69 |
| 280 | 0.73 | 0.91 | 1.02 | 1.09 | 1.17 | 1.31 | 1.46 | 1.57 | 1.64 | 1.82 |
| 290 | 0.78 | 0.98 | 1.09 | 1.17 | 1.25 | 1.41 | 1.56 | 1.68 | 1.76 | 1.95 |
| 300 | 0.84 | 1.05 | 1.17 | 1.25 | 1.34 | 1.51 | 1.67 | 1.80 | 1.88 | 2.09 |
| 310 | 0.89 | 1.12 | 1.25 | 1.34 | 1.43 | 1.61 | 1.79 | 1.92 | 2.01 | 2.23 |
| 320 | 0.95 | 1.19 | 1.33 | 1.43 | 1.52 | 1.71 | 1.90 | 2.05 | 2.14 | 2.38 |
| 325 | 0.98 | 1.23 | 1.37 | 1.47 | 1.57 | 1.77 | 1.96 | 2.11 | 2.21 | 2.45 |
| 328 | 1.00 | 1.25 | 1.40 | 1.50 | 1.60 | 1.80 | 2.00 | 2.15 | 2.25 | 2.50 |
| 330 | 1.01 | 1.26 | 1.42 | 1.52 | 1.62 | 1.82 | 2.02 | 2.18 | 2.28 | 2.53 |
| 335 | 1.04 | 1.30 | 1.46 | 1.56 | 1.67 | 1.88 | 2.09 | 2.24 | 2.35 | 2.61 |
| 340 | 1.07 | 1.34 | 1.50 | 1.61 | 1.72 | 1.93 | 2.15 | 2.31 | 2.42 | 2.68 |
| 345 | 1.11 | 1.38 | 1.55 | 1.66 | 1.77 | 1.99 | 2.21 | 2.38 | 2.49 | 2.76 |
| 350 | 1.14 | 1.42 | 1.59 | 1.71 | 1.82 | 2.05 | 2.28 | 2.45 | 2.56 | 2.85 |
| 355 | 1.17 | 1.46 | 1.64 | 1.76 | 1.87 | 2.11 | 2.34 | 2.52 | 2.63 | 2.93 |
| 360 | 1.20 | 1.51 | 1.69 | 1.81 | 1.93 | 2.17 | 2.41 | 2.59 | 2.71 | 3.01 |
Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.
| Velocity | BB Weight (Grams) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| FPS | 0.20 | 0.25 | 0.28 | 0.30 | 0.32 | 0.36 | 0.40 | 0.43 | 0.45 | 0.50 |
| 250 | 0.58 | 0.73 | 0.81 | 0.87 | 0.93 | 1.05 | 1.16 | 1.25 | 1.31 | 1.45 |
| 260 | 0.63 | 0.79 | 0.88 | 0.94 | 1.00 | 1.13 | 1.26 | 1.35 | 1.41 | 1.57 |
| 270 | 0.68 | 0.85 | 0.95 | 1.02 | 1.08 | 1.22 | 1.35 | 1.46 | 1.52 | 1.69 |
| 280 | 0.73 | 0.91 | 1.02 | 1.09 | 1.17 | 1.31 | 1.46 | 1.57 | 1.64 | 1.82 |
| 290 | 0.78 | 0.98 | 1.09 | 1.17 | 1.25 | 1.41 | 1.56 | 1.68 | 1.76 | 1.95 |
| 300 | 0.84 | 1.05 | 1.17 | 1.25 | 1.34 | 1.51 | 1.67 | 1.80 | 1.88 | 2.09 |
| 310 | 0.89 | 1.12 | 1.25 | 1.34 | 1.43 | 1.61 | 1.79 | 1.92 | 2.01 | 2.23 |
| 320 | 0.95 | 1.19 | 1.33 | 1.43 | 1.52 | 1.71 | 1.90 | 2.05 | 2.14 | 2.38 |
| 330 | 1.01 | 1.26 | 1.42 | 1.52 | 1.62 | 1.82 | 2.02 | 2.18 | 2.28 | 2.53 |
| 340 | 1.07 | 1.34 | 1.50 | 1.61 | 1.72 | 1.93 | 2.15 | 2.31 | 2.42 | 2.68 |
| 350 | 1.14 | 1.42 | 1.59 | 1.71 | 1.82 | 2.05 | 2.28 | 2.45 | 2.56 | 2.85 |
| 360 | 1.20 | 1.51 | 1.69 | 1.81 | 1.93 | 2.17 | 2.41 | 2.59 | 2.71 | 3.01 |
| 370 | 1.27 | 1.59 | 1.78 | 1.91 | 2.03 | 2.29 | 2.54 | 2.73 | 2.86 | 3.18 |
| 380 | 1.34 | 1.68 | 1.88 | 2.01 | 2.15 | 2.41 | 2.68 | 2.88 | 3.02 | 3.35 |
| 390 | 1.41 | 1.77 | 1.98 | 2.12 | 2.26 | 2.54 | 2.83 | 3.04 | 3.18 | 3.53 |
| 400 | 1.49 | 1.86 | 2.08 | 2.23 | 2.38 | 2.68 | 2.97 | 3.20 | 3.34 | 3.72 |
| 410 | 1.56 | 1.95 | 2.19 | 2.34 | 2.50 | 2.81 | 3.12 | 3.36 | 3.51 | 3.90 |
Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.
| Velocity | BB Weight (Grams) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| FPS | 0.20 | 0.25 | 0.28 | 0.30 | 0.32 | 0.36 | 0.40 | 0.43 | 0.45 | 0.50 |
| 250 | 0.58 | 0.73 | 0.81 | 0.87 | 0.93 | 1.05 | 1.16 | 1.25 | 1.31 | 1.45 |
| 260 | 0.63 | 0.79 | 0.88 | 0.94 | 1.00 | 1.13 | 1.26 | 1.35 | 1.41 | 1.57 |
| 270 | 0.68 | 0.85 | 0.95 | 1.02 | 1.08 | 1.22 | 1.35 | 1.46 | 1.52 | 1.69 |
| 280 | 0.73 | 0.91 | 1.02 | 1.09 | 1.17 | 1.31 | 1.46 | 1.57 | 1.64 | 1.82 |
| 290 | 0.78 | 0.98 | 1.09 | 1.17 | 1.25 | 1.41 | 1.56 | 1.68 | 1.76 | 1.95 |
| 300 | 0.84 | 1.05 | 1.17 | 1.25 | 1.34 | 1.51 | 1.67 | 1.80 | 1.88 | 2.09 |
| 310 | 0.89 | 1.12 | 1.25 | 1.34 | 1.43 | 1.61 | 1.79 | 1.92 | 2.01 | 2.23 |
| 320 | 0.95 | 1.19 | 1.33 | 1.43 | 1.52 | 1.71 | 1.90 | 2.05 | 2.14 | 2.38 |
| 330 | 1.01 | 1.26 | 1.42 | 1.52 | 1.62 | 1.82 | 2.02 | 2.18 | 2.28 | 2.53 |
| 340 | 1.07 | 1.34 | 1.50 | 1.61 | 1.72 | 1.93 | 2.15 | 2.31 | 2.42 | 2.68 |
| 350 | 1.14 | 1.42 | 1.59 | 1.71 | 1.82 | 2.05 | 2.28 | 2.45 | 2.56 | 2.85 |
| 360 | 1.20 | 1.51 | 1.69 | 1.81 | 1.93 | 2.17 | 2.41 | 2.59 | 2.71 | 3.01 |
| 370 | 1.27 | 1.59 | 1.78 | 1.91 | 2.03 | 2.29 | 2.54 | 2.73 | 2.86 | 3.18 |
| 380 | 1.34 | 1.68 | 1.88 | 2.01 | 2.15 | 2.41 | 2.68 | 2.88 | 3.02 | 3.35 |
| 390 | 1.41 | 1.77 | 1.98 | 2.12 | 2.26 | 2.54 | 2.83 | 3.04 | 3.18 | 3.53 |
| 400 | 1.49 | 1.86 | 2.08 | 2.23 | 2.38 | 2.68 | 2.97 | 3.20 | 3.34 | 3.72 |
| 410 | 1.56 | 1.95 | 2.19 | 2.34 | 2.50 | 2.81 | 3.12 | 3.36 | 3.51 | 3.90 |
| 420 | 1.64 | 2.05 | 2.29 | 2.46 | 2.62 | 2.95 | 3.28 | 3.52 | 3.69 | 4.10 |
| 430 | 1.72 | 2.15 | 2.40 | 2.58 | 2.75 | 3.09 | 3.44 | 3.69 | 3.86 | 4.29 |
| 440 | 1.80 | 2.25 | 2.52 | 2.70 | 2.88 | 3.24 | 3.60 | 3.87 | 4.05 | 4.50 |
| 450 | 1.88 | 2.35 | 2.63 | 2.82 | 3.01 | 3.39 | 3.76 | 4.04 | 4.23 | 4.70 |
| 460 | 1.97 | 2.46 | 2.75 | 2.95 | 3.15 | 3.54 | 3.93 | 4.23 | 4.42 | 4.91 |
| 470 | 2.05 | 2.57 | 2.87 | 3.08 | 3.28 | 3.69 | 4.10 | 4.41 | 4.62 | 5.13 |
| 480 | 2.14 | 2.68 | 3.00 | 3.21 | 3.42 | 3.85 | 4.28 | 4.60 | 4.82 | 5.35 |
| 490 | 2.23 | 2.79 | 3.12 | 3.35 | 3.57 | 4.02 | 4.46 | 4.80 | 5.02 | 5.58 |
| 500 | 2.32 | 2.90 | 3.25 | 3.48 | 3.72 | 4.18 | 4.65 | 4.99 | 5.23 | 5.81 |
| 510 | 2.42 | 3.02 | 3.38 | 3.62 | 3.87 | 4.35 | 4.83 | 5.20 | 5.44 | 6.04 |
