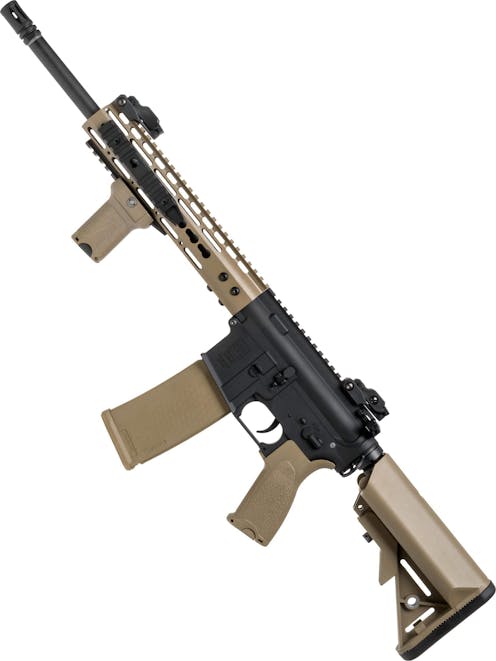

Specna Arms SA-E09 EDGE™ Carbine AEG

Specna Arms
Code:
£219.99
Was £259.99
Save £40.00
  • X-ASR MOSFET
  • Quick Change Spring
  • Zinc Aluminium & Steel

An Airsoft electric rifle made from Zinc Aluminium and Steel, with a wealth of up-rated internal parts to make a rifle that shoots as great as it looks. Part of Specna's EDGE series, this rifle features an X-ASR MOSFET and quick change spring system as standard.

Full description

Description

Another great AEG from Specna Arms, the SA-E09 is next in the EDGE series of AEGs which not only feature rock-solid externals, but have a wealth of up-rated internal parts that redefine "out of the box performance". Externally the replica is majoritively made of Zinc Aluminium and Alloy, which not only looks and feels great, but is a tough material that can stand up to abuse. Polymers where used (Pistol Grip and Stock) are a high density type which feel amazingly close to the real thing (in some cases better than the real thing) and ensure long-lasting performance and finish.

The front of the rifle features a 14mm CCW thread underneath the standard birdcage type flash hider, which is ready to accept suppressors, flash hiders, tracer units or anything you can throw at it. The rail system is a 10" KeyMod design with medium-length 20mm RIS sections pre-installed out of the box. This gives you the option of both rail systems depending on whether or not you would like to keep the rifle as light as possible. The rear of the weapon features a six position sliding Crane Stock which is also where the battery is housed, and contains a small Deans connector. The rifle is included with an adaptor to Mini Tamiya so again, you have two connection options. Also at the rear is an Ambidextrous Sling Plate which offers users the ability to connect a sling to either side of the weapon, making this ideal for both left and right handed players. There are QD sling sockets for a push-fit QD sling on the handguard and stock, to further your sling setup options. On top of the full length top 20mm rail are a set of flip-up ironsights which can be removed, or used in conjunction with a main sight. They are a flip-up style, and pressing the button on the rear will flip them up into place.

Internally, this replica features the ORION gearbox, which is a reinforced update of the Version 2 design we all know and love. Other internal components include: a reinforced Piston with full steel rack, Aluminium sealed Air Nozzle, Aluminium doubled-sealed Cylinder head, Aluminium double sealed Piston Head, Steel Gears, 8mm Bearings, 6.03mm precision inner barrel and a GATE X-ASR MOSFET, which will protect trigger components and promote longer life. The SA-E09 EDGE features the ESA™ quick change spring system, which makes changing your main spring a matter of seconds once the gearbox is removed. Fantastic for players who like to float between a standard AEG and DMR muzzle velocities.

Included in the box are two 125rnd Mid Cap Magazines, both made from Polymer and designed loosely around the P-Mag design, with tiny little Specna logos as a tessellating pattern in the background. Also included is a 20mm Foregrip, Deans to Mini Tamiya converter, User Manual and Sticker Set.

This rifle is ideal for those looking for an upgrade on their CYMA/Combat Machine AEGs, or those who need their external build qualities to be top notch. Considering the list of better-than-standard internal parts, this makes it great for those who just want their rifle to shoot great too. There's something for everyone with Specna Arms.

Features

  • Part of Specna' EDGE series
  • Zinc Aluminium & Steel externals
  • ESA™ quick change spring
  • GATE X-ASR MOSFET
  • ORION gearbox
  • Rear wired
  • 6.03mm precision inner barel
  • Hologram autheticated
  • Mini Deans / Mini Tamiya connector
  • 10" KeyMod rail system
  • Rotary Hop Up design
  • Full length top 20mm rail
  • Flip up ironsights
  • Ambidextrous sling plate
  • QD sling sockets on handguard
  • QD sling sockets on stock
  • 14mm CCW threaded barrel
  • Six position sliding Crane Stock
  • Medium 20mm rail pieces included
  • 2 x 125rnd Mid Caps included
  • Small Deans to Small Tamiya adapter
  • 20mm Foregrip included
  • Reinforced Piston w/ Steel rack
  • Aluminium sealed Nozzle
  • Aluminium double sealed Cylinder Head
  • Aluminium double sealed Piston Head
  • Steel Gears
  • 8mm Bearings

Package Includes

  • SA-E09 Edge Carbine
  • 2 x 125rnd Mid Cap Magazines
  • Mini Deans to Mini Tamiya Adapter
  • 20mm Foregrip
  • User Manual
  • Sticker Set

Recommended Battery

For this rifle we recommend a 7.4v LiPo with Tamiya or Deans connector in stick or crane stock configuration.

Special Instructions

The externals of the replica are metal where they would be on the real world gun. This includes things like the outer barrel, handguard, and receiver. If a real world gun has polymer parts then the gun will still be marked as full metal externals, examples of this would be an M4, where the Stock and Pistol grip are always made from Polymer.

Specification

General

Weapon Construction External
Weapon Type
Assault Rifle
Over 18 Only Icon
Over 18
Yes
Icon UKARA - United Kingdom Airsoft Retailer Association
Defence / UKARA Required
Yes, No,
FPS Icon
FPS (Feet Per Second), using 0.20g BB
Approx. 319fps ± 10%, using 0.20g BB
Site Legal Icon
Site Legal, using 0.20g BB
Yes
Package
Included Items
  • Foregrip
  • Magazine x 2
  • Stickers
  • Deans to Mini-Tamiya Connector
Skill Level Icon
User Skill Level
Regular Player

Weight and Dimension

Weight KG Icon
Weight (KG)
Approx. 2.63kg
Weapon Length Collapsed
Length (Collapsed)
80cm
Weapon Length Extended
Length (Extended)
88cm

Construction

Colour Wheel Greyscale
Primary Colour
Black,
Half-Tan
Half-Tan
,
Construction Icon
Construction
Zinc Aluminium, Steel, Alloy and Polymer
Weapon Construction External
External Construction
Polymer
Alloy
Stamped Steel
Aluminium
Gearbox Icon
Internal Construction
Polymer
Alloy

Weapon Specific

Power Source Icon
Powered By
Electric
Blowback Icon
Blowback
None
Weapon Platform
M4 / AR-15 / M16
Magazine Style Icon
Magazine Style
STANAG
Fire Select Icon
Fire Selector
PatrolBase | Fire Select Safe
Safe
Patrol Base | Fire Select - Semi Automatic
Semi Automatic
Patrol Base | Full Automatic
Full Automatic
Weapon Safety Features Icon
Safety Features
Trigger Lock
Shooter Configuration Icon
Shooter Configuration
Right Handed
Weapon Configuration Icon
Weapon Configuration
Standard
Weapon Scale Icon
Weapon Scale
1:1
Suggested BB Weight
0.25g

Hop-Up

Hop-Up Unit Icon
Hop-Up Unit
Yes
Hop-Up Unit Adjuster Icon
Hop-Up Adjuster
Rotary
Hop-Up Unit Location Icon
Hop-Up Location
Behind mock bolt plate when charging handle to the rear

Furniture

Weapon Furniture Icon
Furniture
  • Railed Handguard
  • Railed Receiver
  • Sliding Stock
  • Ambidextrous Sling Plate
Rail System Icon
Rail System
20mm RIS / RAS , KeyMod ,
Icon Stock Positions
Stock Setting
Sliding
Weapon Length Extended
Stock Positions
6 Position
Sight Type Icon
Sight Type
Iron Sights
Sling Plate Icon
Sling Options
Buffer Plate , Stock , Handguard ,

Barrel

Icon Thread Type
Outer Barrel Thread Type
Male
Icon Thread Direction
Outer Barrel Thread Direction
CCW (Counter Clockwise)
Outer Barrel Thread Size
14mm
Inner Barrel Diameter
6.03mm

Magazine Specific

Magazine Type
Medium Capacity
Magazine BB Capacity
Approx. 125 Rounds
Magazine BB Fill Method
Speed Loader
Magazine BB Fill Location
Top

Electric Gun Specific Information

Gearbox
Gearbox Icon
Gearbox Version
V2 Gearbox
Wiring Icon
Gearbox Wiring
Rear Wired
Spring Change Icon
Gearbox Quick Change Spring
Yes
Battery Specific
Battery Connector
Patrol Base | Icon | Mini Tamiya
Mini Tamiya
Compatible Battery
Compatible Battery Type
Li-Po
Compatible Battery Configuration
Crane
Compatible Battery Voltage
7.4v

Product Testing Data

Notepad Icon
Test Description
319FPS
Notepad Icon
Tested Using
ASG Blaster 0.20g BBs
Notepad Icon
Test Date
09/04/19

Related videos

Specna Arms EDGE Breakdown
Take it to the edge with specna arms

Size guide

Joule Charts

Special Instructions

These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

Tap the tabs below to open the relevant chart for your replica.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
325 0.98 1.23 1.37 1.47 1.57 1.77 1.96 2.11 2.21 2.45
328 1.00 1.25 1.40 1.50 1.60 1.80 2.00 2.15 2.25 2.50
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
335 1.04 1.30 1.46 1.56 1.67 1.88 2.09 2.24 2.35 2.61
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
345 1.11 1.38 1.55 1.66 1.77 1.99 2.21 2.38 2.49 2.76
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
355 1.17 1.46 1.64 1.76 1.87 2.11 2.34 2.52 2.63 2.93
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90
420 1.64 2.05 2.29 2.46 2.62 2.95 3.28 3.52 3.69 4.10
430 1.72 2.15 2.40 2.58 2.75 3.09 3.44 3.69 3.86 4.29
440 1.80 2.25 2.52 2.70 2.88 3.24 3.60 3.87 4.05 4.50
450 1.88 2.35 2.63 2.82 3.01 3.39 3.76 4.04 4.23 4.70
460 1.97 2.46 2.75 2.95 3.15 3.54 3.93 4.23 4.42 4.91
470 2.05 2.57 2.87 3.08 3.28 3.69 4.10 4.41 4.62 5.13
480 2.14 2.68 3.00 3.21 3.42 3.85 4.28 4.60 4.82 5.35
490 2.23 2.79 3.12 3.35 3.57 4.02 4.46 4.80 5.02 5.58
500 2.32 2.90 3.25 3.48 3.72 4.18 4.65 4.99 5.23 5.81
510 2.42 3.02 3.38 3.62 3.87 4.35 4.83 5.20 5.44 6.04
