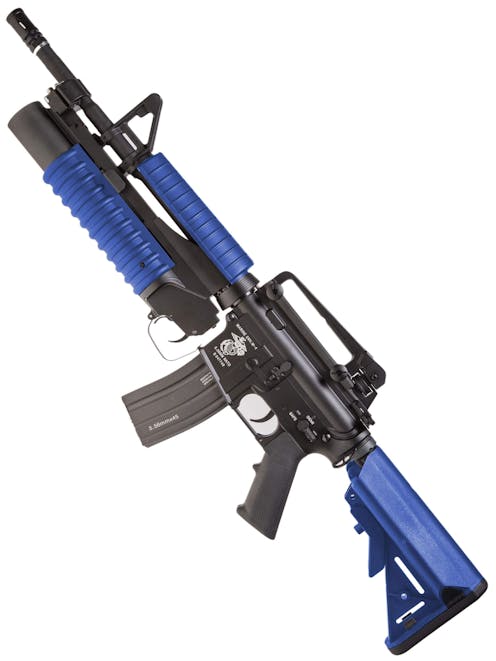

Specna Arms SA-G01 Carbine With M203 Launcher

Specna Arms
Code:
254.99
Was 312.99
Save 58.00

A Zinc and Aluminium constructed M4 platform AEG with a rock-solid external construction, and an included barrel-mounted underslung M203 grenade launcher for maximum support effectiveness.

Full description

Description

This Airsoft electric powered M4 platform rifle is not only a solid replica with a wealth of uprated internals parts, but comes included with an M203 short-style grenade launcher attached to the outer barrel out of the box. This is great for those who are doing a Desert Storm/Gulf War/Iraq War loadout, or anything to do with modern American armed forces.

The externals of the replica are done to a very high standard using Zinc and Aluminium Alloys for the majority, Steel for the finer control parts such as fire controls, and Polymer where you would expect such as the pistol grip and stock. The use of high quality metals around the externals results in a rigid construction which feels menacing in the hands. The carry handle is removable to reveal a 20mm top rail for your sights and optics, and the flash hider can be unscrewed to make sure of the 14mm CCW thread underneath, ideal for your suppressors and muzzle devices. The six position sliding Crane Stock at the rear is where the battery is housed, and can be adjusted for length to suit and size of operator. It features a pair of physical sling loops and an ambidextrous sling plate for attaching a sling to either side of the RIF. The magazine included in the box is a 300rnd high capacity clockwork wound design.

Internally, this replica benefits from a whole host of parts which would be unheard of in other standard out-of-the-box RIFS, such as: reinforced Steel Gears, Steel Spring Guide, Polycarbonate Piston with Steel teeth, Aluminium sealed Piston Head, Metal Cylinder Head and sealed Metal Nozzle also. It also boasts the ESA™ quick change spring system which means your main spring can be accessed via the Buffer Tube, making spring changes lightning quick, and super easy to complete. All-in-all the process should take around 30 seconds, it's really that easy.

Features:

  • Built by Specna Arms
  • Based off the standard M4A1 used by the US Army
  • Electric powered Airsoft AEG
  • Removable carry handle to reveal a top 20mm RIS / RAS rail for sights and scopes
  • 14mm CCW threaded outer barrel for attaching Suppressors and Tracer Units
  • Rear ambidextrous sling plate
  • M203 Grenade Launcher included
  • D-Ring held removable handguard
  • Adjustable Hop-Up unit for range and accuracy
  • Metal high capacity Hi-Cap wheel wound 300rnd Magazine
  • Adjustable Crane Style Stock
  • ESA™ quick change spring system
  • Compatible with Ni-Mh, LiPo, and LiFe batteries
  • Batteries stored in the stock
  • Rear wired Gearbox System
  • 8mm Ball Bearings with steel thread-wheels
  • Type 2 cylinder
  • Metal hop-up unit
  • Mock charging handle
  • Finger ridged pistol grip ergonomic design
  • Compatible with a wide range of Airsoft STANAG Magazine
  • RoHS Compliant
  • Wobble free, heavy duty construction
  • Branded:
    • 'MARINE ENV.M-4'
    • '5.56MM NATO'
    • 'S047749'
    • SPECNA ARMS INDUSTRIES'
    • 'CAGE: 68407'
    • 'PART# 49672380'
    • 'SERIAL# SA2689'

Package Includes:

  • SA-G01 Carbine With M203 Launcher
  • M203 Grenade Launcher
  • 300rnd High Cap Mag
  • Testing Certificate
  • Id Lanyard
  • Sticker Set

Specification

General

Weapon Construction External
Weapon Type
Assault Rifle
Over 18 Only Icon
Over 18
Yes
Icon UKARA - United Kingdom Airsoft Retailer Association
Defence / UKARA Required
Yes, No,
FPS Icon
FPS (Feet Per Second), using 0.20g BB
Approx. 310fps ± 10%, using 0.20g BB
Site Legal Icon
Site Legal, using 0.20g BB
Yes
Screwdriver Icon
Pre-Built
Yes
Package
Included Items
  • Magazine
  • Certificate of Authenticity
  • Stickers
  • ID Lanyard
  • M203 Grenade Launcher
Skill Level Icon
User Skill Level
Regular Player

Weight and Dimension

Weight KG Icon
Weight (KG)
Approx. 3.6kg
Weapon Length Collapsed
Length (Collapsed)
80cm
Weapon Length Extended
Length (Extended)
88cm

Construction

Colour Wheel Greyscale
Primary Colour
Black
Two Tone Icon
Pre Two-Toned
No
Construction Icon
Construction
Zinc & Aluminium Alloy, Steel & Polymer
Weapon Construction External
External Construction
Polymer
Alloy
Aluminium
Steel
Zinc
Gearbox Icon
Internal Construction
Polymer
Alloy

Weapon Specific

Power Source Icon
Powered By
Electric
Blowback Icon
Blowback
None
Weapon Platform
AR, M4 / AR-15 / M16,
Magazine Style Icon
Magazine Style
STANAG
Fire Select Icon
Fire Selector
PatrolBase | Fire Select Safe
Safe
Patrol Base | Fire Select - Semi Automatic
Semi Automatic
Patrol Base | Full Automatic
Full Automatic
Weapon Safety Features Icon
Safety Features
Trigger Lock
Shooter Configuration Icon
Shooter Configuration
Right Handed
Weapon Configuration Icon
Weapon Configuration
Standard
Weapon Scale Icon
Weapon Scale
1:1
Suggested BB Weight
0.25g

Hop-Up

Hop-Up Unit Icon
Hop-Up Unit
Yes
Hop-Up Unit Adjuster Icon
Hop-Up Adjuster
Gear
Hop-Up Unit Location Icon
Hop-Up Location
Behind Mock Bolt Cover, when Charging Handle Pulled to the Rear.

Furniture

Weapon Furniture Icon
Furniture
  • Railed Receiver
  • Carry Handle
  • Sliding Stock
  • Threaded Outer Barrel
  • Ambidextrous Sling Plate
  • Grenade Launcher
Rail System Icon
Rail System
20mm RIS / RAS
Icon Stock Positions
Stock Setting
Sliding
Weapon Length Extended
Stock Positions
6 Position
Sight Type Icon
Sight Type
Iron Sights
Sling Plate Icon
Sling Options
Buffer Plate

Barrel

Icon Thread Type
Outer Barrel Thread Type
Male
Icon Thread Direction
Outer Barrel Thread Direction
CCW (Counter Clockwise)
Outer Barrel Thread Size
14mm

Magazine Specific

Magazine Type
High Capacity, AEG,
Magazine BB Capacity
Approx. 300 Rounds
Magazine BB Fill Method
Fill Window
Magazine BB Fill Location
Top

Electric Gun Specific Information

Gearbox
Gearbox Icon
Gearbox Version
V2 Gearbox
Wiring Icon
Gearbox Wiring
Rear Wired
Spring Change Icon
Gearbox Quick Change Spring
Yes
Battery Specific
Battery Connector
Patrol Base | Icon | Mini Tamiya
Mini Tamiya
Compatible Battery
Compatible Battery Type
Li-Po
Compatible Battery Configuration
Crane
Compatible Battery Voltage
7.4v

Product Testing Data

Notepad Icon
Test Description
310FPS
Notepad Icon
Tested Using
ASG Blaster 0.20g BBs
Notepad Icon
Test Date
15/05/19

Detailed Power Tests

FPS
FPS, using 0.20g BB
Approx. 310fps, using 0.20g BB

Size guide

Joule Charts

Special Instructions

These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

Tap the tabs below to open the relevant chart for your replica.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
325 0.98 1.23 1.37 1.47 1.57 1.77 1.96 2.11 2.21 2.45
328 1.00 1.25 1.40 1.50 1.60 1.80 2.00 2.15 2.25 2.50
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
335 1.04 1.30 1.46 1.56 1.67 1.88 2.09 2.24 2.35 2.61
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
345 1.11 1.38 1.55 1.66 1.77 1.99 2.21 2.38 2.49 2.76
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
355 1.17 1.46 1.64 1.76 1.87 2.11 2.34 2.52 2.63 2.93
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90
420 1.64 2.05 2.29 2.46 2.62 2.95 3.28 3.52 3.69 4.10
430 1.72 2.15 2.40 2.58 2.75 3.09 3.44 3.69 3.86 4.29
440 1.80 2.25 2.52 2.70 2.88 3.24 3.60 3.87 4.05 4.50
450 1.88 2.35 2.63 2.82 3.01 3.39 3.76 4.04 4.23 4.70
460 1.97 2.46 2.75 2.95 3.15 3.54 3.93 4.23 4.42 4.91
470 2.05 2.57 2.87 3.08 3.28 3.69 4.10 4.41 4.62 5.13
480 2.14 2.68 3.00 3.21 3.42 3.85 4.28 4.60 4.82 5.35
490 2.23 2.79 3.12 3.35 3.57 4.02 4.46 4.80 5.02 5.58
500 2.32 2.90 3.25 3.48 3.72 4.18 4.65 4.99 5.23 5.81
510 2.42 3.02 3.38 3.62 3.87 4.35 4.83 5.20 5.44 6.04
