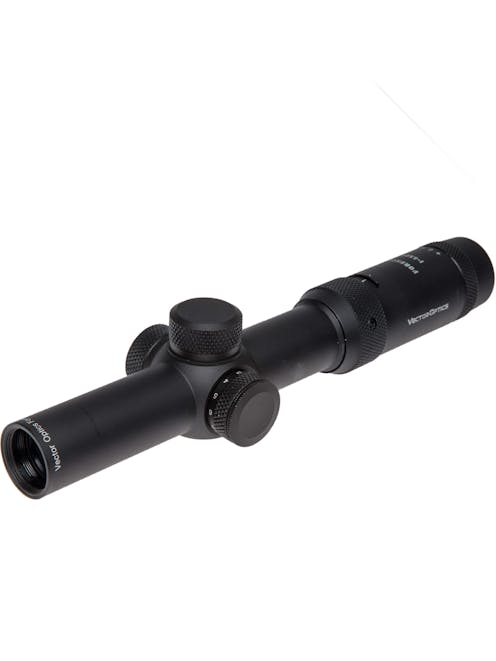

Vector Optics Forester 1-5x24IR

Vector Optics
Code: SCOC-03 1-5x24ir
  • Fog & Shock Proof
  • 1/2 MOA Adjustment
  • Aircraft Grade Aluminium

A Short Dot style optic from Vector Optics which provides a clear and crisp image inside a 30mm tube, offering 1-5x magnification and a clean, easy to use crosshair with an illuminated point. An included set of scope mounts means you can mount this optic straight onto your Airsoft Gun/Firearm.

Full description


This compact Short-Dot style optic is a deceptively potent scope which offers an incredibly crisp and edgeless image with excellent eye relief, and with precise turret adjustments of 1/2 MOA (1/2 inch adjustment at 100 yards) is a surgical tool when in the right hands. The windage and elevation adjustment do not require tools to operate, simply unscrew the protective cap and make adjustments by listening to the audible click. These turrets offer a maximum of 60 MOA (60 inches of adjustment at 100 yards). The magnification is easy to use and has a cutout to observe what level of magnification you're currently set to. Behind this ring is a focus adjust to help adjust the image in the scope to your eye. An illuminated reticule function provides a bright red dot in the center of your crosshair, and can be set to 11 different brightness levels once a CR2032 battery has been installed underneath the adjustment dial. Please note that a T15 Torx Bit is required to install the included Scope Rings as one is not supplied. Using any other kind of Hex Key/Screwdriver could cause damage.


  • 6061 T6 Aircraft Grade Aluminium
  • Etched Glass Reticule
  • Short Dot Style Optic
  • Nitrogen Purged Fogproof
  • O-Ring Sealed Waterproof
  • 1-5x Optical Magnification
  • 24mm Objective Lens
  • Fully Multi Coated Lens
  • 73.3-19.9ft @ 100yds FOV
  • 95mm-115mm Eye Relief
  • VFD-2 Reticule
  • 30mm Tube
  • 1/2 MOA Adjustment
  • 60 MOA Max Adjustment
  • Parallax Free 50yds
  • Illuminated Reticule
  • 11 Brightness Levels
  • CR2032 Required
  • T15 Torx Bit Required

Package Includes

  • Vector Optics Forester 1-5x24IR
  • 30mm Scope Rings
  • Lens Cleaning Cloth
  • User Manual

Special Instructions

Please note that the included Scope Rings require a T15 Torx Bit to be installed. Please do not use other Hex Keys / Screwdrivers as they will cause damage.



Sight Type Icon
Sight Type
Package Includes
Instruction Manual, Scope Rings, Cleaning Cloth, Lens Caps,

Weight and Dimension

Product Length
Approx. 26.5cm
Product Width
Approx. 3cm
Weight KG Icon
Weight (KG)
Approx. 0.415kg


Colour Wheel Greyscale
Item Colour
Construction Icon
6061 T6 Aircraft Grade Aluminium

Sight Specific

Sight Magnification
1x, 2x, 3x, 4x, 5x,
Sight Adjustment Adjustments
Windage, Elevation, Magnification, Illumination, Focus,
Sight Zero Adjuster Method
Tool-less Adjustment
Sight Zero Location
Top, Right,
Sight Mount Options
Scope Rings / Scope Mounts
Sight Objective Lens Diameter
Reticle Type
Fine Crosshair


Sight Fogproof
Sight Waterproof

Telescopic Specific

Sight Mount Rings Included
Scope Tube Diameter

Holographic Specific

Holographic Control Location

Illuminated Sight Specific

Illuminated Reticle
Illuminated Reticle Levels
Illuminated Reticle Colours
Battery Type
