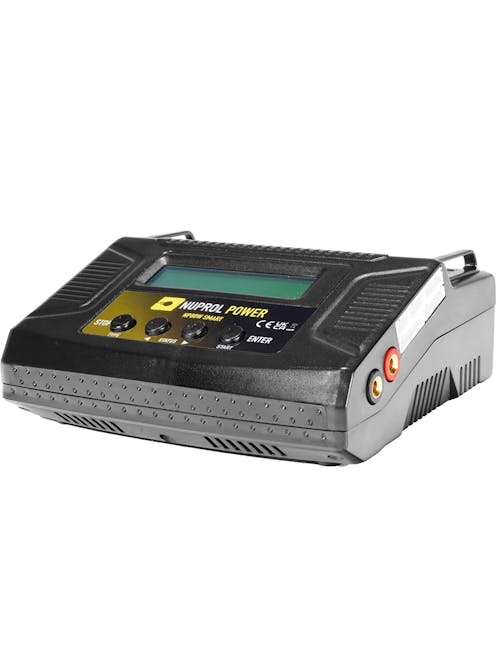

NUPROL 80W Smart Charger

NUPROL
Code: NPC-06
£69.99
  • Smart Charging System
  • For LiPo / NiMh / LiFe
  • LiLo / LiHv / NiCd / PB

Built by NUPROL as part of their Power range this is a high quality charger designed to charge LiPo, NiMh, LiFe, LiHv, LiLo, NiCd and PB batteries, all of the most common types of battery used in Airsoft replicas, as well as some rarer types used in RC Car racing.

Full description

Description

The charger itself is a smart charger, meaning that the charger automatically charges and cuts off when the battery is full. Some cheaper low-end chargers do not support this meaning you have to work out how long to charge for, with this charger you can plug it in and not have to worry about when the battery is full, as the charger will cut off the power supply when it is full to prevent any damage to the batteries.

The charger features an LCD display screen which allows you to configure the charger to your perfect settings, as well as see information about the battery as it charges and any errors which may occur. The charger itself has many high end features, with the ability to charge a wide range of battery and support many operations required to maintain them as well.

The charger features an internal lithium battery balancer which allows the charger to detect individual cell voltage so there is no need to connect an external balancer before charging, and automatically stops balance charging each individual cell when they are full or if an abnormal cell voltage is detected. The charger has the ability to detect the delta-peaks of the battery whilst they are being charged, meaning that the charger will automatically stop once the battery is full, or the charge limit is exceeded for that battery type. A time limit can also be set to prevent the charger infinitely charging.

The charger has an internal memory meaning that settings and options can be stored on the unit to save time entering information next time you come to charge your battery. Data for up to five battery can be stored inside the units internal memory and can be recalled easily without the use of any specialist program.

The charger comes with a selection leads and cables for charging many configurations of battery. At the most basic level the charger outputs to a deans connector, but if your battery does not come with a deans connector the set comes with adaptors to allow connection to JST, Mini JST, Mini Tamiya and even crocodile clips and old-school 3.5mm power jacks. There is also a side port allowing the connection of balance cables for LiPo and LiFe battery, with an adaptor which allows the connection of battery which have between 2 and 6 cells.

The charger comes with both an input and output for crocodile clips, meaning you can buy an aftermarket car battery or large cell battery and charge it using the charger, then on away days or at outdoor sites you can then power the charger with that battery and charge your batteries in the field or in the safe zone at your local site.

This charger is perfect for any Airsoft skirmisher who is looking for a charger which does absolutely everything, or for those who also own an RC car or plane and want a charger which can cross both hobbies.

Specification

General

Parts & Accessories Type
Battery Charger
Over 18 Only Icon
Over 18
No
Patrol Base - Warning Icon
Warnings
Li-Po - Never Leave Charging Unattended
Li-Po - Charge in a Fire Safe Area

Weight and Dimension

Weight KG Icon
Weight (KG)
Approx. 0.49kg
Product Height
Approx. 6.09cm
Product Length
Approx. 13.5cm
Product Width
Approx. 11.2cm

Construction

Colour Wheel Greyscale
Item Colour
Black
Construction Icon
Construction
Polymer shell with LCD display screen
Material Icon
Material
Polymer

Charger Specific

Battery Type
  • Ni-Mh
  • Li-Po
  • Li-Fe
  • Ni-cd
  • LiHV
  • Pb
  • Li-Lo
Battery Connector
  • Patrol Base | Icon | Deans
    Deans
  • Deans To Mini Tamiya
    Deans To Mini Tamiya Adaptor
  • 3 Pin Balance Cable [7.4v]
    3 Pin Balance Cable [7.4v]
  • 4 Pin Balance Cable [11.1v]
    4 Pin Balance Cable [11.1v]
  • 5 Pin Balance Cable [14.8v]
    5 Pin Balance Cable [14.8v]
  • 6 Pin Balance Cable [18.5v]
    6 Pin Balance Cable [18.5v]
  • 7 Pin Balance Cable [22.2v]
    7 Pin Balance Cable [22.2v]
  • Deans to JST Connector
    Deans to JST Connector
  • Deans to mini-JST Connector
    Deans to mini-JST Connector
  • Crocodile Clips

Further Information

Features

  • Built by NUPROL as part of their POWER Range
  • High quality smart charger system
  • Charges LiPo, LiFe, LiOn, LiHV, LiLo, NiMh, NiCd and PB batteries
  • Charges every type of battery you'll ever need for Airsoft
  • Internal lithium battery balancer
  • Individual cell balancing and monitoring
  • Delta-peak sensitivity to protect the battery and charger
  • Automatic current charging limit
  • Capacity limiter
  • Optional temperature threshold detection
  • Charge time limiter
  • Input power monitoring
  • Data storage / load thanks to on-board memory
  • Cyclic charging and discharging
  • Adaptors for a wide range of battery connector types
  • Supports 2-6 cell LiPo and LiFe battery
  • Internal cooling fan
  • Internal power supply, with no need for external power brick
  • Large easy to use buttons
  • Visual LCD display screen
  • Supports 100-240 AC input
  • Supports 11-18v DC input
  • Charge power of 80W
  • Max discharge power of 10 watt
  • 0.1A - 6.0A charge current range
  • Suppots PB battery betwen 2v - 20v
  • Detailed warning and error display

Package Includes

  • 80W Smart Charger
  • Plug Socket Power Cable
  • Crocodile Clip Power Cable
  • 7 Pin Balance Port to 2S - 6S Balance Port Connector
  • Power Output to Deans Cable
  • Deans to Crocodile Clips Adaptor
  • Deans to JST Connector
  • Deans to mini-JST Connector
  • Deans to Mini Tamiya Adaptor

Special Instructions

Please ensure that when charging battery you always do so in a fire safe environment, such as in a battery charging bag.

Do not charge any damaged batteries, as this can lead to further damage. Examples of this are: Swollen / puffy batteries, damaged wires, or fully discharged batteries.

When charging batteries with a balance cable always ensure they are connected to both the balance port and the power output.

Please ensure you read ALL documentation before using this charger.

For usage instructions please refer to the manual included with the charger, as this covers every type of battery which can be used with the charger.

Error Meaning
REVERSE POLARITY Incorrect polarity connected.
CONNECTION BREAK The battery's wires are disconnected or damaged.
SHORT ERR There has been a short circuit, check for damaged wires or touching contacts.
INPUT VOL ERR The voltage coming into the charger is incorrect, or too low.
VOL SELECT ERROR The wrong voltage has been selected for the attached battery.
BREAK DOWN The charger has malfunctioned. Please get in touch with us for further assistance.
BATTERY CHECK LOW VOLTAGE The battery's voltage is lower than the option selected. This can either mean the incorrect voltage has been selected or the battery is dead.
Error Meaning
BATTERY CHECK HIGH VOLTAGE The voltage is higher than which is set, check the number of cells in the battery pack.
BATTERY CHECK CELL LOW VOL Voltage of a single cell in the battery pack is too low. This usually means the battery is damaged.
BATTERY CHECK CELL HIGH VOL Voltage of a single cell in the battery pack is too high. This usually means the battery is damaged.
BATTERY VOLERR CELL CONNECT A connection cannot be made to one of the cells. Please check the battery and the connecting cables.
TEMP OVER ERR The temperature of the charger is too high, and will need to be cooler before it can begin again.
CONTROL FAILURE The charger has malfunctioned. Please get in touch with us for further assistance.

Size guide

Airsoft Battery should only be charged with the chargers as they are specifically designed to work with the specific voltages required by the battery.

Different battery types have different chemical configurations, and require certain chargers to charge them. Charging a battery with the wrong charger can cause damage to the battery and charger, and can cause fires and further damage. Please ensure that before charging you double check that you are using the correct charger.

If your charger supports multiple battery types always ensure that it is on the correct settings before starting the charge.

We always recommend charging LiPos and other batteries in a charging bag.

If you are unsure of what battery or charger you have please get in touch with us via the Contact Us Page.
