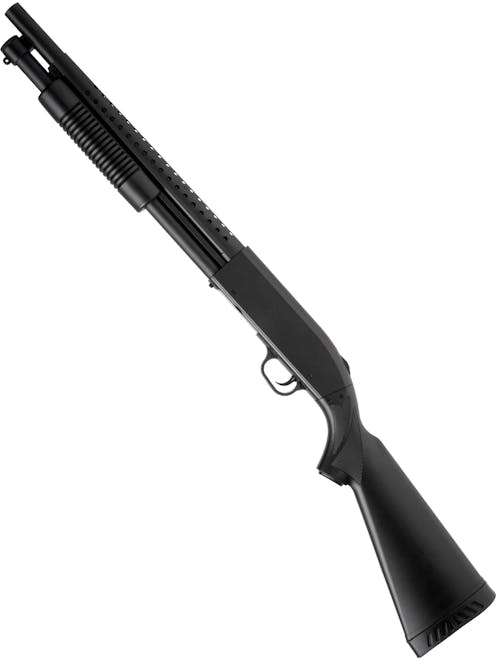

AGM MP003 Single Shot Shotgun

AGM
Code: …
£24.99
  • Single shot
  • Pump Action
  • Magazine Fed

An ideal extremely low budget skirmish gun, or a good excuse to have a laugh in the back yard, The AGM MP003B is probably the cheapest Airsoft replica you could take to a skirmish and have any hope of getting hits with. Featuring decent FPS out of the box,  1x magazine in the package and an adjustable hop, the MP003B is ready when you are!

Full description

Help
Size guide

Description

This Airsoft Shotgun is single shot Pump Action, which means that a single BB is loaded into the chamber each time you pump the Shotgun. The Shotgun is fed by a proprietary magazine which is loaded either by hand or using the included Speedloader, and then inserted into the gun. It has a Trigger Lock safety near the Trigger which will prevent the gun from firing.

There is an external Slider-Type HOP Adjustment on the offside of the Receiver, which can be used to add backspin to your BBs to potentially increase range and performance when coupled with the right BB and settings. A front and rear Sling Loop allows you to make use of the included sling (or your own), which makes it much easier to use as a backup or to quick-switch to a sidearm. The pistol grip-pump configuration of this shotgun means it would make a great sidearm, whilst still larger than a handgun it can be carried in a back scabbard, if you are cool enough to pull that off!

Included in the box is a Speedloader to aid in loading the magazine. To make use of the Speedloader, open the fill window at the bottom of the speedloader, fill it with BBs, close the window, press the release button for the plunger and press on the plunger to start forcing BBs through. If you're looking for a very low-cost starter gun, something as a backup for skirmish day, a new and challenging CQB gun, or just something to shoot in the garden / perform training with, then the AGM MP003B Spring Action Shotgun is probably what you're looking for.

Features

  • Pump Action Shotgun
  • Single Barrel Design
  • Magazine Fed
  • No Pump-Lock
  • Trigger Lock Safety
  • Stockless Design
  • Front & Rear Sling Loops
  • 320FPS w/ 0.2g BB
  • Alloy Heat Shield
  • External HOP Adjust
  • Total Weight: 1.5kg
  • Perfect Backup/CQB Gun
  • Easy To Carry w/ Another Gun
  • Speedloader Included
  • Textured Pump Handle
  • Ideal For Beginners / Training


    Package Includes

    • AGM MP003B Spring Action Shotgun
    • 1x 20rnd Magazine
    • Speedloader

    Specification

    General

    Weapon Construction External
         Weapon Type
    Shotgun
    Over 18 Only Icon
         Over 18
    Yes
    Icon UKARA - United Kingdom Airsoft Retailer Association
         Defence / UKARA Required
    Yes, No,
    FPS Icon
         FPS (Feet Per Second), using 0.20g BB
    Approx. 320fps ± 10%, using 0.20g BB
    Site Legal Icon
         Site Legal, using 0.20g BB
    Yes
    Screwdriver Icon
         Pre-Built
    Yes
    Package
         Included Items
    • Magazine
    • Speed Loader
    Skill Level Icon
         User Skill Level
    Starter, Regular Player,

    Weight and Dimension

    Weight KG Icon
         Weight (KG)
    Approx. 1.5kg
    Weapon Length Collapsed
         Length (Collapsed)
    65cm
    Weapon Length Extended
         Length (Extended)
    65cm

    Construction

    Colour Wheel Greyscale
         Primary Colour
    Black
    Construction Icon
         Construction
    Metal and Polymer
    Weapon Construction External
         External Construction
    Polymer
    Alloy
    Gearbox Icon
         Internal Construction
    Polymer
    Alloy

    Weapon Specific

    Power Source Icon
         Powered By
    Spring
    Blowback Icon
         Blowback
    None
    Weapon Platform
    Shotgun
    Magazine Style Icon
         Magazine Style
    Magazine
    Fire Select Icon
         Fire Selector
    None
    Weapon Safety Features Icon
         Safety Features
    Trigger Lock
    Shooter Configuration Icon
         Shooter Configuration
    Right Handed
    Weapon Configuration Icon
         Weapon Configuration
    Pump Action
    Weapon Scale Icon
         Weapon Scale
    1:1
    Suggested BB Weight
    0.2g

    Hop-Up

    Hop-Up Unit Icon
         Hop-Up Unit
    Yes
    Hop-Up Unit Adjuster Icon
         Hop-Up Adjuster
    Slider
    Hop-Up Unit Location Icon
         Hop-Up Location
    External adjuster on ejection port

    Furniture

    Weapon Furniture Icon
         Furniture
    • Textured Pistol Grip
    • Ridged Pump
    Sight Type Icon
         Sight Type
    gutter sight
    Sling Plate Icon
         Sling Options
    Lanyard Loop

    Magazine Specific

    Magazine BB Capacity
    Approx. 20 Rounds
    Magazine BB Fill Method
    Speed Loader
    Magazine BB Fill Location
    Top

    Shotgun Specific

    Shotgun Load Style Icon
         Shotgun Load Style
    Magazine
    Shotgun Barrel Configuration Icon
         Barrel Configuration
    Single Barrel

    Product Testing Data

    Notepad Icon
         Test Description
    320 fps +/- 10%
    Notepad Icon
         Tested Using
    0.2g ASG BLASTER
    Notepad Icon
         Test Date
    2/8/21

    Detailed Power Tests

    FPS
    FPS, using 0.20g BB
    Approx. 320fps, using 0.20g BB

    Size guide

    Joule Charts

    Special Instructions

    These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

    FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

    Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

    Tap the tabs below to open the relevant chart for your replica.

    Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

    Velocity BB Weight (Grams)
    FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
    250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
    260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
    270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
    280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
    290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
    300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
    310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
    320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
    325 0.98 1.23 1.37 1.47 1.57 1.77 1.96 2.11 2.21 2.45
    328 1.00 1.25 1.40 1.50 1.60 1.80 2.00 2.15 2.25 2.50
    330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
    335 1.04 1.30 1.46 1.56 1.67 1.88 2.09 2.24 2.35 2.61
    340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
    345 1.11 1.38 1.55 1.66 1.77 1.99 2.21 2.38 2.49 2.76
    350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
    355 1.17 1.46 1.64 1.76 1.87 2.11 2.34 2.52 2.63 2.93
    360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01

    Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

    Velocity BB Weight (Grams)
    FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
    250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
    260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
    270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
    280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
    290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
    300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
    310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
    320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
    330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
    340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
    350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
    360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
    370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
    380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
    390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
    400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
    410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90

    Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

    Velocity BB Weight (Grams)
    FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
    250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
    260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
    270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
    280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
    290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
    300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
    310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
    320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
    330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
    340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
    350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
    360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
    370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
    380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
    390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
    400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
    410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90
    420 1.64 2.05 2.29 2.46 2.62 2.95 3.28 3.52 3.69 4.10
    430 1.72 2.15 2.40 2.58 2.75 3.09 3.44 3.69 3.86 4.29
    440 1.80 2.25 2.52 2.70 2.88 3.24 3.60 3.87 4.05 4.50
    450 1.88 2.35 2.63 2.82 3.01 3.39 3.76 4.04 4.23 4.70
    460 1.97 2.46 2.75 2.95 3.15 3.54 3.93 4.23 4.42 4.91
    470 2.05 2.57 2.87 3.08 3.28 3.69 4.10 4.41 4.62 5.13
    480 2.14 2.68 3.00 3.21 3.42 3.85 4.28 4.60 4.82 5.35
    490 2.23 2.79 3.12 3.35 3.57 4.02 4.46 4.80 5.02 5.58
    500 2.32 2.90 3.25 3.48 3.72 4.18 4.65 4.99 5.23 5.81
    510 2.42 3.02 3.38 3.62 3.87 4.35 4.83 5.20 5.44 6.04
