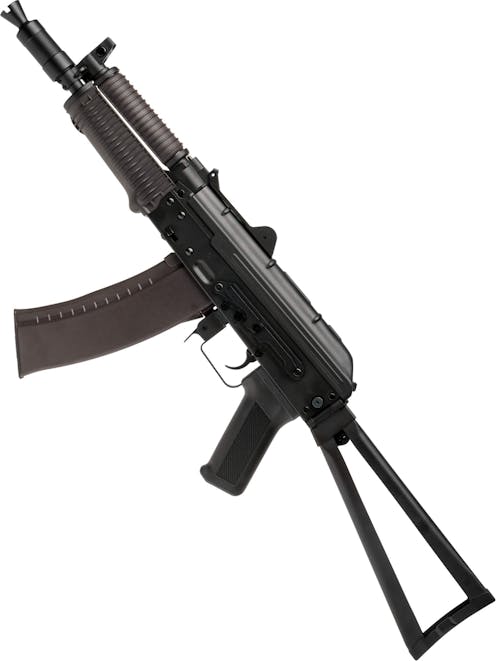

CYMA CM.045 AEG AK Rifle

CYMA
Code:
£149.99
  • Solid Replica
  • Steel Receiver
  • Dovetail Side Rail

An electric powered Airsoft Gun which is another addition to the battle-proven and bomb-proof CM.045 series, which is an AKS-74U platform replica. It features Stamped Steel externals as well as an Alloy HOP Chamber, Steel 7mm Bushings, Directional Piston Head and a Spring Guide w/ Bearings.

Full description

Description

This Airsoft Electric Gun is based on the AKS-74U platform and offers a highly realistic external construction which is a mixed of Sheet Steel and Zinc Aluminium Alloy for a solid weight and rugged feel. The CM.045 platform has long proven itself as an amazing balance of quality, price point and skirmish effectiveness, and now comes offered with a plum coloured, textured Handguard as well as Magazine.

The Receiver, Flash Hider, Dust Cover and Folding Stock (as well as the catch) has been made from Sheet Steel like the real thing, with special attention paid to the Folding Stock Catch which is a likely part to break after abuse. The Outer Barrel Assembly, Gas Block, Rear Sight and Dovetail Side Rail are made from Zinc Aluminium Alloy to make it robust and add to the astonishing weight, to bring it to a total of 2.685kg.

The replica features a side Folding Stock which is very useful for transport/storage, or for clearing very tight buildings. The Magazine is ambidextrous as with most AK platforms which makes it friendly for left handed players. The Fire Selector offers Safe, Semi and Automatic fire modes which are easily selected by flicking the plate to the desired position. The Flash Hider can be unscrewed to reveal a typical AK style thread which can accept PBS style Suppressors. This thread can then also be removed (once you have taken out the Grub Screw) to reveal a standard 14mm CCW Thread for standard Airsoft Suppressors. The Slider-Type HOP Unit can be accessed by pulling back on the Mock Charging Handle, and adjustments made by pushing the slider (towards the rear is more HOP). The Battery is housed underneath the Dust Cover, accessed by pressing the button at the rear of the Dust Cover to raise the entire assembly. It is hinged so that it doesn't remove completely, but try to avoid hitting the Dust Cover with it open to avoid damage to the hinges. The ironsights are very easy to use in typical AK fashion, and can be adjusted to ensure you're hitting on the mark.

Internally the replica features a host of new parts to improve on this already awesome platform. An Alloy HOP Chamber, Reinforced Gearbox, Steel 7mm Bushings, Steel Gears, Directional Piston head, Aluminium Piston Sleeve and a Reinforced Spring Guide w/ Bearings all work together to achieve optimal performance and lifespan from the gun.

Included in the box is a 8.4v 1200mAh NiMH Stick Battery which fits perfectly under the Dust Cover, as well as EU Pin Charger which is very basic but will do the job. As always, we recommend replacing the Battery and Charger with an aftermarket set for optimal performance. Also included is a 500rnd Bakelite Style High Capacity Magazine which is filled with BBs from the top Fill Window, and wound from the bottom to feed BBs into the gun. If you're looking for a rock solid AKS-74U replica which has been tried and tested in battle, and proven itself as an amazing performer for the price point, then look no further than the CYMA CM.045 AEG AK Rifle.

Features

  • AKS-74U Platform Replica
  • Electric Powered
  • Battery & Charger Included
  • Steel Receiver, Stock & Dust Cover
  • Alloy Outer Barrel, Gas Block & Side Rail
  • Dovetail Side Rail
  • 2 x Threaded Outer Barrels
  • 14mm CCW Thread
  • 24mm CW Thread
  • Folding Steel Stock
  • Rear Sling Loop
  • Ambidextrous Mag Release
  • Top Wired / Mini Tamiya
  • Polymer Handguard & Pistol Grip
  • 500rnd High Cap Magazine
  • Trigger Lock Safety
  • 290mm Inner Barrel
  • 6.08mm Diameter Inner Barrel
  • Reinforced Stock Latch
  • Alloy HOP Chamber
  • Reinforced Gearbox
  • Steel 7mm Bushings
  • Steel Gears
  • Directional Piston Head
  • Reinforced Spring Guide w/ Bearings

Package Includes

  • CYMA CM.045 AEG AK Rifle
  • 500rnd High Cap Magazine
  • User Manual


Special Instructions

The externals of the replica are metal where they would be on the real world gun. This includes things like the outer barrel, handguard, and receiver. If a real world gun has polymer parts then the gun will still be marked as full metal externals, examples of this would be an M4, where the Stock and Pistol grip are always made from Polymer.

Specification

General

Weapon Construction External
Weapon Type
Assault Rifle
Over 18 Only Icon
Over 18
Yes
Icon UKARA - United Kingdom Airsoft Retailer Association
Defence / UKARA Required
Yes, No,
FPS Icon
FPS (Feet Per Second), using 0.20g BB
Approx. 325fps ± 10%, using 0.20g BB
Site Legal Icon
Site Legal, using 0.20g BB
Yes
Package
Included Items
  • Magazine
  • Instruction Manual
  • Battery
  • EU Pin Charger
Skill Level Icon
User Skill Level
Starter, Regular Player,

Weight and Dimension

Weight KG Icon
Weight (KG)
Approx. 2.685kg
Weapon Length Collapsed
Length (Collapsed)
50cm
Weapon Length Extended
Length (Extended)
73cm

Construction

Colour Wheel Greyscale
Primary Colour
Black
Construction Icon
Construction
Sheet Steel receiver, flash hider, top cover and stock. Alloy outer barrel, gas block, rear sight and side rail. Polymer handguard, pistol grip and magazine.
Weapon Construction External
External Construction
Polymer
Alloy
Steel
Gearbox Icon
Internal Construction
Polymer
Alloy

Weapon Specific

Power Source Icon
Powered By
Electric
Blowback Icon
Blowback
None
Weapon Platform
AKS74U
Magazine Style Icon
Magazine Style
AK Platform
Fire Select Icon
Fire Selector
PatrolBase | Fire Select Safe
Safe
Patrol Base | Fire Select - Semi Automatic
Semi Automatic
Patrol Base | Full Automatic
Full Automatic
Weapon Safety Features Icon
Safety Features
Trigger Lock
Shooter Configuration Icon
Shooter Configuration
Right Handed
Weapon Configuration Icon
Weapon Configuration
Standard
Weapon Scale Icon
Weapon Scale
1:1
Suggested BB Weight
0.25g

Hop-Up

Hop-Up Unit Icon
Hop-Up Unit
Yes
Hop-Up Unit Adjuster Icon
Hop-Up Adjuster
Slider
Hop-Up Unit Location Icon
Hop-Up Location
Behind charging handle

Furniture

Weapon Furniture Icon
Furniture
  • Folding Stock
  • Ambidextrous Magazine Release
  • Threaded Outer Barrel
  • Dovetail Side Rail
Icon Stock Positions
Stock Setting
Folding
Weapon Length Extended
Stock Positions
2 Position
Sight Type Icon
Sight Type
Iron Sights
Sling Plate Icon
Sling Options
Stock , Loop ,

Barrel

Icon Thread Type
Outer Barrel Thread Type
Male
Icon Thread Direction
Outer Barrel Thread Direction
CCW (Counter Clockwise)
Outer Barrel Thread Size
14mm
Inner Barrel Diameter
6.08mm
Inner Barrel Length
290mm

Magazine Specific

Magazine Type
High Capacity, AEG,
Magazine BB Capacity
Approx. 500 Rounds
Magazine BB Fill Method
Fill Window
Magazine BB Fill Location
Top

Electric Gun Specific Information

Gearbox
Gearbox Icon
Gearbox Version
V3 Gearbox
Wiring Icon
Gearbox Wiring
Top Wired
Battery Specific
Battery Connector
Patrol Base | Icon | Mini Tamiya
Mini Tamiya
Included Battery
Battery Configuration
Stick
Battery Type
Ni-Mh
Battery Voltage
8.4V
Battery Amperage
1200mAh
Suggested Battery
Suggested Battery Type
Li-Po
Suggested Battery Configuration
Stick
Suggested Battery Voltage
7.4v

Product Testing Data

Notepad Icon
Test Description
325FPS
Notepad Icon
Tested Using
ASG Blaster 0.20g BBs
Notepad Icon
Test Date
26/11/19

Detailed Power Tests

FPS
FPS, using 0.20g BB
Approx. 325fps, using 0.20g BB

Size guide

Joule Charts

Special Instructions

These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

Tap the tabs below to open the relevant chart for your replica.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
325 0.98 1.23 1.37 1.47 1.57 1.77 1.96 2.11 2.21 2.45
328 1.00 1.25 1.40 1.50 1.60 1.80 2.00 2.15 2.25 2.50
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
335 1.04 1.30 1.46 1.56 1.67 1.88 2.09 2.24 2.35 2.61
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
345 1.11 1.38 1.55 1.66 1.77 1.99 2.21 2.38 2.49 2.76
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
355 1.17 1.46 1.64 1.76 1.87 2.11 2.34 2.52 2.63 2.93
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90
420 1.64 2.05 2.29 2.46 2.62 2.95 3.28 3.52 3.69 4.10
430 1.72 2.15 2.40 2.58 2.75 3.09 3.44 3.69 3.86 4.29
440 1.80 2.25 2.52 2.70 2.88 3.24 3.60 3.87 4.05 4.50
450 1.88 2.35 2.63 2.82 3.01 3.39 3.76 4.04 4.23 4.70
460 1.97 2.46 2.75 2.95 3.15 3.54 3.93 4.23 4.42 4.91
470 2.05 2.57 2.87 3.08 3.28 3.69 4.10 4.41 4.62 5.13
480 2.14 2.68 3.00 3.21 3.42 3.85 4.28 4.60 4.82 5.35
490 2.23 2.79 3.12 3.35 3.57 4.02 4.46 4.80 5.02 5.58
500 2.32 2.90 3.25 3.48 3.72 4.18 4.65 4.99 5.23 5.81
510 2.42 3.02 3.38 3.62 3.87 4.35 4.83 5.20 5.44 6.04
