CYMA CM.515 AR-15 Carbine AEG

CYMA
Code:
£84.99

If you're looking to get into the sport and get skirmishing, this M4 is for you. With nifty features such as KeyMod Style rail and a top RIS / RAS rail for tactical attachments, the CM.515 takes commonly available and cheap M4 AEG magazines and is already equipped with a 6.03mm tightbore inner barrel for extra accuracy. Hard to believe at this price, right? Well, you better start believing in cheap M4s with tightbores, you're looking at one!

This is the perfect AEG for any player looking to start their Airsoft journey with a budget-friendly AEG rifle that has no trouble competing either in CQB or in the wide spaces of outdoors sites. The widely supported and ever-popular M4 platform ensures plenty of room for aftermarket external upgrades to make the gun unique and truly yours. Whether this is your first foray into the world of Airsoft or you are looking for a cheap project gun to customise we are sure you will be impressed with the CM.515!

Full description

Description

Our current batch of CYMA Sport AEGs are supplied with a USB Charger and an 8.4V 1100mAh NiMh Battery. While these items are perfectly functional, we recommend using a 7.4V 1300mAh LiPo battery and a LiPo Balance Charger for faster charging times, a longer lasting battery and improved performance. A brief reminder never to leave your battery on charge unattended and always use a Battery Safe Charging Bag

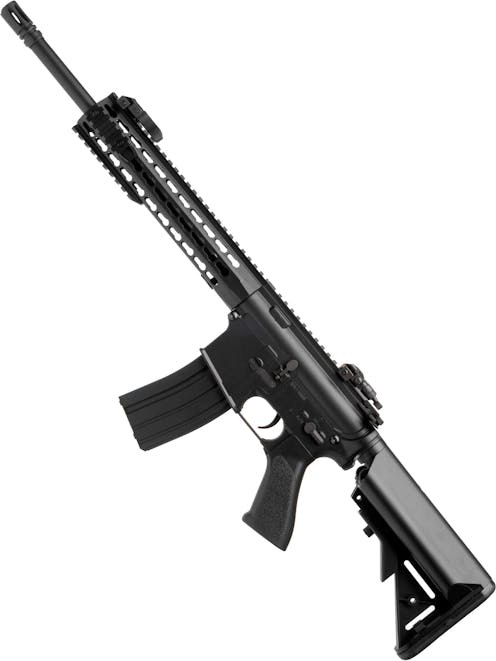

CYMA brings us an Airsoft replica of the instantly recognisable M4/AR15 platform used by the US Armed Forces for several decades, together with an absolutely massive following in the US civilian tactical scene. The CM.515 is a cost-effective AEG carbine with the looks of a modernised M4, boasting a free-floated mock KeyMod handguard to complete the look. The price may have you thinking "this can't be any good", but the truth is, you will be very surprised by the performance of this cost-effective AEG!

The CM.515 features a Mock KeyMod Style rail system, which comes with a full top-length 20mm RIS / RAS Rail, allowing you to attach a variety of sights and scopes to the AEG, giving plenty of customization options. We would recommend that you grab yourself a red dot or holographic sight, but the rail is also long enough for attaching zoomed sights and scopes should you want one. The CM.515 also has two front side rails designed for torches, lights and lasers as well as a front bottom rail for Grips and Bi-pods. The body of the gun features a functional mock charging handle which is used to expose the HOP-up.

The end of the barrel features a removable mock flash hider which reveals a 14mm CCW threaded outer barrel allowing you to attach a wide range of Airsoft suppressors and tracer units to give the replica more unique or more tactical look.

Internally the replica features full metal V2 gearbox, with a polymer piston and reinforced steel 8mm bearings for extra reliability, and a 6.03mm inner barrel for range and accuracy. The gun also features a fully adjustable hop-up unit, allowing the amount of spin placed on the BB to be adjusted giving the gun a longer range. The hop up unit works by pushing a small contact patch of rubber into the path of the BB before it travels down the barrel, causing the BB to spin. This spin creates a cushion of air as it travels, giving the BB a more stable and accurate trajectory.

The CM.515 features a multi-position adjustable stock which can be adjusted to accommodate for different height users, and features a rear sling plate, allowing a variety of slings to hold your gun should it be dropped or to free up both hands for activities. The stock is of a 'crane' design, allowing a 9.6v NiMH crane battery or a 7.4V 1450mah LiPo battery to be added, giving plenty of power and lifetime, and the battery compartment can be accessed by removing the rear rubber butt plate and sliding each stick down the slots at either side of the stock.

CYMA's CM.515 is great as it accepts a variety of M4/AR15 Airsoft magazines, which are the most common type in Airsoft, making it easy to buy spare magazines. Included in the box is a 300 round high cap wheel wound magazine to get you started and get skirmishing either indoors or in the depths of the woods!

Features

  • Perfect starter gun for beginners
  • Mock KeyMod style handguard / front rail for looks
  • Removable Flip-Up Front and Rear Iron sight
  • Full polymer lightweight construction
  • Full metal gearbox
  • Full top length 20mm RIS / RAS Rail
  • Front Medium 20mm RIS / RAS rail
  • Two Side 20mm RIS / RAS front rails
  • Functional mock charging handle
  • Adjustable HOP-up unit for range and accuracy
  • Multi-position adjustable stock
  • Removable & adjustable crane stock
  • Rear sling mount plate for attaching slings - See Special Instructions
  • Removable 14mm CCW flash hider
  • Loops holes in the stock for attaching slings
  • Removable front and rear flip-up iron sights
  • 7.4v 1450mah LiPo crane stock battery recommended
  • Accepts a variety of STANAG based / M4 Airsoft magazines
  • V2 Gearbox with alloy shell
  • 8mm Bearings
  • Lightweight polymer piston
  • 6.03mm 680mm tight bore inner barrel

Package Includes

  • CYMA CM.515 AR-15 M4 Carbine AEG
  • 300rnd High Capacity Magazine

Special Instructions

Please note that the rail is a simply KeyMod style, and will not fit KeyMod parts.

Please note, the buffer tube sling plate on the CM.515 is constructed from polymer and we do not recommend using it as it may not be up to the task of supporting the weight of the AEG, especially with a single-point sling. We recommend using the sling slots on the stock and pairing them with a rail-mounted sling point affixed to one of the included 20mm rail sections.


Specification

General

Weapon Construction External
Weapon Type
Assault Rifle
Over 18 Only Icon
Over 18
Yes
Icon UKARA - United Kingdom Airsoft Retailer Association
Defence / UKARA Required
Yes, No,
FPS Icon
FPS (Feet Per Second), using 0.20g BB
Approx. 330fps ± 10%, using 0.20g BB
Site Legal Icon
Site Legal, using 0.20g BB
Yes
Screwdriver Icon
Pre-Built
Yes
Package
Included Items
Magazine
Skill Level Icon
User Skill Level
Starter
Patrol Base - Warning Icon
Warnings
Li-Po - Never Leave Charging Unattended
Li-Po - Only Use Approved Chargers
Li-Po - Charge in a Fire Safe Area

Weight and Dimension

Weight KG Icon
Weight (KG)
Approx. 1.88kg
Weapon Length Collapsed
Length (Collapsed)
79.2cm
Weapon Length Extended
Length (Extended)
88.2cm

Construction

Colour Wheel Greyscale
Primary Colour
Black, Tan ,
Colour Wheel Greyscale
Secondary Colour
Black
Two Tone Icon
Pre Two-Toned
No
Construction Icon
Construction
Full Polymer receiver, pistol grip and stock with some alloy parts
Weapon Construction External
External Construction
Polymer
Alloy
Gearbox Icon
Internal Construction
Polymer
Alloy

Weapon Specific

Power Source Icon
Powered By
Electric
Blowback Icon
Blowback
None
Weapon Platform
M4 / AR-15 / M16
Magazine Style Icon
Magazine Style
STANAG
Fire Select Icon
Fire Selector
PatrolBase | Fire Select Safe
Safe
Patrol Base | Fire Select - Semi Automatic
Semi Automatic
Patrol Base | Full Automatic
Full Automatic
Weapon Safety Features Icon
Safety Features
Trigger Lock
Shooter Configuration Icon
Shooter Configuration
Right Handed
Weapon Configuration Icon
Weapon Configuration
Standard
Weapon Scale Icon
Weapon Scale
1:1
Suggested BB Weight
0.2g

Hop-Up

Hop-Up Unit Icon
Hop-Up Unit
Yes
Hop-Up Unit Adjuster Icon
Hop-Up Adjuster
Gear
Hop-Up Unit Location Icon
Hop-Up Location
Behind mock Bolt cover, when charging handle to the rear

Furniture

Weapon Furniture Icon
Furniture
  • Flip-Up Ironsights
  • AR Buffer Tube
  • KeyMod Handguard
  • Railed Receiver
  • Sliding Stock
  • Standard
Rail System Icon
Rail System
20mm RIS / RAS , KeyMod ,
Icon Stock Positions
Stock Setting
Sliding
Weapon Length Extended
Stock Positions
5 Position
Sight Type Icon
Sight Type
Aperture Iron Sight
Sling Plate Icon
Sling Options
Stock , Loop ,

Barrel

Outer Barrel Length (in)
16''
Icon Thread Type
Outer Barrel Thread Type
Female
Icon Thread Direction
Outer Barrel Thread Direction
CCW (Counter Clockwise)
Outer Barrel Thread Size
14mm
Inner Barrel Diameter
6.03mm
Inner Barrel Length
380mm

Magazine Specific

Magazine Type
AEG
Magazine BB Capacity
Approx. 300 Rounds
Magazine BB Fill Method
Fill Window
Magazine BB Fill Location
Top

Electric Gun Specific Information

Gearbox
Gearbox Icon
Gearbox Version
V2 Gearbox
Wiring Icon
Gearbox Wiring
Rear Wired
Spring Change Icon
Gearbox Quick Change Spring
No
Digital Trigger Icon
Gearbox Electronic Trigger
No
Motor
Airsoft Motor Icon
Motor Type
Standard
Battery Specific
Battery Connector
Patrol Base | Icon | Mini Tamiya
Mini Tamiya
Compatible Battery
Compatible Battery Type
Li-Po
Compatible Battery Configuration
Crane
Compatible Battery Voltage
7.4v

Product Testing Data

Notepad Icon
Test Description
330 FPS +/- 10%
Notepad Icon
Tested Using
0.2g ASG BLASTER
Notepad Icon
Test Date
10/08/2015

Related video

Size guide

Joule Charts

Special Instructions

These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

Tap the tabs below to open the relevant chart for your replica.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
325 0.98 1.23 1.37 1.47 1.57 1.77 1.96 2.11 2.21 2.45
328 1.00 1.25 1.40 1.50 1.60 1.80 2.00 2.15 2.25 2.50
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
335 1.04 1.30 1.46 1.56 1.67 1.88 2.09 2.24 2.35 2.61
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
345 1.11 1.38 1.55 1.66 1.77 1.99 2.21 2.38 2.49 2.76
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
355 1.17 1.46 1.64 1.76 1.87 2.11 2.34 2.52 2.63 2.93
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90
420 1.64 2.05 2.29 2.46 2.62 2.95 3.28 3.52 3.69 4.10
430 1.72 2.15 2.40 2.58 2.75 3.09 3.44 3.69 3.86 4.29
440 1.80 2.25 2.52 2.70 2.88 3.24 3.60 3.87 4.05 4.50
450 1.88 2.35 2.63 2.82 3.01 3.39 3.76 4.04 4.23 4.70
460 1.97 2.46 2.75 2.95 3.15 3.54 3.93 4.23 4.42 4.91
470 2.05 2.57 2.87 3.08 3.28 3.69 4.10 4.41 4.62 5.13
480 2.14 2.68 3.00 3.21 3.42 3.85 4.28 4.60 4.82 5.35
490 2.23 2.79 3.12 3.35 3.57 4.02 4.46 4.80 5.02 5.58
500 2.32 2.90 3.25 3.48 3.72 4.18 4.65 4.99 5.23 5.81
510 2.42 3.02 3.38 3.62 3.87 4.35 4.83 5.20 5.44 6.04
