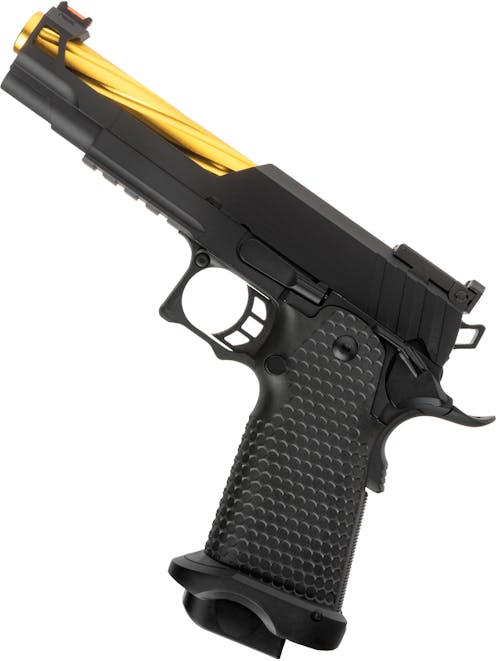

Golden Eagle Hi-Capa 5.1 High Speed Custom GBB Pistol

Golden Eagle
Code: 3337
£99.99
  • Full metal construction
  • Stylish spiral fluted outer barrel
  • Ultra-light side with exceptional speed

For those Hi-Capa fans who feel the need for speed, the Hi-Capa 5.1 High Speed Custom from Golden Eagle takes out of the box Hi-Capa performance to even greater peaks. The slide of this Hi-Capa has been reduced to practically nothing at all, giving it an incredibly fast cyclic rate with reduced recoil, resulting in a vast improvement in gas efficiency and shot to shot consistency. If you are the type of player who is all about performance, this Hi-Capa would be perfect for your needs, and would almost certainly excel with an HPA rig connected as it does with a standard green gas magazine. The skeletonised slide design and spiral fluted outer barrel would also appeal to those out there who appreciate the minimalist race-gun aesthetic.


Full description

Description

The Hi-Capa 5.1 High Speed Custom is a radical departure from the traditional full slide Hi-Capa design, exchanging felt recoil for additional slide speed and stand-out customised aesthetics. This Hi-Capa boasts all the modern design features of the most up to date modern Hi-Capas on the market, with a lightweight minimalist slide and spiral fluted outer barrel, reducing the weight to only what is necessary for pure performance. If you want a Hi-Capa that is faster than your mates, this one probably is!

Starting at the tip of the outer barrel we can see 12mm CW female threads, allowing you to mount a tracer for some CQB intimidation or a suppressor if you have more of a sneaky playstyle using a 12mm CW to 14mm CCW thread adapter. The outer barrel of the Hi-Capa 5.1 High Speed Custom is a lightweight design with precisely machined spiral fluting on its outer surface, adding to this Hi-Capa 5.1 GBB's custom aesthetic and helping it to stand out amongst all the other vogueish Hi-Capas on the modern skirmish site! The gold barrel with a black slide is an instantly recognisable "custom" look in the Airsoft community, thanks to Salient Arms for starting this trend!

The upper portion of the slide, save for the area where the front sight mounts, has been entirely cut away all the way back to the ejection port, revealing the spiral fluted outer barrel for an unconventional and eye-catching look. The area below the barrel which houses the recoil rod guide has also been cut away, and the remaining portion of the front of the slide includes ports on either side, effectively skeletonising the slide for unparalleled slide speed.

The sights of the Hi-Capa 5.1 High Speed Custom can be found on the top of the slide, with the front sight mounted on what is left of the front of the slide, and the rear sight found at the rear, just above the hammer. The front sight is a fixed light-enhancing sight with a red insert, allowing for fast target acquisition, even in low light situations. The rear sight is a serrated "anti-glare" open sight which combines well with the light-enhancing front sight to prevent accidentally mixing up the sight dots and pulling your shot off. The rear sight is fully adjustable and can be raised and lowered by turning the screw on the top using a flathead screwdriver to set your elevation. The windage can be adjusted using the screw on the right side of the sight which will allow you to move the sight picture left to right. At the rear of the slide, we can find deep, angular serrations to provide positive control over the slide of the pistol, meaning no matter the weather conditions you will still be able to cock the slide, with or without gloves.

Moving down to the frame, we can find the standard Hi-Capa layout of an alloy frame with a modular, polymer pistol grip. The frame of the Hi-Capa 5.1 High Speed Custom features a 20mm Picatinny accessory rail which allows for a tactical flashlight or laser to be added for low light environments or CQB. The slide release catch can be found on the left side of the pistol, just above the trigger, and is a slightly enlarged design to enable those with smaller hands to use the control effectively whilst remaining tight to the frame to prevent snags. The magazine release can be found on the left side of the grip and is an extended design to allow for easy and fast access when time is of the essence.

The grip itself is constructed from high density polymer, and features dot texturing on the front, and on both sides to provide the gripping qualities necessary for use in all weather conditions, with or without gloves. As a part of the Hi-Capa design, the trigger guard is integrated into the pistol grip module, and includes undercuts for both the strong hand and support hand, encouraging a high grip on the pistol for better recoil control. These undercuts provide a comfortable relief for you hands to sit whilst holding the pistol in two hands, and also serve to assist the shooter in gaining a consistent grip each time the pistol is drawn. At the base of the grip, we can find a magazine well extension with a bevelled inner wall, also known as a magazine well flare. This part is intended to help speed up reloads by providing a widened route to the magazine well, allowing for "eyes up" reloads and easier reloads on the move. This magazine well flare also has cut-outs on either side to aid in removing the magazine for a retention reload.

The manual safety can be found at the rear of the pistol and is mirrored on either side to allow for left or right-handed use. This manual safety can be activated whether the pistol is cocked or not and will lock both the trigger and slide when pushed upwards. When not in use, the safety does double duty as a "gas pedal" style thumb rest to encourage a consistent grip and assist with controlling muzzle rise.

At the rear of the frame we can find our secondary safety device; the beavertail grip safety. This safety prevents the pistol from being fired unless it is pressed in, ensuring the pistol will not fire when dropped and allowing you to safely carry the Hi-Capa, with its legendarily light trigger. The beavertail present on the Hi-Capa 5.1 High Speed Custom is an extended design, featuring texture on the rear surface for additional grip and an extension to ensure the safety is disabled as soon as the pistol is gripped.

Just above the grip safety, we can see the hammer, which is a low profile skeletonised design intended to reduce the chances of "hammer bite" and prevent the hammer from snagging on your gear as you draw. The angular design of the hammer sits right in line with the visual language expressed by the rest of the pistol, and also includes linear texture on the upper surface to allow for greater control if you need to de-cock the Hi-Capa.

The Golden Eagle Hi-Capa 5.1 High Speed Custom is for those looking for a Hi-Capa which is absolutely uncompromised in its pursuit of speed. The skeletonised slide and spiral fluted outer barrel result in superb gas efficiency, and incredible slide speed, with a slight reduction in recoil to ensure you land those double taps on target. Without a plethora of internal upgrades this is as fast as it gets, so if you're looking for a great starting point for a CQB Hi-Capa built the Hi-Capa 5.1 High Speed Custom is the one!

Features

  • Full metal construction
  • Spiral fluted outer barrel
  • Skeletonised slide - Ultra quick
  • Ambidextrous manual safety
  • Trigger guard undercut
  • Excellent gas efficiency
  • Extended magazine catch
  • 20mm Picatinny frame rail
  • Low profile skeletonised hammer
  • 12mm CW threaded outer barrel
  • Magazine well flare - Speedy reloads!
  • Beavertail grip safety for added security
  • Supplied in a superb quality hard case
  • Gold barrel on black frame - Custom looks
  • Light enhancing front sight with anti glare rear sight

Package Includes

  • Golden Eagle Hi-Capa 5.1 High Speed Custom
  • 28 Rnd Hi-Capa 5.1 GBB magazine
  • Cleaning rod
  • Speed loader
  • User manual

Specification

General

Weapon Construction External
Weapon Type
Pistol
Over 18 Only Icon
Over 18
Yes
Icon UKARA - United Kingdom Airsoft Retailer Association
Defence / UKARA Required
Yes, No,
FPS Icon
FPS (Feet Per Second), using 0.20g BB
Approx. 300fps ± 10%, using 0.20g BB
Site Legal Icon
Site Legal, using 0.20g BB
Yes
Screwdriver Icon
Pre-Built
Yes
Package
Included Items
  • Magazine
  • Cleaning Rod
  • Speed Loader
Skill Level Icon
User Skill Level
Starter, Regular Player,
Patrol Base - Warning Icon
Warnings
Lubrication is required

Weight and Dimension

Weight KG Icon
Weight (KG)
Approx. 0.616kg
Weapon Length Collapsed
Length (Collapsed)
22.3cm
Weapon Length Extended
Length (Extended)
22.3cm

Construction

Colour Wheel Greyscale
Primary Colour
Black
Colour Wheel Greyscale
Secondary Colour
Gold
Construction Icon
Construction
Alloy slide, outer barrel, frame and controls. Polymer pistol grip. Steel screws and pins.
Weapon Construction External
External Construction
Polymer
Alloy
Steel
Gearbox Icon
Internal Construction
Polymer
Alloy
Aluminium
Steel

Weapon Specific

Power Source Icon
Powered By
Green Gas
Blowback Icon
Blowback
Gas Blowback
Weapon Platform
Pistol, Hi-Capa,
Magazine Style Icon
Magazine Style
Pistol Magazine, Hi-Capa,
Fire Select Icon
Fire Selector
PatrolBase | Fire Select Safe
Safe
Patrol Base | Fire Select - Semi Automatic
Semi Automatic
Weapon Safety Features Icon
Safety Features
Beavertail, Trigger Lock,
Shooter Configuration Icon
Shooter Configuration
Right Handed
Weapon Configuration Icon
Weapon Configuration
Standard
Weapon Scale Icon
Weapon Scale
1:1
Suggested BB Weight
0.25g

Hop-Up

Hop-Up Unit Icon
Hop-Up Unit
Yes
Hop-Up Unit Adjuster Icon
Hop-Up Adjuster
Gear
Hop-Up Unit Location Icon
Hop-Up Location
On outer barrel, accessible when the slide is removed

Furniture

Weapon Furniture Icon
Furniture
  • Ambidextrous Safety
  • 20mm Pistol Rail
  • Flared Magwell
  • Textured Pistol Grip
  • Beavertail Safety
  • Skeletonised Trigger
  • Skeletonised Hammer
  • Light enhancing front iron sight
  • Trigger guard undercut
  • Anti-glare open iron sights
Rail System Icon
Rail System
20mm RIS / RAS , 20mm Pistol Mount ,
Weapon Length Extended
Stock Positions
0 Position
Sight Type Icon
Sight Type
Iron Sights , Open Iron Sight, Light enhancing front iron sight with anti-glare rear sight,

Barrel

Outer Barrel Length (in)
5.1''
Icon Thread Type
Outer Barrel Thread Type
Female
Icon Thread Direction
Outer Barrel Thread Direction
CW (Clockwise)
Outer Barrel Thread Size
12mm
Inner Barrel Diameter
6.08mm
Inner Barrel Length
112mm

Magazine Specific

Magazine Type
Low Capacity , Gas,
Magazine BB Capacity
Approx. 28 Rounds
Magazine BB Fill Method
Speed Loader
Magazine BB Fill Location
Top, Front,
Magazine Gas Fill Location
Bottom
Magazine Gas Type
Green Gas

Gas Gun Specific

Gas Can Icon
Gas Compatability
Summer Gas, Green Gas,
Gas Can Icon
Gas Recommendation
Green Gas

Pistol Specific

Construction Icon
Slide Material
Alloy
Icon Pistol Slide
Pistol Slide Type
Standard - Weight reduced

Product Testing Data

Notepad Icon
Test Description
300 FPS +/- 10%
Notepad Icon
Tested Using
0.2g ASG BLASTER
Notepad Icon
Test Date
19/04/2022

Related video

Golden Eagle Speed Custom LIVE

Size guide

Joule Charts

Special Instructions

These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

Tap the tabs below to open the relevant chart for your replica.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
325 0.98 1.23 1.37 1.47 1.57 1.77 1.96 2.11 2.21 2.45
328 1.00 1.25 1.40 1.50 1.60 1.80 2.00 2.15 2.25 2.50
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
335 1.04 1.30 1.46 1.56 1.67 1.88 2.09 2.24 2.35 2.61
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
345 1.11 1.38 1.55 1.66 1.77 1.99 2.21 2.38 2.49 2.76
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
355 1.17 1.46 1.64 1.76 1.87 2.11 2.34 2.52 2.63 2.93
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90
420 1.64 2.05 2.29 2.46 2.62 2.95 3.28 3.52 3.69 4.10
430 1.72 2.15 2.40 2.58 2.75 3.09 3.44 3.69 3.86 4.29
440 1.80 2.25 2.52 2.70 2.88 3.24 3.60 3.87 4.05 4.50
450 1.88 2.35 2.63 2.82 3.01 3.39 3.76 4.04 4.23 4.70
460 1.97 2.46 2.75 2.95 3.15 3.54 3.93 4.23 4.42 4.91
470 2.05 2.57 2.87 3.08 3.28 3.69 4.10 4.41 4.62 5.13
480 2.14 2.68 3.00 3.21 3.42 3.85 4.28 4.60 4.82 5.35
490 2.23 2.79 3.12 3.35 3.57 4.02 4.46 4.80 5.02 5.58
500 2.32 2.90 3.25 3.48 3.72 4.18 4.65 4.99 5.23 5.81
510 2.42 3.02 3.38 3.62 3.87 4.35 4.83 5.20 5.44 6.04
