Jing Gong JG094 T3 SAS G3

Jing Gong
Code:
£149.99
  • Sliding Stock
  • 14mm CCW Thread
  • Battery & Charger Inc.

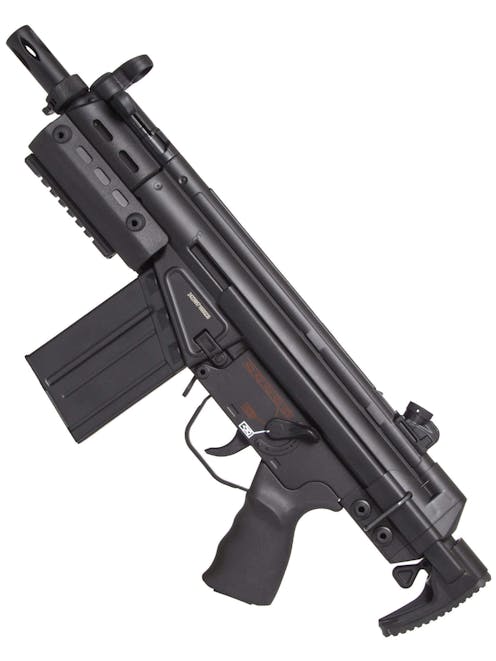

This Airsoft Electric Gun is a compact SMG based on the G3 platform, which offers a tiny overall length with a Sliding Stock to extend it out to comfortable lengths, as well as a Railed Handguard and Receiver to add tactical accessories.

Full description

Description

This Airsoft replica is powered by electric and ideally store a short LiPo Stick Battery in the Handguard. It is a compact and versatile platform which offers an ambidextrous Mag Release and Sliding Stock which makes it very good for CQB scenarios, especially when practicing opposite shoulder techniques.

The external body of the gun is made from a tough Polymer which has a surprisingly realistic feel, and coupled with an Alloy outer barrel assembly for a strong core comes to quite a heavy weight (~1.5kg). It features a 14mm CCW thread at the end of the barrel, once the Flash Hider adapter and Thread Protector have been removed. The ironsights are a traditional Rotary Drum affair which is typical for a HK platform replica, and the Magazine Release is ambidextrous as you would expect. There is also a further M4 style Mag Release on the offside of the Receiver. The Handguard has a 20mm bottom rail for Foregrips, Lasers, Lights and other 20mm compatible accessories, and can even accept separately sourced side 20mm rails too. The Receiver features the HK Universal Rail System and comes with a 20mm Rail Piece which install on the Receiver for you to attach Sights and Scopes.  The Pistol Grip is an ergonomic design and allows easy access to the Safe / Semi / Auto Fire Selector, and a solid Rear Sling Loop gives you the ability to attach a sling to use another gun or assist carrying. The rear of the replica has a Sliding Stock which can be collapsed for transport/storage or CQB situations, and fully extended for a more stable shooting position. The JG094 has an adjustable HOP unit which is adjusted by pulling back the Charging Handle to reveal a Rotary HOP Adjustment Dial behind the Mock Bolt. The Charging Handle can be locked to the rear, but please avoid temptation to perform the 'HK Slap' to release the Charging Handle, as damage could occur.

Included in the box is a 300rnd High Capacity Magazine which is filled from the top Fill Window, and wound at the clockwork wheel on the bottom to feed BBs into the gun. Also included is an EU Pin Charger and 8.4v 1100mAh NiMH Block Battery which will work fine, but will be inferior to an aftermarket set. If you're looking for a compact and versatile tool to up your game in CQB, which can hold its own on outdoor fields too, then the Jing Gong JG094 T3 SAS G3 is the one for you.

Features

  • G3 Platform Replica
  • Highly Compact
  • 20mm Railed Handguard
  • 20mm Receiver Rail
  • 14mm CCW Thread
  • 300rnd High Cap Mag
  • Battery & Charger Included
  • Two Position Sliding Stock
  • Rear Sling Loop
  • Functional Mock Charging Handle
  • Rotary HOP Adjust
  • Ambidextrous Mag Release
  • Secondary M4 Style Mag Release
  • Ergonomic Pistol Grip
  • Rotary Drum Ironsights
  • Rubber Textured Butt Pad

Package Includes

  • Jing Gong - JG094 T3 SAS G3
  • 300rnd High Cap Magazine
  • 8.4v 1100mAh NiMH Battery
  • EU Pin Charger
  • 20mm Receiver Rail

Special Instructions

This unit was tested with a 5 shot average of 348FPS which is very close to the limit. Be warned that if your site use a low quality chronograph they could get slightly different results which may represent a hot gun. If you have any doubts please contact us before purchase.

Specification

General

Weapon Construction External
Weapon Type
Submachine Gun
Over 18 Only Icon
Over 18
Yes
Icon UKARA - United Kingdom Airsoft Retailer Association
Defence / UKARA Required
Yes, No,
FPS Icon
FPS (Feet Per Second), using 0.20g BB
Approx. 350fps ± 10%, using 0.20g BB
Site Legal Icon
Site Legal, using 0.20g BB
Yes
Package
Included Items
  • Instruction Manual
  • Cleaning Rod
  • Battery
  • EU Pin Charger
  • 20mm RIS/RAS Rail Sections
Skill Level Icon
User Skill Level
Regular Player
Patrol Base - Warning Icon
Warnings
Free Gift Battery Warning

Weight and Dimension

Weight KG Icon
Weight (KG)
Approx. 4.5kg
Weapon Length Collapsed
Length (Collapsed)
54.5cm
Weapon Length Extended
Length (Extended)
72.2cm

Construction

Colour Wheel Greyscale
Primary Colour
Black
Two Tone Icon
Pre Two-Toned
No
Construction Icon
Construction
Polymer receiver, handguard, pistol grip, buttpad. Alloy outer barrel, sights, stock & magazine.
Weapon Construction External
External Construction
Polymer
Alloy
Gearbox Icon
Internal Construction
Polymer
Alloy

Weapon Specific

Power Source Icon
Powered By
Electric
Blowback Icon
Blowback
None
Weapon Platform
G3 Platform
Magazine Style Icon
Magazine Style
G3 Series
Fire Select Icon
Fire Selector
PatrolBase | Fire Select Safe
Safe
Patrol Base | Fire Select - Semi Automatic
Semi Automatic
Patrol Base | Full Automatic
Full Automatic
Weapon Safety Features Icon
Safety Features
Trigger Lock
Shooter Configuration Icon
Shooter Configuration
Right Handed
Weapon Configuration Icon
Weapon Configuration
Standard
Weapon Scale Icon
Weapon Scale
1:1
Suggested BB Weight
0.25g

Hop-Up

Hop-Up Unit Icon
Hop-Up Unit
Yes
Hop-Up Unit Adjuster Icon
Hop-Up Adjuster
Gear
Hop-Up Unit Location Icon
Hop-Up Location
Pull charging handle to reveal hop adjust inside dust cover

Furniture

Weapon Furniture Icon
Furniture
  • Railed Handguard
  • Railed Receiver
  • Ambidextrous Magazine Release
  • Sliding Stock
  • Ergonomic Pistol Grip
  • Threaded Outer Barrel
Rail System Icon
Rail System
20mm RIS / RAS
Icon Stock Positions
Stock Setting
Sliding
Weapon Length Extended
Stock Positions
2 Position
Sight Type Icon
Sight Type
Rotary Drum Iron Sight

Barrel

Icon Thread Type
Outer Barrel Thread Type
Male
Icon Thread Direction
Outer Barrel Thread Direction
CCW (Counter Clockwise)
Outer Barrel Thread Size
14mm

Magazine Specific

Magazine Type
High Capacity, AEG,
Magazine BB Capacity
Approx. 400 Rounds
Magazine BB Fill Method
Fill Window
Magazine BB Fill Location
Top

Electric Gun Specific Information

Gearbox
Gearbox Icon
Gearbox Version
V2 Gearbox
Wiring Icon
Gearbox Wiring
Front Wired
Battery Specific
Battery Connector
Patrol Base | Icon | Mini Tamiya
Mini Tamiya
Included Battery
Battery Configuration
Block
Battery Type
Ni-Mh
Battery Voltage
8.4V
Battery Amperage
1100mAh
Suggested Battery
Suggested Battery Type
Li-Po
Suggested Battery Configuration
Crane
Suggested Battery Voltage
7.4v

Product Testing Data

Notepad Icon
Test Description
350
Notepad Icon
Tested Using
ASG Blaster 0.20g BBs

Size guide

Joule Charts

Special Instructions

These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

Tap the tabs below to open the relevant chart for your replica.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
325 0.98 1.23 1.37 1.47 1.57 1.77 1.96 2.11 2.21 2.45
328 1.00 1.25 1.40 1.50 1.60 1.80 2.00 2.15 2.25 2.50
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
335 1.04 1.30 1.46 1.56 1.67 1.88 2.09 2.24 2.35 2.61
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
345 1.11 1.38 1.55 1.66 1.77 1.99 2.21 2.38 2.49 2.76
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
355 1.17 1.46 1.64 1.76 1.87 2.11 2.34 2.52 2.63 2.93
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90
420 1.64 2.05 2.29 2.46 2.62 2.95 3.28 3.52 3.69 4.10
430 1.72 2.15 2.40 2.58 2.75 3.09 3.44 3.69 3.86 4.29
440 1.80 2.25 2.52 2.70 2.88 3.24 3.60 3.87 4.05 4.50
450 1.88 2.35 2.63 2.82 3.01 3.39 3.76 4.04 4.23 4.70
460 1.97 2.46 2.75 2.95 3.15 3.54 3.93 4.23 4.42 4.91
470 2.05 2.57 2.87 3.08 3.28 3.69 4.10 4.41 4.62 5.13
480 2.14 2.68 3.00 3.21 3.42 3.85 4.28 4.60 4.82 5.35
490 2.23 2.79 3.12 3.35 3.57 4.02 4.46 4.80 5.02 5.58
500 2.32 2.90 3.25 3.48 3.72 4.18 4.65 4.99 5.23 5.81
510 2.42 3.02 3.38 3.62 3.87 4.35 4.83 5.20 5.44 6.04
