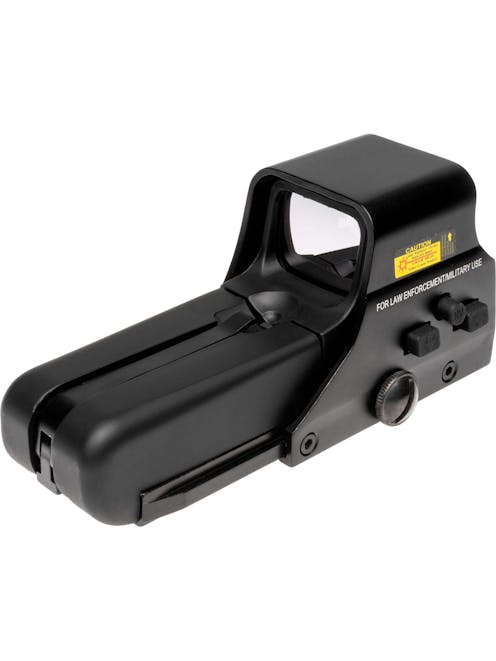

PCS Holo Weapon Sight Mod.7

Code: CL2-0035
  • Red or Green "Holo" type reticle
  • Alloy construction
  • Integrated 20mm Picatinny rail mount

An Alloy constructed Holographic Red Dot Sight designed for 20mm RIS/RAS, making it compatible with every Airsoft Gun with a 20mm/Picatinny rail. The sight provides a multi-function reticle with 10 levels of brightness adjustment and the choice of Red or Green illumination, allowing for both precise shooting and ultra-fast snap shooting.

Full description


The Holo Weapon Sight Mod.7 is a red dot sight of classic holographic sight design, with a multi functional reticle providing two dots for precise shooting with an outer ring for rapid close-ranged work. The reticle is illuminated in red and can be adjusted to any of the 10 brightness settings using the "up/down arrow" buttons on the left side of the sight. To turn the sight on, press the "up arrow" button, to turn it off, hold both arrow buttons down. The "NV" button above the arrow keys can be used to change the reticle colour from Red to Green.  The Holo Weapon Sight Mod.7, similarly to other holographic style sights, features an alloy protective hood surrounding the sight's delicate lenses and electronics, giving the sight some additional drop protection. This sight is the side control variant of the full size Holographic sight, with the battery compartment positioned at the front and designed for two of the widely available AA 1.5V battery (not included). The battery compartment is opened using the throw lever on the top of the sight which releases the battery cover, allowing the battery to be swapped without tools.

The sights adjustment screws are both present on the right side of the optic, recessed into its alloy protective hood, with the front screw controlling left-right adjustment (windage) and the rearmost screw providing elevation adjustment. The sight mounts to 20mm Picatinny rails using a knurled thumbscrew on the right side of the optic. This can be used without tools but can be tightened with a flat head screwdriver if necessary.

This optic would be perfect for someone looking for a quick to acquire sight for CQB that will be just as useful in woodland with its smaller precise dot within ring reticle. These holographic sights also look awesome on an AR15/M4 rifle, and line up perfectly with the AR15 front sight.


  • Takes 2x AA battery - Cheap to run!
  • Alloy protective hood
  • 10 Levels of brightness
  • Red/Green illuminated Holo reticle
  • Left side facing controls
  • Integrated 20mm rail mount
  • Adjustable using a flat head screwdriver
  • Lines up well with AR15 front iron sight

Package Includes

  • Holo Weapon Sight Mod.7
  • Lens cleaning cloth
  • Instruction leaflet



Sight Type Icon
Sight Type
Holographic , Red Dot Sight,
Package Includes
Instruction Manual, Cleaning Cloth,

Weight and Dimension

Product Height
Approx. 6.2cm
Product Length
Approx. 14cm
Product Width
Approx. 6cm
Weight KG Icon
Weight (KG)
Approx. 0.244kg


Colour Wheel Greyscale
Item Colour
Construction Icon
Metal and Polymer

Sight Specific

Sight Magnification
Sight Adjustment Adjustments
Windage, Elevation, Illumination,
Sight Zero Adjuster Method
Flat-Head Screwdriver
Sight Zero Location
Sight Mount Options
Integrated Rail Mount
Sight Objective Lens Diameter
Reticle Type
Holographic Type
Holographic Type


Sight Fogproof

Holographic Specific

Holographic Control Location

Illuminated Sight Specific

Illuminated Reticle
Illuminated Reticle Levels
Illuminated Reticle Colours
Red, Green,
Battery Type
