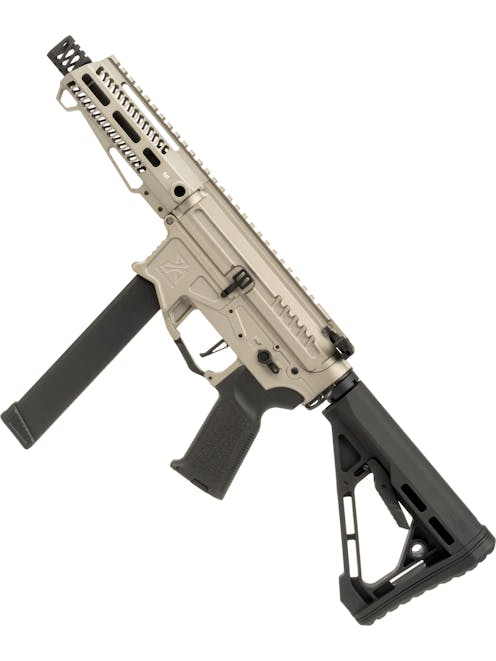

Zion Arms PW9 MOD.1 AR-9 SMG AEG; Short Handguard

Zion Arms
Code:
£209.99
  • Full metal construction
  • Zion Arms Nebula ETU / MOSFET pre-installed
  • CNC 7075 T6 Aluminium receiver & handguard

If you are looking for an SMG but you have experience with the M4/AR-15, an AR-9 platform would suit you perfectly. The Zion Arms PW9 MOD.1 follows the AR-9 design format but is constructed with a CNC 7075 T6 aluminium receiver and handguard making it lighter than a beachball while maintaining superb strength. Unlike many other Airsoft AR-9 SMGs, the PW9 is based on a real steel design, the R&D Precision PW9, and boasts licenced trademarks on its handguard as a homage to the real thing.

The story only gets sweeter when it comes to internals! Inside the PW9 we are treated to a polished 6.03mm tightbore inner barrel, rotary HOP-up unit, a quick change ball bearing spring guide, 19K RPM high-speed motor and the Zion Arms Nebula ETU to top it all off. The Nebula allows you to program the trigger for burst modes of different durations and also improves trigger response and rate of fire by reducing electrical resistance. If you have a mobile playstyle and appreciate a high speed SMG with phenomenal build quality you will definitely appreciate the Zion Arms PW9!

Full description

Description

The Zion Arms PW9 MOD.1 is based on the real steel R&D Precision PW9, a bufferless AR-9 SMG design which takes the best from the M4/AR-15 platform and shrinks it down into SMG form. Like its real steel brethren, the Zion Arms PW9 makes use of 7075 T6 aluminium in its precisely CNC machined receiver and handguard, giving you the low weight of CNC aluminium with the higher strength of 7075 Aircraft Alloy.

On the inside, the PW9 is equally impressive, boasting a reinforced version 2 gearbox with steel gears, 8mm ball bearing bushings, a steel quick change spring guide, 6.03mm tightbore inner barrel and the highly advanced Zion Arms Nebula ETU/MOSFET system. This AR-9 is no slouch in the performance department and is even ready for 11.1V LiPo batteries straight out of the box!

Starting at the front, we can find the seriously aggressive looking multi-port muzzle brake which is square in profile for that ultra modern aesthetic. The brake sits slightly recessed into the handguard for a clean, integral look and matches well with the handguard's weight-reducing vent ports which are cut at the same angle as the ports on the brake. If you plan to kit your PW9 out with a tracer unit for CQB instinct aiming or a suppressor for the sneaky look we are happy to report that this is easily done thanks to the 14mm CCW male threads at the tip of the 5-inch outer barrel.

The handguard is 6 inches in overall length and is a hybrid handguard with a 20mm Picatinny rail on its upper surface, M-LOK negative space attachment slots at 3 and 9 o'clock and a built-in angled foregrip and hand stop at the 6 o'clock position. This means plenty of room for mounting accessories, with reduced overall weight, leaning into the high speed nature of the PW9 design. The handguard has 2.5 M-LOK slots on either side, ready for M-LOK accessories or 20mm Picatinny rail adapters and also features a QD sling socket on either side, allowing for a quick detach sling setup to be used by adding QD sling swivels.

Next up, we reach the receiver which is constructed from CNC machined 7075 T6 aluminium, offering more strength than practically any other Airsoft receiver. If you are looking for an SMG you can be rough with, this would be it! The receiver design is based on real steel "billet" AR receivers and has weight-reducing grooves across the design to remove excess material as well as stylish angled cutouts to match the handguard ports and muzzle brake vents. The layout of the controls is the same as an M4/AR-15 platform, making for an easy transition for those who are already accustomed to AR ergonomics.

On the left side of the magazine well, we are treated to flawlessly engraved Zion Arms trademarks which are discrete and professional looking, just like those found on real AR-15 and AR-9 rifles. The right side of the handguard also boasts licenced trademarks from R&D Precision, manufacturers of the real steel PW9. The whole vibe of the PW9 is tidy and professional, giving it a "means business" look which would fit in well with any PSD, PMC or civilian tactical loadout.

The magazine release is enlarged and is also weight-reduced, located on the right side of the magazine well, easily within reach of the trigger finger when the SMG is held in a firing grip. The surface of the magazine release is serrated via the weight-reducing cuts, guaranteeing you won't miss the mag release during an urgent reload in wet conditions. The mock bolt release catch is over on the left side, in the centre of the receiver, and has similar weight-reducing cuts, matching the angle of the cuts and ports across the SMG for a completed look. The charging handle is at the top rear of the receiver and has an extended latch, meaning quicker and easier HOP-up unit adjustments mid-game.

The bolt release catch of the PW9 is functional, in that it allows you to release the mock bolt carrier following HOP-up adjustment. To adjust the HOP-up, simply pull the charging handle rearwards to lock the mock bolt back, exposing the rotary HOP-up adjuster inside the ejection port. The rotary HOP-up design is the latest for the M4/AR-15 platform and builds on the older gear adjuster system by providing finer adjustment increments and holding its setting more effectively over the long term. With your HOP-up adjusted for the flattest trajectory possible with your chosen BB weight, slap the bolt catch on the left side to send the mock bolt home with a satisfying "clack".

The fire selector switch is a modernised design which is slightly higher profile, complete with grip-enhancing grooves for improved wet weather performance and more positive fire selector manipulation. The selector offers 3 modes of fire; Safe, semi-automatic and fully automatic, with a 90-degree throw between each mode of fire. The fire selector can also be programmed for burst modes of various durations thanks to the pre-installed Zion Arms Nebula ETU/MOSFET. If you need information on how to program burst modes into the Nebula, click here.

The pistol grip is a modernised design with a reduced grip angle and filled out backstrap, patterned after the best of the best in real steel AR grips. With linear texture on the front and back straps and crackle texture on each side, this grip gives you the best chance to avoid throwing your primary when your hands are muddy or wet. The modern pistol grip pairs well with the enlarged KAC style trigger guard, allowing plenty of room for full-finger gloves and fast access to the flat "speed" trigger.

At the rear of the receiver, we come to the steel CQD style ambidextrous sling plate which fits between the rear of the receiver and the buffer tube. This allows single-point slings to be mounted easily on either the left or right side if you prefer that to the QD sling sockets on the handguard and stock. The PW9 is certainly light enough to be used effectively on a single-point bungee sling, tipping the scales at a minuscule 1.9KG despite its full metal construction.

Following the sling plate we come to the 6-position M4/AR-15 buffer tube; a familiar sight to most! The buffer tube offers 6 positions of adjustment for the A-frame stock, allowing the PW9 to be set up to suit any body type, loadout or shooting stance in mere seconds. The adjustment lever is well concealed inside the A-frame of the stock, meaning no chance of it getting snagged on your sling and inhibiting your gameplay. On either side of the stock, we have a QD sling socket, ready for QD sling swivels whenever you are, and an additional sling slot for conventional slings or home made paracord sling mounting solutions.

The buffer tube is constructed from aluminium and also serves as the battery compartment of the PW9. To access the compartment, simply pull the adjustment pin of the stock all the way out (its quite hard, we found the easiest way is to grab the two metal protrusions on each side and pull upwards with the gun inverted). With this done, the stock can be slid all the way off the rear of the buffer tube. Inside you will see the wiring and a Deans battery connector to which you mount your chosen battery. We recommend an 11.1V 1300mAh LiPo battery in stick configuration to take pure advantage of the Nebula ETU and its high performance with 11.1V LiPos.

The PW9 is considerably pre-upgraded on the inside, rivalling established platforms like the Specna Arms EDGE 2.0 line with its high end feature set. As mentioned, the Zion Arms Nebula ETU/MOSFET takes pride of place inside, offering the ability to program the trigger for burst modes of various lengths, binary trigger and semi only mode for DMR use. The spring guide allows for quick spring changes without opening the gearbox shell and is mounted on ball bearings to prolong its life and reduce rotational force transferred to the gearbox shell.

The Nebula is paired with 8mm ball bearing bushings for smooth, friction-free performance and to minimise strain on the gearbox shell. The steel gears have an 18:1 ratio and the motor is a 19k RPM high speed motor which uses neodymium magnets, promising a high rate of fire and near-instant trigger response, especially when used with an 11.1V LiPo. With this level of pre-upgraded parts, the Zion Arms PW9 is hot on the heels of the G&G ARP9 and Specna Arms SA-X series!

If you like to move fast and play aggressively and you need a pre-upgraded primary to suit your playstyle, the PW9 from Zion Arms is one of the best options out there. With phenomenal build quality making use of 7075 T6 aluminium and an internal feature set to rival the best, the PW9 makes choosing which AR-9 SMG to take to battle that much harder!

Features

  • Full metal construction
  • 6.03mm Tightbore inner barrel - Superb accuracy potential
  • 14mm CCW Male threaded outer barrel - Ready for tracer units or suppressors
  • Super aggressive muzzle brake pre-installed - Looks positively terrifying!
  • Zion Arms Nebula MOSFET/ETU pre-installed - Burst mode programming instructions here
  • 11.1V LiPo ready - Insane ROF & trigger response!
  • Rotary adjustable HOP-up unit - Holds its setting well during full auto fire
  • CNC 7075 T6 Aluminium handguard & receiver - Rock solid and super lightweight
  • 20mm Picatinny/M-LOK hybrid handguard - 20mm Picatinny rail at 12 o'clock, M-LOK at 3 & 9
  • Built-in angled foregrip & hand stop - Comfortable to hold straight out of the box
  • QD Sling sockets on either side of the handguard & stock - Set up a two-point QD sling with QD sling swivels
  • Uniquely designed receiver - Weight reduction throughout, extended controls and slick sides for reduced snags
  • Extended charging handle - Easy access to the HOP-up unit with or without gloves
  • Flat trigger with an enlarged trigger guard - Easy to double tap, fast access when the adrenaline is pumping
  • Ambidextrous CQD style sling plate - Steel construction, use a single-point sling from the left or right side
  • Ergonomic pistol grip with reduced grip angle - Perfect for modern shooting stances and CQB
  • Enlarged magazine release - Easy to find and very grippy thanks to its serrated surface
  • Functional mock bolt hold open/release - Drop the mock bolt with the bolt catch following HOP-up adjustment
  • 6-position M4/AR-15 buffer tube - Adjust the stock to suit any body type, compatible with M4/AR-15 stocks
  • A-Frame stock design - Reduced snag potential thanks to the design protecting the adjustment lever
  • Rear wired: Deans T-Plug battery connector - Lower resistance, stronger connector & smaller than mini-Tamiya
  • Compatible Magazines: PTS EPM-AR9 Magazines | Specna Arms X-Series S-MAG Mid-cap
  • Recommended battery: 11.1V 1300mAh LiPo Stick Battery with Deans connector

Package Includes

  • Zion Arms PW9 MOD.1 AR-9 SMG AEG; Short Handguard
  • 120rnd Mid-cap magazine
  • Speed Loader
  • PVC Patch
  • Cleaning Rod

Specification

General

Weapon Construction External
Weapon Type
Submachine Gun
Over 18 Only Icon
Over 18
Yes
Icon UKARA - United Kingdom Airsoft Retailer Association
Defence / UKARA Required
Yes, No,
FPS Icon
FPS (Feet Per Second), using 0.20g BB
Approx. 300fps ± 10%, using 0.20g BB
Site Legal Icon
Site Legal, using 0.20g BB
Yes
Screwdriver Icon
Pre-Built
Yes
Package
Included Items
  • Magazine
  • Cleaning Rod
  • Speed Loader
  • PVC Patch
Skill Level Icon
User Skill Level
Regular Player

Weight and Dimension

Weight KG Icon
Weight (KG)
Approx. 1.889kg
Weapon Length Collapsed
Length (Collapsed)
56.5cm
Weapon Length Extended
Length (Extended)
64.5cm

Construction

Colour Wheel Greyscale
Primary Colour
Black, Silver, Bronze,
Construction Icon
Construction
7075 T6 CNC Aluminium handguard & receiver. Alloy outer barrel & buffer tube. Steel mock bolt, sling plate, body pins & screws. Polymer pistol grip & stock
Weapon Construction External
External Construction
Polymer
Alloy
Aluminium
Steel
Gearbox Icon
Internal Construction
Polymer
Alloy
Aluminium
Steel

Weapon Specific

Power Source Icon
Powered By
Electric
Blowback Icon
Blowback
None
Weapon Platform
Long Gun, Submachine Gun, AR 9mm, AR-9,
Magazine Style Icon
Magazine Style
Long Gun Magazine, Submachine Gun, AR 9mm, PTS EPM-AR9, Specna Arms S-MAG for SA-X series,
Fire Select Icon
Fire Selector
PatrolBase | Fire Select Safe
Safe
Patrol Base | Fire Select - Semi Automatic
Semi Automatic
Patrol Base | Full Automatic
Full Automatic
Programmable
Weapon Safety Features Icon
Safety Features
Trigger Lock
Shooter Configuration Icon
Shooter Configuration
Right Handed
Weapon Configuration Icon
Weapon Configuration
Standard
Weapon Scale Icon
Weapon Scale
1:1
Suggested BB Weight
0.25g

Hop-Up

Hop-Up Unit Icon
Hop-Up Unit
Yes
Hop-Up Unit Adjuster Icon
Hop-Up Adjuster
Rotary
Hop-Up Unit Location Icon
Hop-Up Location
Behind mock bolt carrier, accessible when the charging handle is pulled and the mock bolt is locked to the rear.

Furniture

Weapon Furniture Icon
Furniture
  • Railed Handguard
  • AR Buffer Tube
  • Railed Receiver
  • Sliding Stock
  • Ergonomic Pistol Grip
  • QD Sling Point
  • Muzzle Brake
  • Ambidextrous Sling Plate
  • Extended Mag Release
  • Enlarged Trigger Guard
  • Extended Charging Handle
  • M-LOK Handguard
  • Angled front grip
Rail System Icon
Rail System
20mm RIS / RAS , 20mm Railed Receiver, M-LOK Rail system,
Icon Stock Positions
Stock Setting
Sliding , Multi-Position ,
Weapon Length Extended
Stock Positions
6 Position
Sight Type Icon
Sight Type
None
Sling Plate Icon
Sling Options
Buffer Plate , Stock , Handguard , QD , Loop ,

Barrel

Outer Barrel Length (in)
5.5''
Icon Thread Type
Outer Barrel Thread Type
Male
Icon Thread Direction
Outer Barrel Thread Direction
CCW (Counter Clockwise)
Outer Barrel Thread Size
14mm
Inner Barrel Diameter
6.03mm
Inner Barrel Length
150mm

Magazine Specific

Magazine Type
Medium Capacity , AEG,
Magazine BB Capacity
Approx. 120 Rounds
Magazine BB Fill Method
Speed Loader
Magazine BB Fill Location
Top

Electric Gun Specific Information

Gearbox
Gearbox Icon
Gearbox Version
V2 Gearbox
Wiring Icon
Gearbox Wiring
Rear Wired
Spring Change Icon
Gearbox Quick Change Spring
Yes
Digital Trigger Icon
Gearbox Electronic Trigger
Yes
Split Gearbox Icon
Split Gearbox Design
No
Motor
Airsoft Motor Icon
Motor Type
High Speed
Battery Specific
Battery Connector
Patrol Base | Icon | Deans
Deans
Compatible Battery
Compatible Battery Type
Li-Po
Compatible Battery Configuration
Stick
Compatible Battery Voltage
11.1v

Product Testing Data

Notepad Icon
Test Description
300 FPS +/- 10%
Notepad Icon
Tested Using
0.2g ASG BLASTER
Notepad Icon
Test Date
06/09/2023

Size guide

Joule Charts

Special Instructions

These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

Tap the tabs below to open the relevant chart for your replica.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
325 0.98 1.23 1.37 1.47 1.57 1.77 1.96 2.11 2.21 2.45
328 1.00 1.25 1.40 1.50 1.60 1.80 2.00 2.15 2.25 2.50
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
335 1.04 1.30 1.46 1.56 1.67 1.88 2.09 2.24 2.35 2.61
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
345 1.11 1.38 1.55 1.66 1.77 1.99 2.21 2.38 2.49 2.76
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
355 1.17 1.46 1.64 1.76 1.87 2.11 2.34 2.52 2.63 2.93
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90
420 1.64 2.05 2.29 2.46 2.62 2.95 3.28 3.52 3.69 4.10
430 1.72 2.15 2.40 2.58 2.75 3.09 3.44 3.69 3.86 4.29
440 1.80 2.25 2.52 2.70 2.88 3.24 3.60 3.87 4.05 4.50
450 1.88 2.35 2.63 2.82 3.01 3.39 3.76 4.04 4.23 4.70
460 1.97 2.46 2.75 2.95 3.15 3.54 3.93 4.23 4.42 4.91
470 2.05 2.57 2.87 3.08 3.28 3.69 4.10 4.41 4.62 5.13
480 2.14 2.68 3.00 3.21 3.42 3.85 4.28 4.60 4.82 5.35
490 2.23 2.79 3.12 3.35 3.57 4.02 4.46 4.80 5.02 5.58
500 2.32 2.90 3.25 3.48 3.72 4.18 4.65 4.99 5.23 5.81
510 2.42 3.02 3.38 3.62 3.87 4.35 4.83 5.20 5.44 6.04
