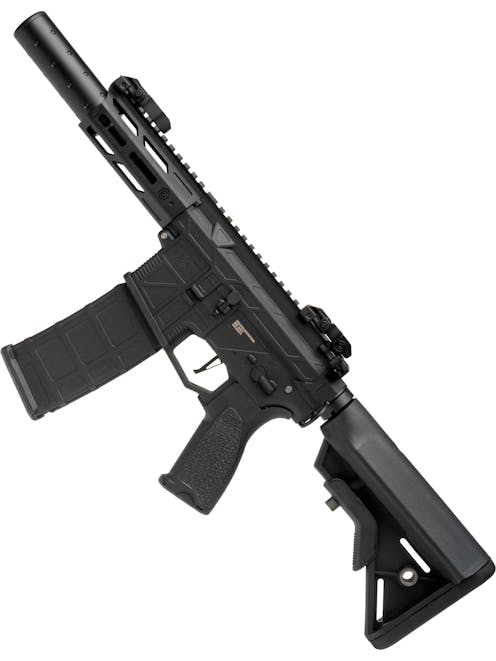

Evolution Ghost XS EMR Carbontech ETS II Smart Airsoft Gun

Evolution Airsoft
Code: EC29AR-ETS
£179.99
  • Programmable ETU pre-installed
  • High density Carbontech polymer receiver
  • 6.01mm Tightbore inner barrel

The Italian brand Evolution Airsoft has made a name for itself by providing pre-upgraded AEGs with superb quality externals, giving Airsofters what we always wanted; a gun we don't have to mess with! Though some live for the "thrill" of installing upgrades and hoping they work, for the rest of us, Evolution Airsoft has come through once again! The Smart Airsoft Gun series features the same impressive internals and rock solid externals as previous Carbontech AEGs, but with the new and improved ETS II installed. The Ghost XS is Evolution's compact PDW/CQB style AEG, equipped with a short outer barrel and sound amplifier, making it a solid choice for up close and personal encounters.

Full description

Description

The Evolution Airsoft SAG (Smart Airsoft Gun) series is Evolution's attempt to outdo themselves with a new and improved electronic trigger unit, known as the ETS II. The ETS II is fully programmable and can be set for binary fire in semi-auto, ramping semi-auto, i.e a short press for semi with a long press for full auto, bursts of varying durations and a sniper delay, a function which limits the semi-auto response to allow you to use your SAG as a bolt action sniper rifle. The ETS II also provides low battery protection, saving your battery from damage in case you forget to remove it after a game day, and active braking to protect the circuitry within the internals and prevent the motor from over spinning.

The ultra-short 4.5-inch outer barrel is constructed from alloy and comes equipped with a sound amplifying muzzle device to provide a booming muzzle report to keep heads down in CQB. This outer barrel is equipped with 14mm CCW male threads, meaning if you are more of a stealthy player, the sound amp can be switched out for a suppressor or tracer unit with ease.

The outer barrel is surrounded by Evolution Airsoft's EMR rail system, providing both M-LOK and Picatinny attachment surfaces. The handguard features M-LOK slots at the 3, 6, and 9 o'clock positions, with a 20mm Picatinny rail at the 12 o'clock position. This allows for flip-up iron sights to be mounted on the upper rail surface without the need for additional M-LOK to Picatinny rail adapters. The handguard's 12 o'clock rail integrates with the 20mm Picatinny receiver rail seamlessly, allowing for longer optical sights and red dot sight magnifier combinations to fit without issues, even on this super-compact AEG. This combination of M-LOK and Picatinny is a match made in heaven as far as weight savings are concerned and equips the Ghost XS EMR with the flexibility to add accessories whilst keeping its default configuration light for rapid snap-shooting.

The sight setup included with the Ghost XS EMR comes pre-installed on the rifles' upper rail, but thanks to the 20mm Picatinny attachment method, the sights can easily be removed and swapped out for your preferred sights. The included sights are a "Troy" inspired flip-up design, with both the front post and rear aperture being surrounded with alloy protective wings intended to prevent the sights from being damaged if scraped. To deploy the sights, simply press the button on the left side of either sight's base, and the sight can be raised by hand. Reversing this process will allow you to fold the sights back down for storage, or for using an optical sight. The front sight can be adjusted for elevation using an AR15 front sight adjustment tool, and the rear sight can be adjusted for windage using the dial on the right side of the sight body. The rear sight provides two apertures to choose from; a fine aperture for daylight use and semi-auto fire, and a wider aperture for use in low light or when hosing the enemy with full auto bursts!

As we reach the receiver we can find a modernised M4/AR15 style design, with all the lumps and bumps we know but with a new, reprofiled, angular look matching the ultra-modern design language expressed by the EMR handguard. The receiver is constructed from Evolution Airsoft's advanced Carbontech polymer, and is rock solid to the touch, with absolutely no flex whatsoever. This means weight in the receiver is kept to an absolute minimum and is even further reduced thanks to the weight-reducing cuts throughout all the usually flat areas of the AR receiver. Carbontech polymer was developed with the intention of providing metal-like strength but with the low weight and high scratch resistance of fibre reinforced polymers, meaning that your Evolution AEG's perfect finish will not be worn down from rubbing against gear, or scratched badly from a spot of clumsiness in the field.

The magazine release of the Ghost XS EMR can be found on the right side of the magazine well, and is surrounded by what is known as the "mag release fence". This protrusion in the receiver is intended to prevent the magazine release from being inadvertently pressed when the rifle rubs against gear and has appropriately been reprofiled with a modernised look. The fire selector can be found on the left side of the AEG, sitting right beneath the shooter's thumb when in a firing grip. This allows for the super-fast weapon manipulation the M4/AR15 platform is known for. Each fire mode is denoted by a recessed pictogram, with a crossed-out projectile for safe, a single projectile for semi-auto and a projectile with lines following to denote fully automatic. The selector lever requires a 90-degree throw between each mode of fire, making the Ghost XS EMR quick to operate without risking potentially slipping into the wrong mode of fire. The left side of the receiver also features a dummy bolt release catch. This part serves no function but is a separate part to add detail and realism to the build.

The charging handle can be found at the top centre of the receiver and features an extended latch to allow for fast access when a quick HOP-up adjustment is necessary. Pulling the charging handle back will pop open the dust cover on the right side, retracting the mock bolt carrier and revealing the rotary HOP-up adjuster, which will be visible through the now open mock ejection port. This device allows you to add backspin to your projectile and tune the Ghost XS EMR for the flattest trajectory with different ammo weights. The rotary adjuster style HOP-up unit is widely recognised as the best HOP-up unit design for the M4/AR15 platform, and when coupled with Evolution Airsoft's 6.01mm tightbore inner barrel it gives the Ghost XS EMR superb range and accuracy you wouldn't expect from a pocket-sized AEG.

Following the receiver, we come to the buffer tube which provides 6 positions of adjustment for the M4/AR15 crane style low profile stock. Between the receiver and the buffer tube, we can note the ambidextrous CQD sling plate, which allows single-point slings to be used by either left or right-handed shooters, and can be paired with an M-LOK front sling point (available separately) to allow for a 2 or 3 point sling to be used. The stock also includes steel QD sling points on either side, allowing a QD set-up to be used instead of the conventional sling plate. The stock itself is a crane inspired design with a slimline form and a comfortable cheek rest. The butt plate of the stock is rubber and features lattice checkering to ensure the stock stays solidly in your shoulder. This modernised stock pairs perfectly with the ergonomic pistol grip, which features a refined grip angle to make the rifle more comfortable to shoot with modern shooting stances. The grip also features crackle texture on either side, and linear texture on the front to ensure it does not slip out of your hand at a key moment.

The buffer tube is constructed from aluminium and doubles as the battery compartment of the Ghost XS EMR. To access the battery compartment, we will first need to remove the stock. This can be done by pulling the adjustment lever out and sliding the stock off the buffer tube to the rear. With this done we are presented with a Deans battery connector, a nice modern touch from Evolution Airsoft to maximise the electrical efficiency and allow for a higher rate of fire. The battery compartment is designed for buffer tube type stick batteries, and we recommend a 7.4V 1300mAh LiPo battery for the best fit.

Internally the Ghost XS EMR really excels, and when you check out what's inside this will come as no surprise! Like Evolution's previous offerings, the Ghost XS EMR sports reinforced steel gears powered by a high torque motor, kept in check by the excellent ETS II electronic trigger unit. The ETS II also helps boost the rate of fire and trigger response, protects the battery and circuitry within the AEG, and monitors the gearbox to ensure full cycles are being completed and that the motor does not over spin. Also built into the ETS II is the ability to program your fire controls; offering burst mode, binary trigger, ramping semi-auto and a sniper delay, giving this ETU some serious flexibility and customisation options.

To deliver the BBs onto the target, the Ghost XS EMR boasts a 6.01mm tightbore inner barrel combined with a rotary adjustable HOP-up unit, guaranteeing accuracy and the ability to reach out. The gearbox is also equipped with a quick removal spring guide, meaning if you decide to change your spring down the line the job will be a million times easier (trust us on this!).

If you are looking for a CQB optimised AEG with superb pre-upgraded internals, a lightweight, hard-wearing, modernised exterior with a plethora of customisation options, which is also as smart on the inside as it looks on the outside, the Ghost XS EMR is what you have been searching for! This would also make for an awesome sniper's backup weapon, though that may be overkill!

Features

  • Aluminium handguard and buffer tube
  • Alloy outer barrel with 14mm CCW male threads
  • Carbontech polymer receiver - Strong and scratch resistant
  • M-LOK handguard - Modern looks, low weight
  • "Troy" flip-up iron sights included
  • 20mm Picatinny railed receiver
  • 6.01mm Tightbore inner barrel
  • Rotary adjustable HOP-up unit
  • Quick-release spring guide
  • Reinforced steel gears
  • High torque motor
  • Deans battery connector
  • Sound amplifying muzzle device - BOOM BOOM!
  • Compact AEG - Great for CQB or sniper back-up
  • Steel ambidextrous CQD sling plate
  • Flat trigger - Looks cool, super fast as well!
  • Ergonomic pistol grip with a refined grip angle
  • Enlarged trigger guard - Great for gloves!
  • ETS II pre-installed - Progammable fire controls!

Package Includes

  • Evolution Airsoft Ghost XS EMR Carbontech ETS II Smart Airsoft Gun
  • 120rnd Medium Capacity Magazine
  • Quick start guide manual

Specification

General

Weapon Construction External
Weapon Type
Assault Rifle
Over 18 Only Icon
Over 18
Yes
Icon UKARA - United Kingdom Airsoft Retailer Association
Defence / UKARA Required
Yes, No,
FPS Icon
FPS (Feet Per Second), using 0.20g BB
Approx. 270fps ± 10%, using 0.20g BB
Site Legal Icon
Site Legal, using 0.20g BB
Yes
Screwdriver Icon
Pre-Built
Yes
Package
Included Items
Magazine
Skill Level Icon
User Skill Level
Starter, Regular Player,

Weight and Dimension

Weight KG Icon
Weight (KG)
Approx. 2.048kg
Weapon Length Collapsed
Length (Collapsed)
58cm
Weapon Length Extended
Length (Extended)
67cm

Construction

Colour Wheel Greyscale
Primary Colour
Black
Construction Icon
Construction
Carbontech polymer receiver. Aluminium handguard and buffer tube. Alloy outer barrel and trim parts. Steel sling plate, QD sling sockets, dust cover and body pins.
Weapon Construction External
External Construction
Polymer
Alloy
Aluminium
Steel
Carbontech
Gearbox Icon
Internal Construction
Polymer
Alloy
Aluminium
Steel

Weapon Specific

Power Source Icon
Powered By
Electric
Blowback Icon
Blowback
None
Weapon Platform
AR, M4 / AR-15 / M16, Assault Rifle,
Magazine Style Icon
Magazine Style
STANAG, Long Gun Magazine, Assault Rifle, M4 / AR Platform,
Fire Select Icon
Fire Selector
PatrolBase | Fire Select Safe
Safe
Patrol Base | Fire Select - Semi Automatic
Semi Automatic
Patrol Base | Full Automatic
Full Automatic
Programmable
Weapon Safety Features Icon
Safety Features
Trigger Lock
Shooter Configuration Icon
Shooter Configuration
Right Handed
Weapon Configuration Icon
Weapon Configuration
Standard
Weapon Scale Icon
Weapon Scale
1:1
Suggested BB Weight
0.25g

Hop-Up

Hop-Up Unit Icon
Hop-Up Unit
Yes
Hop-Up Unit Adjuster Icon
Hop-Up Adjuster
Rotary
Hop-Up Unit Location Icon
Hop-Up Location
Behind mock bolt carrier, accessible when the charging handle is pulled and held to the rear.

Furniture

Weapon Furniture Icon
Furniture
  • Railed Handguard
  • Flip-Up Ironsights
  • AR Buffer Tube
  • Railed Receiver
  • Sliding Stock
  • Muzzle Sound Amplifier
  • Ergonomic Pistol Grip
  • Enlarged Trigger Guard
  • Extended Charging Handle
  • Flat trigger
  • M-LOK Handguard
Rail System Icon
Rail System
20mm RIS / RAS , MLOK Rail System, 20mm Railed Receiver,
Icon Stock Positions
Stock Setting
Sliding
Weapon Length Extended
Stock Positions
6 Position
Sight Type Icon
Sight Type
Iron Sights , Aperture Iron Sight,
Sling Plate Icon
Sling Options
Buffer Plate , Stock , QD ,

Barrel

Outer Barrel Length (in)
4.5''
Icon Thread Type
Outer Barrel Thread Type
Male
Icon Thread Direction
Outer Barrel Thread Direction
CCW (Counter Clockwise)
Outer Barrel Thread Size
14mm
Inner Barrel Diameter
6.01mm
Inner Barrel Length
130mm

Magazine Specific

Magazine Type
Medium Capacity , AEG,
Magazine BB Capacity
Approx. 120 Rounds
Magazine BB Fill Method
Speed Loader
Magazine BB Fill Location
Top

Electric Gun Specific Information

Gearbox
Gearbox Icon
Gearbox Version
V2 Gearbox
Wiring Icon
Gearbox Wiring
Rear Wired
Spring Change Icon
Gearbox Quick Change Spring
Yes
Digital Trigger Icon
Gearbox Electronic Trigger
Yes
Split Gearbox Icon
Split Gearbox Design
No
Motor
Airsoft Motor Icon
Motor Type
High Torque
Battery Specific
Battery Connector
Patrol Base | Icon | Deans
Deans
Compatible Battery
Compatible Battery Type
Li-Po
Compatible Battery Configuration
Stick
Compatible Battery Voltage
7.4v

Product Testing Data

Notepad Icon
Test Description
270 FPS +/- 10%
Notepad Icon
Tested Using
0.2g ASG BLASTER
Notepad Icon
Test Date
05/04/2022

Size guide

Joule Charts

Special Instructions

These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

Tap the tabs below to open the relevant chart for your replica.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
325 0.98 1.23 1.37 1.47 1.57 1.77 1.96 2.11 2.21 2.45
328 1.00 1.25 1.40 1.50 1.60 1.80 2.00 2.15 2.25 2.50
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
335 1.04 1.30 1.46 1.56 1.67 1.88 2.09 2.24 2.35 2.61
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
345 1.11 1.38 1.55 1.66 1.77 1.99 2.21 2.38 2.49 2.76
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
355 1.17 1.46 1.64 1.76 1.87 2.11 2.34 2.52 2.63 2.93
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90
420 1.64 2.05 2.29 2.46 2.62 2.95 3.28 3.52 3.69 4.10
430 1.72 2.15 2.40 2.58 2.75 3.09 3.44 3.69 3.86 4.29
440 1.80 2.25 2.52 2.70 2.88 3.24 3.60 3.87 4.05 4.50
450 1.88 2.35 2.63 2.82 3.01 3.39 3.76 4.04 4.23 4.70
460 1.97 2.46 2.75 2.95 3.15 3.54 3.93 4.23 4.42 4.91
470 2.05 2.57 2.87 3.08 3.28 3.69 4.10 4.41 4.62 5.13
480 2.14 2.68 3.00 3.21 3.42 3.85 4.28 4.60 4.82 5.35
490 2.23 2.79 3.12 3.35 3.57 4.02 4.46 4.80 5.02 5.58
500 2.32 2.90 3.25 3.48 3.72 4.18 4.65 4.99 5.23 5.81
510 2.42 3.02 3.38 3.62 3.87 4.35 4.83 5.20 5.44 6.04
