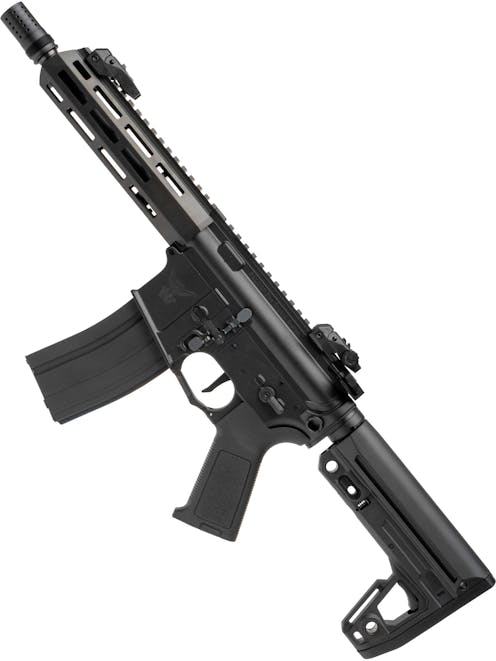

Double Eagle M906 Fire Control System Edition

Double Eagle
Code:
£169.99
  • Tactical Appearance
  • Alloy M-LOK Handguard
  • Hi-tech Internal Enhancements

The Double Eagle M90 range presents an innovative & unique range of AR-15 / M4 Airsoft replicas to the market, offering an inimitable exterior build quality with advanced next-gen internals and adorned with the latest in modern firearm furniture, so get your NODS on, it's about to get operator AF up in here.

Full description

Description

The Double Eagle M90 Range

The M90 range by double eagle offers an inexpensive and high-quality range of modern AR-15's for all Airsoft players. The replicas are constructed from a high-grade alloy and reinforced polymer, making for an extra ergonomic platform for ease of use/handling. Fitted with a new-age M-LOK handguard, a TS2 style stock and internally adorned with the latest in airsoft technology the DE M90 range is an all-around ready to go replica series suited to any and all players.

Starting at the muzzle, we can find an alloy flash hider/muzzle device, which attaches to the 14mm CCW male threads on the tip of the alloy outer barrel. Surrounding the outer barrel you will find an M-LOK handguard, a weight reducing design with plenty of space to add Picatinny rail or M-LOK accessories. The flip up iron sights can be found pre-installed on the upper Picatinny rail section of the handguard. These require manually deploying but are spring-assisted, meaning flipping these up or down takes less than a second.  The iron sights are made from high density polymer which helps keep the overall build light but effective. Both front and rear sight are fully adjustable without tools, and also provide low profile emergency pistol sights when folded down. The rear sight provides two apertures for aiming; a large aperture for CQB and close range, and a fine aperture for precise long range shots.

The M906 range provides a variety of external components, though between models the receiver and stock remain constant. The receiver is an ambidextrous AR15 pattern, with the mock ejection port present on the right side of the receiver complete with shell deflector and mock forward assist. The mock bolt carrier can be locked to the rear by pulling the ambidextrous charging handle, revealing the rotary HOP unit for adjustment. The mock bolt carrier can then be released either with the standard "ping pong paddle" on the left side of the receiver or with the ambidextrous extension on the right side, above and to the rear of the magazine catch. The magazine release is also present on either side, and is protected by a "mag catch fence" to prevent accidentally releasing the magazine. The mag releases appear where you might expect, on the mag well in perfect reach of the trigger finger, whether your strong hand is your left or right hand. The ambidextrous fire selector is a familiar AR15 type 3-position switch, allowing safe/semi/auto to be selected when the Falcon FCS is set to default. The selector markings are cast into the receiver on both sides, a useful touch since the selector appears on both sides! The trigger of the M90 series is a flat type with an acute curve at the tip, allowing a speedy trigger pull whilst preventing your finger from slipping off. The front face of the trigger is smooth, preventing you from wearing your fingerprints off whilst taking advantage of the M90 series fast trigger response. At the rear of the receiver, we can find two QD sling sockets cast into the design, keeping the rifles sling options in line with its ambidextrous nature whilst preventing the need for a buffer tube sling point and the additional weight which comes with it. The pistol grip is an ergonomic design, matching the MOE grip in angle and shape but with added texturing on either side to keep the rifle firmly in the shooter's grasp, regardless of the weather conditions. The buffer tube is a standard M4/AR15 6 position tube which is fully compatible with aftermarket stocks intended for buffer tube mounting. The supplied stock is a close replica of the TS2 stock, providing an ultra-sleek design intended to minimize the potential for snagging whilst providing a rubberized, angled butt plate for stability. The stock includes a further 4 QD sling sockets, providing even more options when setting up your sling. The stock slider button is a protected trigger type, preventing accidental knocks and bumps from messing with your stock setting and keeping the design ultra-low profile. The receiver also features engraved markings, reading " FALCON Fire Control System" across the left side of the upper receiver, and "DOUBLE EAGLE 5.56mm" along with a DE logo on the left side of the magazine well. These engravings are very crisp and subtle, keeping in tune with the rifle's overall aesthetic. Detailed specs for the front end of the M90 series can be found below:


Externals

The M90 range of AR's has had a visit from the tactical fairy of modern firearm innovation, rocking sleek & slimline M-LOK handguards along with new-age muzzle devices the M90's offer a modern-day operator aesthetic to players alike.

M906-C

  • Handguard: M-LOK - URX Style
  • Handguard: 18cm / 7.2 inch
  • Handguard: QD points / Left & Right
  • Flash Hider: SF 3-Prong Style - Black
  • Flash Hider: 14mm CCW
  • Flash Hider: Grub Screw - Yes
  • Front Sight: Flip-up
  • Receiver: Standard - Ambi
  • Receiver: QD points / Left & Right
  • Grip: Ergonomic - Black
  • Buffer Tube: Yes - 6 Position

M906-D

  • Handguard: M-LOK - URX Style
  • Handguard: 31cm / 12.3 inch
  • Flash Hider: 556 Blast Style
  • Flash Hider: 14mm CCW
  • Flash Hider: Grub Screw - Yes
  • Front Sight: Flip Up
  • Receiver: Standard - Ambi
  • Receiver: QD points / Left & Right
  • Grip: Ergonomic - Black
  • Buffer Tube: Yes - 6 Position

M906-E

  • Handguard: M-LOK - BCM Style
  • Handguard: 18cm / 7.2 inch
  • Flash Hider: SF 3-Prong Style - Black
  • Flash Hider: 14mm CCW
  • Flash Hider: Grub Screw - Yes
  • Front Sight: Flip-up
  • Receiver: Standard - Ambi
  • Receiver: QD points / Left & Right
  • Grip: Ergonomic - Black
  • Buffer Tube: Yes - 6 Position

Internals

Though the externals are gorgeously done, the magic truly happens inside the M90 series. Double Eagle's own FALCON EFCS Fire Control System comes pre-installed in the rifles version.2 gearbox. Usually only seen in custom builds and high-end AEGs this feature is a welcome inclusion, allowing for 1-5 round burst mode, a binary trigger, as well as various wiring and battery protection features to boot. The 1-5 round burst mode and binary trigger settings can also be set at the same time, with binary being used to replace semi-auto mode, and 1-5 round burst replacing the full auto mode. The fire control system is designed to be used with Li-Po batteries and prevents the replica from firing when it detects a current draw spike, or if the battery voltage is too low. Please note that an 11.1v LiPo is only recommended by the manufacturer on the grounds that the replica is firing above 390FPS. As your purchase will be firing at less than this out of the box, please avoid the use of an 11.1v Battery. The EFCS fire control system can be programmed using simple trigger pulls and requires no external tools, special adapters or a PC to function. For more information please see the Special Instructions Section.

The M90 series features an up-to-date rotary HOP unit, which sports full compatibility with aftermarket AEG HOP buckings and nubs. The rotary design allows the level of backspin to be adjusted easily, and prevents the setting from being unwinding under vibration from firing. The inner barrel is of a standard AEG type, allowing it to easily be replaced with a tight bore aftermarket barrel should you want to increase the accuracy potential of your M90 rifle.

As well equipped externally as it is internally, the Double Eagle M90 series really is an unexpected advancement at this price point. Offering an advanced FCS, modern rotary HOP unit and top quality externals the M90 series are hot on the heels of high end manufacturers! If you are looking for an advanced, high-performance and affordable AEG without peers as your next gun, look no further!

Features

  • Rotary HOP unit
  • FALCON EFCS pre-installed
  • M-LOK Railed Handguard
  • Picatinny railed receiver
  • Fully Ambidextrous controls
  • TS2 Compact slimline stock
  • Ambidextrous pistol grip
  • Spring-assisted flip-up sights
  • QD sling sockets throughout
  • Enlarged trigger guard for gloved use
  • Advanced design - Internally and externally

Package Includes

  • Double Eagle M906 Fire Control System edition
  • 300 Round high capacity magazine
  • Instruction manual
  • Deans to Mini-Tamiya adaptor

Specification

General

Weapon Construction External
Weapon Type
Assault Rifle
Over 18 Only Icon
Over 18
Yes
Icon UKARA - United Kingdom Airsoft Retailer Association
Defence / UKARA Required
Yes, No,
FPS Icon
FPS (Feet Per Second), using 0.20g BB
Approx. 326fps ± 10%, using 0.20g BB
Site Legal Icon
Site Legal, using 0.20g BB
Yes
Screwdriver Icon
Pre-Built
Yes
Package
Included Items
Magazine
Skill Level Icon
User Skill Level
Starter, Regular Player,

Weight and Dimension

Weight KG Icon
Weight (KG)
Approx. 2.21kg, Approx. 2.4kg,
Weapon Length Collapsed
Length (Collapsed)
64cm, 72cm, 62cm,
Weapon Length Extended
Length (Extended)
72cm, 80cm, 70cm,

Construction

Colour Wheel Greyscale
Primary Colour
Black
Two Tone Icon
Pre Two-Toned
No
Construction Icon
Construction
Alloy & Polymer
Weapon Construction External
External Construction
Polymer
Alloy
Aluminium
Steel
Gearbox Icon
Internal Construction
Polymer
Alloy
Aluminium
Steel

Weapon Specific

Power Source Icon
Powered By
Electric
Blowback Icon
Blowback
None
Weapon Platform
AR Platform, M4 / AR15 / M16, Assault Rifle,
Magazine Style Icon
Magazine Style
M4 / AR Platform
Fire Select Icon
Fire Selector
PatrolBase | Fire Select Safe
Safe
Patrol Base | Fire Select - Semi Automatic
Semi Automatic
Patrol Base | Full Automatic
Full Automatic
Weapon Safety Features Icon
Safety Features
Trigger Lock
Shooter Configuration Icon
Shooter Configuration
Ambidextrous
Weapon Configuration Icon
Weapon Configuration
Standard
Weapon Scale Icon
Weapon Scale
1:1
Suggested BB Weight
0.25g

Hop-Up

Hop-Up Unit Icon
Hop-Up Unit
Yes
Hop-Up Unit Adjuster Icon
Hop-Up Adjuster
Rotary
Hop-Up Unit Location Icon
Hop-Up Location
Inside mock ejection port, accessible when mock bolt is locked to the rear

Furniture

Weapon Furniture Icon
Furniture
  • Flip-Up Ironsights
  • AR Buffer Tube
  • Railed Receiver
  • Ambidextrous Charging Handle
  • Flash Hider
  • Ambidextrous Fire Selector
  • MLOK Rail System
  • Ambidextrous Bolt Release
  • Ergonomic Pistol Grip
  • QD Sling Point
  • Flat trigger
Rail System Icon
Rail System
MLOK Rail System
Icon Stock Positions
Stock Setting
Adjustable
Weapon Length Extended
Stock Positions
6 Position
Sight Type Icon
Sight Type
Iron Sights , Aperture Iron Sight,
Sling Plate Icon
Sling Options
QD

Barrel

Outer Barrel Length (in)
8'', 12'',
Icon Thread Type
Outer Barrel Thread Type
Male
Icon Thread Direction
Outer Barrel Thread Direction
CCW (Counter Clockwise)
Outer Barrel Thread Size
14mm
Inner Barrel Length
210mm, 300mm,

Magazine Specific

Magazine Type
AEG
Magazine BB Capacity
Approx. 300 Rounds
Magazine BB Fill Method
Fill Window
Magazine BB Fill Location
Top

Electric Gun Specific Information

Gearbox
Gearbox Icon
Gearbox Version
V2 Gearbox
Wiring Icon
Gearbox Wiring
Rear Wired
Spring Change Icon
Gearbox Quick Change Spring
Yes
Digital Trigger Icon
Gearbox Electronic Trigger
Yes
Motor
Airsoft Motor Icon
Motor Type
Standard
Battery Specific
Battery Connector
Patrol Base | Icon | Deans
Deans
Suggested Battery
Suggested Battery Type
Li-Po
Suggested Battery Configuration
Stick
Suggested Battery Voltage
7.4v

Product Testing Data

Notepad Icon
Test Description
326FPS 0.20G + / - 10%
Notepad Icon
Tested Using
0.20
Notepad Icon
Test Date
20/9/21

Detailed Power Tests

FPS
FPS, using 0.20g BB
Approx. 326fps, using 0.20g BB

Further Information

Special Instructions

Please note that the gun's EFCS system is only compatible with 7.4v LiPo and 11.1v LiPo, and is not compatible with LiFe or NiMh battery.

Please note that both binary fire and burst modes can be set, as binary fire is applied to semi, and 1-5 fire mode is applied to full auto.

Please note that fitting the supplied deans connector will constitute a modification of the replica, and will not be able to be returned.

FALCON EFCS Protection Feature

Gearbox Protection

When the current is too high or abnormal the power supply on the EFCS will disconnect to protect the motor and battery, and the motor will vibrate three times.

If the voltage of the battery is too high the EFCS power supply will automatically disconnect and the motor will vibrate two times.

Battery Protection

The FALCON is compatible with 7.4v and 11.1v LiPo battery only, with an operating voltage between 6-13v. If the voltage is too low or too high the power supply will be cut.

When using an 11.1v LiPo the low voltage protection system will notify the user via 5 vibrations, indicating the battery's voltage is too low to be used.

Vibration Description

  • 1 - Power On
  • 2 - System Error
  • 3 - Voltage too high
  • 5 - Low Voltage

Falcon Electronic Fire Control System

1-5 Shot Mode

  • Set the fire select to SAFE.
  • Pull the trigger and hold for 3 seconds to enter programming mode, and release when the motor makes a sound.
  • Pull the trigger once and release to enter 1-5 shot programming mode, release when the motor makes a sound.
  • Pull the trigger 1-5 times depending on the amount of shots you want a single trigger pull to make.
  • Set the fire select to full auto.

Trigger Sensitivity

  • Set the fire select to SAFE.
  • Pull the trigger and hold for 3 seconds to enter programming mode, and release when the motor makes a sound.
  • Pull the trigger twice and release to enter sensitivity programming mode, release when the motor makes a sound.
  • Pull the trigger between 1-3 times for different levels of sensitivity.
    • 1 - Highest Sensitivity
    • 2 - Standard Sensitivity
    • 3 - Low Sensitivity

Binary Fire Mode

  • Set the fire select to SAFE.
  • Pull the trigger and hold for 3 seconds to enter programming mode, and release when the motor makes a sound.
  • Pull the trigger three times and release to enter Binary trigger programming mode, release when the motor makes a sound.
  • Set the fire selector to semi-auto
  • Repeat the same process to disable Binary trigger mode

Reset to Default

  • Set the fire select to SAFE.
  • Pull the trigger and hold for 5 seconds to reset all settings.

The externals of the replica are metal where they would be on the real world gun. This includes things like the outer barrel, handguard, and receiver. If a real world gun has polymer parts then the gun will still be marked as full metal externals, examples of this would be an M4, where the Stock and Pistol grip are always made from Polymer.

Size guide

Joule Charts

Special Instructions

These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

Tap the tabs below to open the relevant chart for your replica.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
325 0.98 1.23 1.37 1.47 1.57 1.77 1.96 2.11 2.21 2.45
328 1.00 1.25 1.40 1.50 1.60 1.80 2.00 2.15 2.25 2.50
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
335 1.04 1.30 1.46 1.56 1.67 1.88 2.09 2.24 2.35 2.61
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
345 1.11 1.38 1.55 1.66 1.77 1.99 2.21 2.38 2.49 2.76
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
355 1.17 1.46 1.64 1.76 1.87 2.11 2.34 2.52 2.63 2.93
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90
420 1.64 2.05 2.29 2.46 2.62 2.95 3.28 3.52 3.69 4.10
430 1.72 2.15 2.40 2.58 2.75 3.09 3.44 3.69 3.86 4.29
440 1.80 2.25 2.52 2.70 2.88 3.24 3.60 3.87 4.05 4.50
450 1.88 2.35 2.63 2.82 3.01 3.39 3.76 4.04 4.23 4.70
460 1.97 2.46 2.75 2.95 3.15 3.54 3.93 4.23 4.42 4.91
470 2.05 2.57 2.87 3.08 3.28 3.69 4.10 4.41 4.62 5.13
480 2.14 2.68 3.00 3.21 3.42 3.85 4.28 4.60 4.82 5.35
490 2.23 2.79 3.12 3.35 3.57 4.02 4.46 4.80 5.02 5.58
500 2.32 2.90 3.25 3.48 3.72 4.18 4.65 4.99 5.23 5.81
510 2.42 3.02 3.38 3.62 3.87 4.35 4.83 5.20 5.44 6.04

Need ideas for something extra?

Like this Airsoft Gun? Check out these awesome Products!
