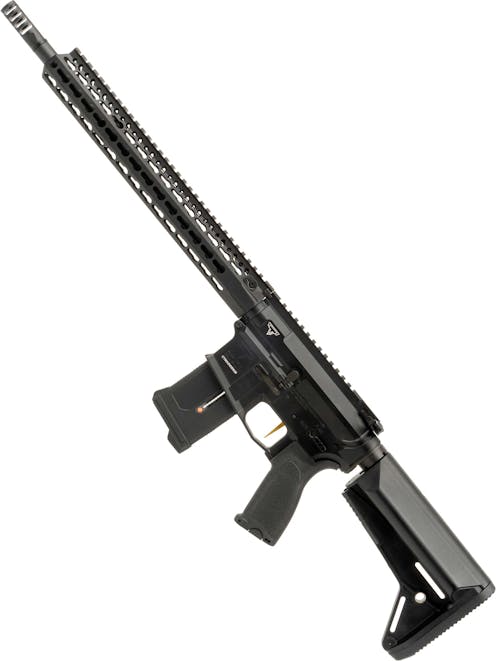

Bolster Tuned TTI JW2 M4/AR-15 AEG Replica

Bolster Tuned
Code: BT-TTI-JW2
£699.99
  • Full metal construction
  • Professionally tuned by Bolster Armouries
  • Gate ASTER MOSFET & Warhead 27K Base motor

Introducing the Bolster Tuned TTI JW2 M4/AR-15, a professionally upgraded AEG platform based on the EMG TTI JW2, boasting many of the biggest names in aftermarket upgrade parts put together by the same talented techs that brought you Bolster Armouries. Unlike other custom Airsoft gun services, Bolster Tuned platforms are all pre-built and ready to ship the next day with no lead time!

The Tuned JW2 builds upon the already impressive base platform and irons out all the creases, adding in a plethora of low friction, high strength enhancements to the gearbox itself. These include an FPS Softair O-ring equipped air nozzle and carbon fibre reinforced tappet plate, Bolster's own EZO bearings, M115 spring and stainless steel sector gear screws, a Laylax Hard Selector plate and the gorgeous Gate Quantum flat blade trigger.

The Quantum is paired with the incredibly advanced Gate ASTER MOSFET, offering 250 different trigger sensitivity settings, pre-cocking, programmable fire controls and much more via the Gate USB link or Gate Control Station app. To deliver the speed it needs to bury the original EMG CYMA Platinum JW2, the Bolster team saw fit to install the Warhead Base 27K Brushless motor, providing unparalleled heat dispersion qualities and speed to rival the very best.

With upgrades added and work done, the price has increased, but by a far smaller margin than it would if you took a stock JW2 to a technician and paid for this amount of work to be done. Finally, we can pick up and play with an exceptionally well-built AEG with all the fine-tuning necessary for exceptional performance already complete, and done with care, to an exacting standard. When we tested this AEG we were flabbergasted. 348 FPS on the dot with remarkable consistency, 60m+ effective range and an absolutely scary rate of fire of 25 rounds per second using an 11.1V Lipo; more than enough to outshoot anything else you can buy off the shelf!

Full description

Description

The Original EMG CYMA Platinum JW2 AR-15 AEG

On the outside, the JW2 is a 1:1 match for the real steel, boasting the correct smooth profiled 14.5-inch barrel, BCM KMR Alpha style 13" KeyMod handguard, VLTOR style MUR-1 upper receiver, Aero style M4E1 lower receiver complete with TTI markings and a highly detailed replica of the TTI GM Interceptor Compensator at the tip, furnishing the JW2 with its distinctly aggressive aesthetic.

Being pre-upgraded with the CYMA Platinum MOSFET, a 6.03mm tightbore inner barrel, a high speed motor and a reinforced version 2 gearbox absolutely brimming with enhanced gearbox internals, the EMG JW2 is as slick on the inside as it is externally and will certainly bring the heat when it comes to exchanging plastic with your skirmish foes. To pair with a John Wick pistol or otherwise, the JW2 M4/AR-15 would make a fantastic primary for a skirmisher who needs ranged performance in a platform that points quickly and handles perfectly.

Starting at the front, we have a flawlessly machined TTI GM Interceptor Compensator replica complete with a recessed Taran Tactical "TTI" logo engraved on its upper surface. The multi-port design of this compensator gives the JW2 a menacing look and leans into its competition shooting origins, though it can be replaced with a tracer unit or suppressor thanks to the 14mm CCW male threading at the outer barrel's tip. Just remember to remove the grub screw before attempting to unscrew the compensator, otherwise, you will damage the barrel threads.

The outer barrel itself is constructed from alloy and is the correct smooth profiled design to suit a high end civilian AR build. Mounted to the barrel and hidden beneath the handguard we are treated to a dummy gas tube and gas block, completing the realistic looks of the JW2 and giving the stitch counters what they demand. The gas block and gas tube serve no function in an Airsoft AEG but as anyone familiar with the M4/AR-15 platform will know, they are an essential working part of the real rifle and thus, essential for any replica with an emphasis on realism.

The handguard replicates the real steel BCM KMR Alpha handguard, matching the real steel JW2 build perfectly and offering KeyMod negative space attachment slots at the 3, 6 and 9 o'clock positions with additional slots at the offset angles for even more accessory mounting options. Offset KeyMod slots mean you can mount a flashlight so that it sits tighter to the handguard, reducing snag potential and saving you a few quid by avoiding the need for an offset light mount. The top of the handguard also features a 20mm Picatinny rail which meets the receiver rail seamlessly and is even keyed into the upper for a rock solid feel and absolutely no chance of the handguard developing wobble or loosening over time.

Moving on to the receiver, we can see a familiar silhouette; the eternal M4/AR-15 receiver. This receiver provides the familiar feel any AR user will appreciate but both the upper and lower receivers are patterned after real steel enhanced receivers. The upper receiver is based on the VLTOR MUR-1, a modernised AR receiver with weight reduction and strength improvements built in, along with the angled surfaces that mark it out as an enhanced upper. The lower receiver is patterned after the real steel Aero M4E1 lower, boasting a reprofiled magazine catch fence, a flared magazine well and a built-in enlarged trigger guard for strength improvements and easy trigger access when wearing gloves.

As we might well expect for a licenced TTI design, both the upper and lower receiver are adorned with TTI trademarks. The TTI logo is displayed prominently on the right side of the magazine well and on both sides of the upper, and an additional engraved TTI logo along with the model number and real steel calibre are displayed on the left side of the mag well.

The markings on the magazine well read "MOD: TR-1" with "CAL: MULTI" engraved just below. Just above the fire selector switch on the left side, we have yet more realistic trademarks reading "TARAN TACTICAL INNOVATIONS" with "SIMI VALLEY, CA" below. The only external hint that the JW2 is an Airsoft replica is the unique serial number found below the calibre marking, reading "CYMA" with your unique serial following after in laser engraved white.

As far as layout is concerned, the controls of the JW2 are right where we would expect them. The fire selector is positioned on the left side of the lower receiver, just above the pistol grip, and has a 90-degree throw between each mode with SAFE - FIRE - AUTO markings to indicate your current mode.

The magazine release is over on the right side, being the standard M4/AR-15 push button design sitting well within reach of the shooter's trigger finger when the rifle is held in a firing grip. The dummy bolt catch is located on the centre left of the receiver, taking the form of the standard AR "ping pong paddle" catch, and is functional in that it allows you to drop the mock bolt carrier with a satisfying "clank" following HOP-up adjustment.

The charging handle is located at the top rear of the receiver and is an ambidextrous design, functional when pulled from either the left or right side of the rifle. Pulling the charging handle will open the dust cover on the right side of the upper receiver and retract the mock bolt carrier, revealing the alloy rotary adjustable HOP-up unit.

The HOP-up allows you to tune the JW2 for different ammo weights and extend your range, seeking the flattest possible trajectory. As mentioned, when your HOP-up adjustment is applied you can release the mock bolt using the bolt catch. The mock bolt itself is finished in TTI's iconic metallic bronze, adding a nice bit of visual interest to the design and making the JW2 the perfect pairing for a JW2, JW3 or JW4 pistol.

The furniture of the JW2 represents all of the best in 21st-century rifle ergonomics. The BCM-style pistol grip boasts textured sides and linear texture on the front, a more vertical angle than standard AR grips and a filled-out back strap to effectively support the hand and encourage a consistent shooting position. The refined grip angle means you will experience less wrist strain when shooting with the stock collapsed all the way and comfort with modern "square" shooting stances is considerably improved when compared to the old "A2" M4 pistol grip. The BCM grip also features on the on-screen JW2 rifle, fitting in nicely with the rest of the JW2's authentic details.

The stock is a modernised low-profile design with an ambidextrous QD sling socket built-in, allowing you to fit a QD sling swivel and mount a modern, quick detachable sling setup. The rubber butt plate allows the stock to lock firmly to any body armour or tactical vest you are using so you can shoulder the JW2 with confidence, and also improves wet weather traction so you never slip off target when skirmishing in the lovely British weather.

To provide a comfortable cheek weld, the cheek piece is sloped similarly to the M4 Crane stock and this also has the added benefit of providing extra battery space so you can run the JW2 all day on a single battery. The low profile adjustment lever is located on the bottom of the stock, at the front, and needs to be held down to slide the stock into your desired position of adjustment. The pre-installed M4/AR-15 buffer tube allows for 6 different positions of adjustment, meaning you can set the stock for the perfect length of pull to suit your body type, stance and loadout.

Accessing the battery compartment of the JW2 is remarkably easy; all you need to do is pull the catch on the centre of the butt plate down and the butt plate will hinge open. Inside you will find a Deans battery connector to which you mount your chosen battery. We recommend an 11.1V 1450mAh LiPo battery for an easy fit and great performance, though you may be able to fit a larger battery inside if you are careful when installing it.

Tuning and Internal Upgrades by Bolster Armouries

As with previous Bolster Tuned builds (formerly known as Patrol Base X Gate ASTER edition), this isn't your usual upgraded AEG. The Bolster Armouries tech team fully disassemble each of these AEGs down to every screw, bolt and bushing to perfectly tune the internals, polish the piston tracks and bearing holes, shim the gears to absolute perfection and replace parts to address the weak points in the original platform. The Bolster techs treat these AEGs like they are building them for themselves, and if it doesn't pass their rigorous checks, which include a 60m accuracy test, it goes back to the bench for more work.

The Gate ASTER MOSFET is the star of the show, replacing the basic CYMA MOSFET in the original with an alternative with enough computing power that it could put men on the moon. The ASTER boasts programmable fire controls through the Gate Control Station app, Gate Blu-Link or Gate USB Link, adjustable pre-cocking for a ferocious trigger response in semi-auto, cycle timing control, adaptive active braking, adjustable trigger sensitivity, and voltage control, all of which combine to give this gorgeously built licenced replica a wealth of functionality that is hard to beat.

Installing the ASTER requires modification of the gearbox shell and selector plate for compatibility with the ASTER's optical sensors. Copper is no longer used on the selector plate, and is instead replaced with an ASTER sticker to allow the optical sensors to detect its position, and adjust the fire mode accordingly. This has the benefit of being more reliable than a traditional selector plate, as the use of optical sensors takes corrosion which usually develops on electrical contacts out of the equation completely.

In the latest line of Bolster Tuned custom AEGs, the ASTER is paired with its perfect partner; the Gate Quantum Flat Blade Trigger. The Quantum is constructed from CNC machined aluminium and is finished with a metallic yellow anodised coating, adding a bit of subtle flair to the JW2 in line with its 3-Gun origins.

The combination of the Quantum and ASTER gives you access to an impressive 250 different trigger sensitivity options, from a hair trigger all the way up to a more realistic full trigger pull. Designed to eliminate the need for mechanical trigger linkage, instead relying on the ASTER's optical sensors, the Quantum is probably the best trigger on the market for an AEG and is a vast improvement over the standard JW2 trigger.

Known for innovation and pushing the limits of Airsoft performance, Warhead Industries provides the motor for the Bolster Tuned JW2; utilizing the most up-to-date technology to provide a previously unheard of torque to weight ratio, and impressive heat dispersion.

The motor installed is the Warhead Base 27K Brushless Motor, offering a super speedy motor which uses high strength, SH-rated Neodymium magnets. Being a brushless motor, the Warhead Base simply doesn't heat up as the only friction generated inside is with the air, keeping this cool and allowing you to let off some seriously long bursts guilt-free. The Warhead moves the JW2 up to the next level of Airsoft performance and puts it hot on the heels of the full-fat Bolster Armouries ONYX, ARKOSE, ATLAS and OBIRE builds.

With an astonishing rate of fire as the goal, both the tappet plate and nozzle needed replacing to give the Bolster Tuned JW2 incredible performance which will last a lifetime. The FPS Softair's Carbon Fibre Reinforced tappet plate paired with its O-ring equipped air nozzle ensures feeding is consistent and nozzle alignment is flawless, allowing you to dump mag after mag with the assurance you aren't pushing the AEG beyond its design parameters.

As with previous Bolster Tuned builds, the CYMA 6.03mm tightbore inner barrel has been thoroughly cleaned and polished to perfection. Not being the types to trust Chinese quality control, the Bolster techs inspect every barrel for imperfections and once each platform is built, it is put through a 60m meter accuracy test, and if it can't meet the mark it goes back to the bench for more work. Even tight-bore barrels can have internal flaws which affect accuracy when mass-produced, and the internal overhaul given to the Bolster Tuned JW2 guarantees that you will get a good, smooth barrel with a flawless inner surface.

To aid in getting the JW2 to hit that 60m benchmark, the Bolster team has added their favourite HOP-up rubber into the mix; the Laylax/Prometheus Purple HOP-up bucking and nub, also known as the "Prommy Purple". Naturally, these guys cannot touch an AEG without installing the phenomenal Prometheus Purple HOP-up bucking and nub inside! The Prometheus bucking is based on the original Tokyo Marui design but comprised of more hard-wearing and temperature-resistant materials and is a big part of what allows the Tuned JW2 to absolutely destroy the original when it comes to range and accuracy.

The Bolster Armouries M115 spring is fitted; manufactured to the exact specifications of the Bolster team to provide the perfect velocity for either indoor or outdoor skirmishes, giving us a healthy 347 FPS with perfect consistency. Also present in the build are Bolster Armouries Sector Gear Screws, joining the two pieces of the sector gear together, replacing tiny parts many manufacturers skimp out on.

Bolster Armouries EZO Bearings, manufactured by Sapparo Precision Inc. in Japan, specialists in miniature ball bearings, replace the original CYMA bearings, improving the lifespan of the JW2 by adding stronger bearings to cope with additional stress placed on the gears. EZO Bearings perfectly combine low friction with high strength and are a great alternative to standard ball bearing bushings which can often break when subjected to minigun-like rates of fire.

The tuning process results in an AEG that hits out far further and faster than the original CYMA; with a 60m+ effective range with the HOP-up set using G&G Competition Grade 0.28G BBs and a phenomenal 25 rounds per second with an 11.1V LiPo battery. What makes this even better is that the installation of the many upgrade parts in a Bolster Tuned build does not result in you losing your 12-month warranty.

Other techs rarely offer a warranty on their jobs and this often means that your upgraded gun shoots amazingly for its first few months but after that, you are on your own. Bolster Tuned builds are great for those who don't want to worry about whether they chose the right parts or the right tech; the parts have been chosen for you and the Bolster Armouries techs who build these are confident enough in their work that they can offer you a full warranty on the completed build.

Whether you are a performance-seeking John Wick fan or you are simply looking for a thoroughly pre-upgraded AR platform to give the enemy what for, the Bolster Tuned TTI JW2 M4/AR-15 AEG will serve you well and outdoes the average AEG by a considerable margin. With gorgeous externals provided by CYMA Platinum and Taran Tactical trademarks licenced through EMG, this platform was already impressive, but with the finishing touches carried out by Bolster Armouries providing the intense performance a JW platform deserves, the Bolster Tuned JW2 has it all!

Features

  • Full metal construction
  • Flawless Taran Tactical Trademarks - Authentic, licenced build
  • Flat Gate Quantum trigger - Great for rapid semi-auto fire
  • BCM KeyMod Handguard - A perfect replica of the real steel BCM KMR Alpha
  • Rotary Adjustable HOP-up unit
  • Quick change spring system
  • VLTOR MUR-1 Upper with Aero M4e1 Lower - Matches the real JW2 build perfectly
  • TTI GM Interceptor Compensator replica pre-installed - Looks phenomenal, engraved TTI logo on the top
  • Ambidextrous fire selector - Semi-auto is set to pre-cocking, full auto normal cycle
  • 6.03mm Tightbore inner barrel - Inspected for flaws and polished
  • Sliding Stock battery compartment - Fits 11.1V 25C 1450mAh Crane battery

Internal Upgrades & Tuning

  • Gate ASTER ETU Pre-installed
  • Pre-cocking in semi-automatic mode
  • Prometheus Purple HOP-up Bucking & Nub
  • Laylax Hard Selector Plate
  • Expertly Shimmed - Ultra smooth cycling
  • Bolster Armouries CNC Selector, EZO Bearings, Stainless steel sector gear screws & M115 Spring
  • Gearbox shell flaws removed and engagement surfaces polished
  • Gate Quantum trigger - Adjustable sensitivity via ASTER's optical sensors
  • FPS Softair Air Nozzle with O-ring & Carbon Fibre reinforced tappet plate
  • AOE Corrected - 11.1V LiPo ready
  • Warhead Industries 27K Base Brushless Motor - Phenomenal speed and low heat build-up
  • 60m+ Effective range on 0.28g BBs - Outstanding
  • 25 RPS in Full Auto - BRRRRRRRRRRT
  • 348FPS consistently - Great for outdoors work
  • Expertly built by the Bolster Armouries Tech Team

Package Includes

  • Bolster Tuned TTI JW2 M4/AR-15 AEG Replica
  • PTS Syndicate 170rnd EPM-1 Short Mid-cap Magazine
  • User manual


    Specification

    General

    Weapon Construction External
    Weapon Type
    Assault Rifle
    Over 18 Only Icon
    Over 18
    Yes
    Icon UKARA - United Kingdom Airsoft Retailer Association
    Defence / UKARA Required
    Yes, No,
    FPS Icon
    FPS (Feet Per Second), using 0.20g BB
    Approx. 348fps ± 10%, using 0.20g BB
    Site Legal Icon
    Site Legal, using 0.20g BB
    Yes
    Screwdriver Icon
    Pre-Built
    Yes
    Package
    Included Items
    • Magazine
    • Instruction Manual
    Skill Level Icon
    User Skill Level
    Experienced Player

    Weight and Dimension

    Weight KG Icon
    Weight (KG)
    Approx. 2.6kg
    Weapon Length Collapsed
    Length (Collapsed)
    81.5cm
    Weapon Length Extended
    Length (Extended)
    90cm

    Construction

    Colour Wheel Greyscale
    Primary Colour
    Black
    Colour Wheel Greyscale
    Secondary Colour
    Bronze
    Bronze
    Two Tone Icon
    Pre Two-Toned
    No
    Construction Icon
    Construction
    Steel castle nut, sling plate & body pins. CNC aluminium handguard. Alloy outer barrel, receiver, controls, dust cover, buffer tube. Polymer stock & pistol grip.
    Weapon Construction External
    External Construction
    Polymer
    Alloy
    Aluminium
    Steel
    Gearbox Icon
    Internal Construction
    Polymer
    Alloy
    Aluminium
    Steel

    Weapon Specific

    Power Source Icon
    Powered By
    Electric
    Blowback Icon
    Blowback
    None
    Weapon Platform
    AR Platform, M4 / AR-15 / M16, Long Gun, Assault Rifle,
    Magazine Style Icon
    Magazine Style
    Long Gun Magazine, Assault Rifle, M4 / AR Platform,
    Fire Select Icon
    Fire Selector
    PatrolBase | Fire Select Safe
    Safe
    Patrol Base | Fire Select - Semi Automatic
    Semi Automatic
    Patrol Base | Full Automatic
    Full Automatic
    Programmable
    Weapon Safety Features Icon
    Safety Features
    Trigger Lock
    Shooter Configuration Icon
    Shooter Configuration
    Right Handed
    Weapon Configuration Icon
    Weapon Configuration
    Standard
    Weapon Scale Icon
    Weapon Scale
    1:1
    Suggested BB Weight
    0.28g

    Hop-Up

    Hop-Up Unit Icon
    Hop-Up Unit
    Yes
    Hop-Up Unit Adjuster Icon
    Hop-Up Adjuster
    Rotary
    Hop-Up Unit Location Icon
    Hop-Up Location
    Behind mock bolt carrier, accessible when the charging handle is pulled and the mock bolt is locked to the rear.

    Furniture

    Weapon Furniture Icon
    Furniture
    • Railed Handguard
    • AR Buffer Tube
    • KeyMod Handguard
    • Railed Receiver
    • Ambidextrous Charging Handle
    • Sliding Stock
    • Ambidextrous Fire Selector
    • Ergonomic Pistol Grip
    • QD Sling Point
    • Flared Magwell
    • Muzzle Brake
    • Ambidextrous Sling Plate
    • Enlarged Trigger Guard
    • Rubber butt plate
    Rail System Icon
    Rail System
    KeyMod , 20mm Railed Receiver,
    Icon Stock Positions
    Stock Setting
    Multi-Position , Stock Spacers,
    Weapon Length Extended
    Stock Positions
    6 Position
    Sight Type Icon
    Sight Type
    None
    Sling Plate Icon
    Sling Options
    Buffer Plate , Stock , QD ,

    Barrel

    Outer Barrel Length (in)
    14.5''
    Icon Thread Type
    Outer Barrel Thread Type
    Male
    Icon Thread Direction
    Outer Barrel Thread Direction
    CCW (Counter Clockwise)
    Outer Barrel Thread Size
    14mm
    Inner Barrel Diameter
    6.03mm
    Inner Barrel Length
    363mm

    Magazine Specific

    Magazine Type
    Medium Capacity , AEG,
    Magazine BB Capacity
    Approx. 120 Rounds
    Magazine BB Fill Method
    Speed Loader
    Magazine BB Fill Location
    Top

    Electric Gun Specific Information

    Gearbox
    Gearbox Icon
    Gearbox Version
    V2 Gearbox
    Wiring Icon
    Gearbox Wiring
    Rear Wired
    Spring Change Icon
    Gearbox Quick Change Spring
    Yes
    Digital Trigger Icon
    Gearbox Electronic Trigger
    Yes
    Split Gearbox Icon
    Split Gearbox Design
    No
    Motor
    Airsoft Motor Icon
    Motor Type
    High Speed
    Battery Specific
    Battery Connector
    Patrol Base | Icon | Deans
    Deans
    Compatible Battery
    Compatible Battery Type
    Li-Po
    Compatible Battery Configuration
    Crane
    Compatible Battery Voltage
    11.1v

    Product Testing Data

    Notepad Icon
    Test Description
    348 FPS +/- 5%
    Notepad Icon
    Tested Using
    0.2g ASG BLASTER
    Notepad Icon
    Test Date
    13/10/2023

    Size guide

    Joule Charts

    Special Instructions

    These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

    FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

    Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

    Tap the tabs below to open the relevant chart for your replica.

    Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

    Velocity BB Weight (Grams)
    FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
    250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
    260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
    270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
    280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
    290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
    300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
    310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
    320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
    325 0.98 1.23 1.37 1.47 1.57 1.77 1.96 2.11 2.21 2.45
    328 1.00 1.25 1.40 1.50 1.60 1.80 2.00 2.15 2.25 2.50
    330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
    335 1.04 1.30 1.46 1.56 1.67 1.88 2.09 2.24 2.35 2.61
    340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
    345 1.11 1.38 1.55 1.66 1.77 1.99 2.21 2.38 2.49 2.76
    350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
    355 1.17 1.46 1.64 1.76 1.87 2.11 2.34 2.52 2.63 2.93
    360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01

    Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

    Velocity BB Weight (Grams)
    FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
    250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
    260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
    270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
    280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
    290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
    300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
    310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
    320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
    330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
    340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
    350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
    360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
    370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
    380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
    390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
    400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
    410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90

    Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

    Velocity BB Weight (Grams)
    FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
    250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
    260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
    270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
    280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
    290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
    300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
    310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
    320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
    330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
    340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
    350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
    360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
    370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
    380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
    390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
    400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
    410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90
    420 1.64 2.05 2.29 2.46 2.62 2.95 3.28 3.52 3.69 4.10
    430 1.72 2.15 2.40 2.58 2.75 3.09 3.44 3.69 3.86 4.29
    440 1.80 2.25 2.52 2.70 2.88 3.24 3.60 3.87 4.05 4.50
    450 1.88 2.35 2.63 2.82 3.01 3.39 3.76 4.04 4.23 4.70
    460 1.97 2.46 2.75 2.95 3.15 3.54 3.93 4.23 4.42 4.91
    470 2.05 2.57 2.87 3.08 3.28 3.69 4.10 4.41 4.62 5.13
    480 2.14 2.68 3.00 3.21 3.42 3.85 4.28 4.60 4.82 5.35
    490 2.23 2.79 3.12 3.35 3.57 4.02 4.46 4.80 5.02 5.58
    500 2.32 2.90 3.25 3.48 3.72 4.18 4.65 4.99 5.23 5.81
    510 2.42 3.02 3.38 3.62 3.87 4.35 4.83 5.20 5.44 6.04
