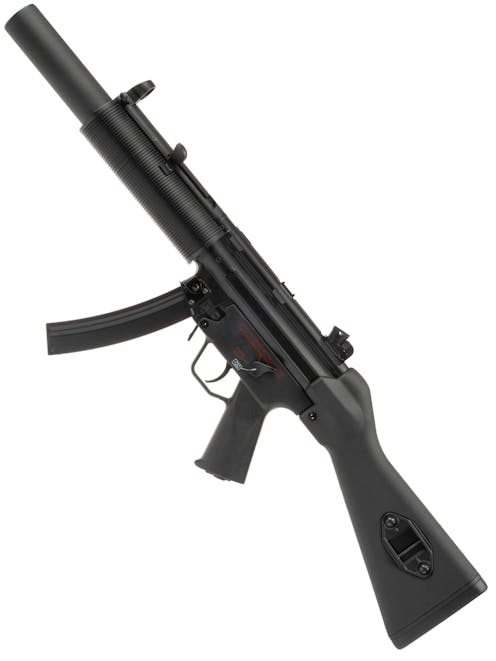

Bolster Tuned CYMA CM.041 SD6 SMG-5 Upgraded AEG

Bolster Tuned
Code:
£499.99
  • Pre-installed Gate ASTER ETU
  • Extensive upgrades by Bolster Armouries
  • 60m+ Range with 0.28g BBs - Phenomenal!

We have been waiting for this one! The Bolster Armouries team have finally caved in to numerous staff requests for a sneaky counterpart to the Patrol Base X Gate ASTER upgraded SMG-5 AEGs. Enter the CM.041 SD6 SMG-5 Patrol Base X Gate ASTER Upgraded Edition; a full metal SMG-5 SD6 built by the same team behind the ultra-high-end Bolster Armouries ONYX AEG series and the previous Patrol Base X Gate ASTER SMG-5 AEGs.

As with its less discrete brethren, the first thing the Bolster Armouries team do with the CM.041 SD6 is to tear it to pieces and built it back up to fulfil its true potential; installing the space-aged Gate ASTER ETU, modifying the HOP-up for better air seal and setting retention, and dropping in a Lonex Air Seal nozzle and Prometheus Purple HOP-up rubber.

A lot of work was put in to refine the mass-produced CYMA gearbox and make it run like a Bolster. The inner surfaces of the gearbox have been polished for reduced friction and modified to house the ASTER ETU. The cylinder windows have been radiused to increase the strength of the shell to withstand the force of repeated piston impacts, and the bearing holes in the gearbox shell have been smoothed out. The angle of engagement has also been corrected, meaning 11.1V LiPo's are a go for the upgraded CM.041 SD6 so you can hose the enemy down with a torrent of BBs like a fireman hoses a blaze.

With upgrades added and work done, the price has increased, but by a far smaller margin than it would if you took a stock CM.041 to a technician and paid for this amount of work to be done. Finally, we can pick up and play with an exceptionally well-built AEG with all the fine-tuning necessary for exceptional performance already complete, and done with care, to an exacting standard. When we tested this AEG we were flabbergasted. 347 FPS on the dot with remarkable consistency, 60m+ effective range and an absolutely scary rate of fire of 25 rounds per second; more than enough to outshoot anything else you can buy off the shelf!

Full description

Description

The original CM.041 SD6 High Speed

The CM.041 SD6 is CYMA's sneaky SMG-5 variant, based on the real steel SD6 and complete with its integrally suppressed front end. Like the other CM.041 variants, this AEG boasts full metal construction for a realistic weight and feel, and is equipped with some remarkably impressive parts straight out of the box with but a few weaknesses which can be solved with the appropriate application of Airsoft knowledge.

The SMG-5 SD6 has famously been used by every Special Forces unit you can think of, combining the original SMG-5's high rate of fire, extreme reliability and exceptional accuracy with an integrated suppressor which makes the real thing whisper quiet; perfect for eliminating lone sentries and guard dogs at the opening stages of a direct action mission. If you have a sneaky specialisation in game or you just love the looks of integrally suppressed SMGs this one is the best of the bunch!

Starting at the front end we can find the suppressor which perfectly matches that of the real thing in length, shape and profile. Unlike the real thing, this suppressor can actually be removed by turning the suppressor clockwise and removing it from its dual lug attachment. This opens up some interesting possibilities for a homebrew tracer unit, but we suggest not running the CM.041 SD6 without its suppressor due to how ugly it looks! Keep it the way the Germans intended; sneaky beaky!

Following the suppressor rearwards we come to the front sight assembly which mimics the conventional SMG-5 with its squared front sight post surrounded by an alloy protective ring.  This sight pairs perfectly with the rear rotary drum "diopter" rear sight, the sight setup which is often credited with being the best iron sight design out there. On the left side of the front sight assembly, we also have a built-in sling point, ideally located for use with the rear sling point and a two-point sling.

The front sight is not adjustable, but the rear sight can be adjusted for windage by loosening the screw on the right side of the rear sight base and sliding it back and forth. The rear sight also offers 4 options for aiming apertures which range in size from the smallest, ideal for long-range semi-auto shots through to the largest which is great for close-range snap shooting, low light scenarios and full auto fire.

The handguard follows the front sight and is the correct ribbed design for an authentic SMG-5 SD, providing plenty of grip and comfort for both left and right-handed shooters. The handguard is constructed from polymer but has a slightly different feel to the trigger pack, appropriately simulating the real SD6 handguard which is made from injection moulded rubber. The handguard also serves to reduce felt heat through the massive suppressor of the real thing which runs all the way back to the chamber and is built as part of the barrel itself. This is another part of the iconic SMG-5 SD6 silhouette and gives the CM.041 SD6 an authentic look. The handguard is held on by two pins, one on each side in the centre of the handguard.

What is known as the "cocking tube" lives just above the handguard, and as the name suggests, this is where you will find the cocking handle of the SMG-5 SD. The design of the cocking tube is slightly different to a conventional SMG-5 and includes linear grooves in the surface to reduce heat build-up for improved shooter comfort.

The cocking handle can be pulled and locked up into its safety notch, as per the real thing, but this is not required to load the AEG of course. The cocking handle instead retracts the mock bolt carrier on the right side of the receiver, revealing the slider adjustable HOP-up unit. This unit allows you to increase or decrease the amount of backspin applied to your projectile, extending range and allowing the AEG to make effective use of BBs of various weights. The Bolster Armouries team have had their Waldo Customs greasy mitts all over this unit too; if you are interested in what they did you can read about it in the next section!

Moving rearwards we arrive at the receiver which follows the iconic SMG-5 format perfectly. The receiver is comprised of two parts, the upper metal section known as the “upper receiver” and the polymer lower section, known as the “trigger pack”. The fire selector is present on either side of the trigger pack and offers 3 modes of fire; safe, semi-automatic and fully automatic, with a 45-degree throw between fire modes.

Each fire mode is indicated with the ever-recognisable red and white bullet pictograms which first appeared on the “Navy” style SMG-5 trigger pack and now make their way onto most modern platforms in one form or another. Safe is indicated with a crossed-out projectile in white, semi with a single projectile in red and full auto is denoted with several red projectiles. The fire controls of the Patrol Base X ASTER Edition can be programmed for burst mode, binary trigger and a plethora of other features which is a major step up from the original, offering you more options than ever before!

The grip itself is built into the trigger pack and is an ergonomic design with an enlarged trigger guard built in. This grip has been a subject of a lot of praise, and the shape and style match more modern platforms such as the AR36 and is widely credited with being the inspiration behind the highly popular MOE and MIAD grips for the M4/AR-15. The trigger guard allows plenty of space for gloved shooters, and the trigger of this, the Patrol Base X Gate ASTER edition has been swapped out for a flat SMG-5 trigger to give you the edge when it comes to laying down some rapid semi-automatic fire in CQB.

The magazine release is also ambidextrous, being a paddle-style release positioned just ahead of the trigger guard, making the SMG-5 a fine choice for right or left-handed shooters. There is also a secondary magazine release over on the right side, on the magazine well in a similar position to that of the M4/AR-15. This gives you the option of two different magazine release styles, though we prefer the ambidextrous paddle release as the AR style release is a bit further from the grip than on an M4 and can be harder to reach for those with smaller hands.

Running along either side of the receiver we can see a groove which is the track in which the sliding stock indexes, serving both to keep the stock tight into the weapon when retracted, reinforce the receiver and provide tracks for the bolt carrier to move along on the inside of the real thing. At the top, we have a pair of lugs which allow for an SMG-5/G3 claw optics mount to be added if you want to mount a red dot sight or scope to the CM.041 SD6. These lugs are compatible with both low profile and high profile options.

The rear iron sight is located at the back of the receiver and is a rotary drum diopter-style sight, just like the real thing. The sight offers 4 different apertures for aiming, with the wider apertures being ideal for low-light situations and full auto fire, and the finer apertures are great for long-range shots and semi-automatic fire. Changing apertures is easy in any weather conditions thanks to the knurling at the top of the drum, simply turn the sight to the chosen position and it will lock into place under spring tension.

In this, the Patrol Base X Gate ASTER Edition of the CM.041 SD6 we have swapped the sliding "J" type stock out for a fixed SMG-5 stock to give this beast a bit more battery space and improve the comfort of the platform. The fixed stock provides a comfortable cheek weld so you really make good use of the exceptional diopter iron sights and is equipped with a sling point on the left side to facilitate a two-point sling setup. The stock chosen is the same used on CYMAs CM.041B and is constructed from high density polymer with a high quality textured feel. Technically, this makes this AEG an SMG-5 SD5, but we will stick with the SD6 name so it is clear what the base platform of this build is.

The CM.041 Patrol Base X Gate ASTER Edition

This isn't your usual "upgraded" AEG, where you pay for the parts and labour and the tech does only what they are paid to do. The Bolster Armouries tech team fully disassemble each of these AEGs down to every screw, bolt and bushing to perfectly tune the internals, polish the piston tracks and bearing holes, shim the gears to absolute perfection and replace parts to address the weak points in the original CM.041 SD6. The Bolster techs treat these AEGs like they are building them for themselves, and if it doesn't pass their rigorous checks, which include a 60m accuracy test, it goes back to the bench for more work.

As with the SD6's predecessors, the team have added the exceptional Gate ASTER ETU/MOSFET to add some seriously advanced features to the CM.041 SD6 and kit it out to contend with the best. The ASTER boasts programmable fire controls through the Gate Control Station app, Gate Blu-Link or Gate USB Link, adjustable pre-cocking for a ferocious trigger response in semi-auto, cycle timing control, adaptive active braking, adjustable trigger sensitivity, and voltage control, all of which combine to give this sneaky SMG-5 a wealth of functionality that is hard to beat.

Installing the ASTER requires modification of the gearbox shell and selector plate for compatibility with the ASTER's optical sensors. Copper is no longer used on the selector plate, and is instead replaced with an ASTER sticker to allow the optical sensors to detect its position, and adjust the fire mode accordingly. This has the benefit of being more reliable than a traditional selector plate, as the use of optical sensors takes corrosion which usually develops on electrical contacts out of the equation completely.

As you will receive it, the SMG is set up for pre-cocking in semi-automatic for a GBB-like instant response, and standard cycling in full auto so you can release the piston and prolong the life of the spring. These settings can be altered to your heart's desire using the Gate Control Station app, or a Gate Programming card, but there is no need to change settings as this AEG is set up to perform exactly as it should, and if there was a better combination of settings, the Bolster Armouries team would have used them.

Inside the gearbox, the Bolster boys have put in some serious elbow grease, and have modified the shell to accept the ASTER ETU, sanded the piston tracks and bushing holes completely smooth to reduce every bit of friction possible, and shimmed the gears to perfection for absolutely flawless functionality. The cylinder window corners have also been radiused, to get ahead of a known version 2 gearbox failure point by more effectively distributing the mechanical stress on the gearbox front from repeated impacts. The air nozzle has also been replaced with the Lonex air seal nozzle, complete with an air seal enhancing O-ring. The result is a system which is running at the absolute peak of efficiency, both electrically and mechanically.

As with previous Patrol Base x Gate ASTER SMG-5s, all of the internal parts of this CM.041 SD6 have been treated to Waldo Customs' delicious smelling silicone lubricant, both the THICC and SLIM variety. Waldo THICC lube has been applied to the cylinder head, and SLIM has been applied to the O-rings of the Lonex air seal nozzle and the piston head to prolong their life, enhance air seal qualities, and make them smell great!

One of the biggest issues with mass-produced AEGs is the poor quality lubricant applied from the factory, in inconsistent amounts and in all the wrong places. Bolster Armouries has cleaned up inside the gearbox, and doing this alone makes all the difference. Coupled with the internal enhancements, this SMG-5 sounds more like an A-10 Warthog when it fires than an Airsoft AEG!

When it comes to the HOP-up and inner barrel, the Bolster techs have worked wonders. One of the few complaints we have heard about the original CM.041 is that when fired in full auto extensively, the HOP-up unit tends to lose its setting and require readjustment.

To correct this, the Bolster techs have tightened everything up and replaced the polymer pin holding the unit together with a machine screw and bolt to ensure it remains rigid and effective. Naturally, these guys cannot touch an AEG without installing the phenomenal Prometheus Purple HOP-up bucking and nub inside, and of course, this CM.041 SD6 is no exception. This is what allows this upgraded version to nearly double the original in range, reaching out to an absurdly long distance for such a short-barrelled AEG.

The CM.041 SD6 comes with a 6.03mm tight-bore inner barrel pre-installed, but not being the types to trust Chinese quality control, the Bolster techs inspect every barrel for imperfections and give them a thorough clean and polish before reinstalling them. Even tight-bore barrels can have internal flaws which affect accuracy when mass-produced, and the internal overhaul given to this CM.041 guarantees that you will get a good, smooth barrel with a flawless inner surface.

From a performance standpoint, this AEG is positively exceptional, being accurate to 60m and beyond, and ripping out BBs at a nauseating rate (for the other team, anyway!). When put on the chronograph this upgraded CM.041 spits out an incredible 25 BBs per second, which isn't far off the proper Bolster Armouries ONYX AEGs. FPS-wise, this AEG hits a very consistent 347 FPS when tested on 0.2g ASG Blaster BBs, but the Bolster Team recommend 0.28g BBs to make the most of the Prometheus HOP-up rubber. If you ever wanted an ONYX but cannot stomach the price, this is the next best thing!

The CM.041 SD6 Patrol Base X Gate ASTER Edition benefits from the same decades of experience and careful hand-building process that the ONYX does but takes advantage of the impressive stock parts in the CM.041 instead of replacing it all with aftermarket upgrades. It's amazing what talented technicians can do with a mass-produced AEG and a few choice upgrades, some great quality lubricant, and a world-beating ETU like the ASTER.

Features

  • Full metal construction
  • Integrated Suppressor - Sneaky look
  • Fixed SMG-5 stock - Plenty of battery space
  • Flat SMG-5 Trigger - Great for rapid semi-auto fire
  • Sling points front and rear - Ready for a single-point or two-point sling
  • Slider Adjustable HOP-up unit
  • Quick change spring system
  • Ribbed cylindrical handguard - Extra grippy
  • Rotary Drum iron sights - Widely regarded as the best irons out there
  • Ambidextrous fire selector - Semi-auto is set to pre-cocking, full auto normal cycle
  • 6.03mm Tightbore inner barrel - Inspected for flaws and polished
  • Fixed Stock battery compartment - Fits 11.1V 20C 1600mAh Block battery
  • Deans Battery connector - Low resistance connector for improved electrical efficiency

Internal Upgrades & Tuning

  • Gate ASTER ETU
  • Pre-cocking in semi-automatic mode
  • Prometheus Purple HOP-up Bucking & Nub
  • Lonex Air Seal Nozzle with O-ring
  • Expertly Shimmed - Ultra smooth cycling
  • HOP-up unit modified for improved Air seal and setting retention
  • Gearbox shell flaws removed and engagement surfaces polished
  • 13:1 High speed Gears - Super speedy
  • Bearing holes cleaned up, bearings secured with green Loctite
  • AOE Corrected - 11.1V LiPo ready
  • Waldo Customs Slim and Thicc lubricant used throughout - Smells & runs great!
  • 60m+ Effective range on 0.28g BBs - Outstanding
  • 25 RPS in Full Auto - BRRRRRRRRRRT
  • 347FPS consistently - Great for outdoors work
  • Expertly built by the Bolster Armouries Tech Team


Package Includes

  • CYMA CM.041 SD6 SMG-5 Patrol Base X Gate ASTER Upgraded Edition
  • 2x 130rnd Mid-cap Magazines

Specification

General

Weapon Construction External
Weapon Type
Submachine Gun
Over 18 Only Icon
Over 18
Yes
Icon UKARA - United Kingdom Airsoft Retailer Association
Defence / UKARA Required
Yes, No,
FPS Icon
FPS (Feet Per Second), using 0.20g BB
Approx. 347fps ± 10%, using 0.20g BB
Site Legal Icon
Site Legal, using 0.20g BB
Yes
Screwdriver Icon
Pre-Built
Yes
Package
Included Items
Magazine x 2
Skill Level Icon
User Skill Level
Regular Player
Patrol Base - Warning Icon
Warnings
Li-Po - Never Leave Charging Unattended
Li-Po - Only Use Approved Chargers
Li-Po - Charge in a Fire Safe Area

Weight and Dimension

Weight KG Icon
Weight (KG)
Approx. 3kg
Weapon Length Collapsed
Length (Collapsed)
79cm
Weapon Length Extended
Length (Extended)
79cm

Construction

Colour Wheel Greyscale
Primary Colour
Black
Two Tone Icon
Pre Two-Toned
No
Construction Icon
Construction
Alloy suppressor, sights, upper receiver, magazine, stock guides and trim. Polymer handguard, lower receiver and stock.
Weapon Construction External
External Construction
Polymer
Alloy
Gearbox Icon
Internal Construction
Polymer
Alloy
Aluminium
Steel

Weapon Specific

Power Source Icon
Powered By
Electric
Blowback Icon
Blowback
None
Weapon Platform
Submachine Gun, SMG-5, SMG-5 SD Series,
Magazine Style Icon
Magazine Style
SMG-5, Long Gun Magazine, Submachine Gun,
Fire Select Icon
Fire Selector
PatrolBase | Fire Select Safe
Safe
Patrol Base | Fire Select - Semi Automatic
Semi Automatic
Patrol Base | Full Automatic
Full Automatic
Weapon Safety Features Icon
Safety Features
Trigger Lock
Shooter Configuration Icon
Shooter Configuration
Ambidextrous
Weapon Configuration Icon
Weapon Configuration
Standard
Weapon Scale Icon
Weapon Scale
1:1
Suggested BB Weight
0.28g

Hop-Up

Hop-Up Unit Icon
Hop-Up Unit
Yes
Hop-Up Unit Adjuster Icon
Hop-Up Adjuster
Slider
Hop-Up Unit Location Icon
Hop-Up Location
Behind mock bolt carrier, accessible when the charging handle is pulled and the mock bolt is locked to the rear.

Furniture

Weapon Furniture Icon
Furniture
  • Fixed Stock
  • Ambidextrous Magazine Release
  • Ambidextrous Fire Selector
  • Rotary Drum Iron Sights
  • Integrated Suppressor
  • sling points front and rear
  • Ambi-friendly Charging handle
  • H&K Claw mount compatible receiver
  • Ribbed handguards
Rail System Icon
Rail System
Railed Mount Available
Icon Stock Positions
Stock Setting
Fixed
Weapon Length Extended
Stock Positions
1 Position
Sight Type Icon
Sight Type
Iron Sights , Rotary Drum Iron Sight ,
Sling Plate Icon
Sling Options
Stock , Handguard , Loop ,

Barrel

Inner Barrel Diameter
6.03mm
Inner Barrel Length
220mm

Magazine Specific

Magazine Type
Medium Capacity , AEG,
Magazine BB Capacity
Approx. 130 Rounds
Magazine BB Fill Method
Speed Loader
Magazine BB Fill Location
Top

Electric Gun Specific Information

Gearbox
Gearbox Icon
Gearbox Version
V2 Gearbox
Wiring Icon
Gearbox Wiring
Rear Wired
Spring Change Icon
Gearbox Quick Change Spring
Yes
Digital Trigger Icon
Gearbox Electronic Trigger
Yes
Split Gearbox Icon
Split Gearbox Design
No
Motor
Airsoft Motor Icon
Motor Type
High Torque
Battery Specific
Battery Connector
Patrol Base | Icon | Deans
Deans
Compatible Battery
Compatible Battery Type
Li-Po
Compatible Battery Configuration
Block
Compatible Battery Voltage
11.1v

Product Testing Data

Notepad Icon
Test Description
347 FPS +/- 10%
Notepad Icon
Tested Using
0.2g ASG BLASTER
Notepad Icon
Test Date
15/05/2023

Size guide

Joule Charts

Special Instructions

These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

Tap the tabs below to open the relevant chart for your replica.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
325 0.98 1.23 1.37 1.47 1.57 1.77 1.96 2.11 2.21 2.45
328 1.00 1.25 1.40 1.50 1.60 1.80 2.00 2.15 2.25 2.50
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
335 1.04 1.30 1.46 1.56 1.67 1.88 2.09 2.24 2.35 2.61
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
345 1.11 1.38 1.55 1.66 1.77 1.99 2.21 2.38 2.49 2.76
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
355 1.17 1.46 1.64 1.76 1.87 2.11 2.34 2.52 2.63 2.93
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90
420 1.64 2.05 2.29 2.46 2.62 2.95 3.28 3.52 3.69 4.10
430 1.72 2.15 2.40 2.58 2.75 3.09 3.44 3.69 3.86 4.29
440 1.80 2.25 2.52 2.70 2.88 3.24 3.60 3.87 4.05 4.50
450 1.88 2.35 2.63 2.82 3.01 3.39 3.76 4.04 4.23 4.70
460 1.97 2.46 2.75 2.95 3.15 3.54 3.93 4.23 4.42 4.91
470 2.05 2.57 2.87 3.08 3.28 3.69 4.10 4.41 4.62 5.13
480 2.14 2.68 3.00 3.21 3.42 3.85 4.28 4.60 4.82 5.35
490 2.23 2.79 3.12 3.35 3.57 4.02 4.46 4.80 5.02 5.58
500 2.32 2.90 3.25 3.48 3.72 4.18 4.65 4.99 5.23 5.81
510 2.42 3.02 3.38 3.62 3.87 4.35 4.83 5.20 5.44 6.04
