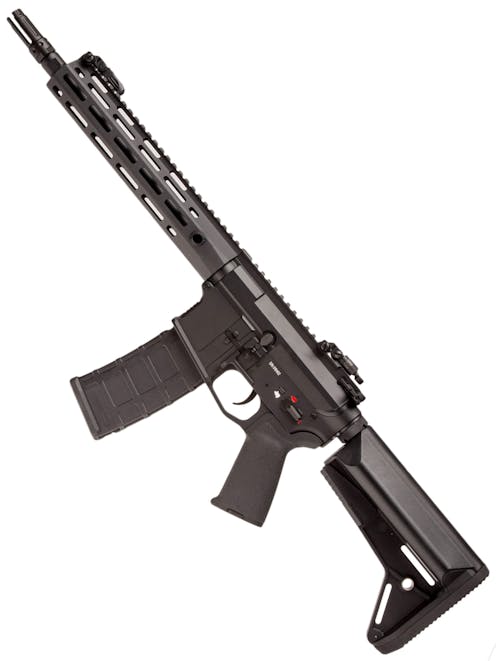

CYMA CM.097B Platinum Edition

CYMA
Product code:
£249.99
  • MOSFET Inside
  • Microswitch Trigger
  • Quick Change Spring

This Airsoft Electric Gun is the combination of awesome external build quality, up-rated internal parts and quality of life features such as a Microswitch Trigger, MOSFET and Quick Change Spring system to create the ultimate Value for Money / New Player Gun. If you're looking for a rapid trigger response and high rate of fire out of the box, you can stop searching now.

Full description

Description

The CM.097B Platinum Edition is a very robust and incredibly well thought-out Airsoft Electric Gun replica which has a long list of parts and features which would be on any Airsofter's wishlist for the perfect Airsoft Gun. The externals are almost exclusively made from Aluminium, which helps make it tough and feel good in the hands. Even the fire controls and trim parts of the rifle are made from Aluminium; no cheap Alloy here! The Polymer parts are the Pistol Grip and Stock as you would expect, which feel high-density and a long way away from the usual cheap Polymer you would see on a CYMA gun.

The front of the rifle features an AAC style Flash Hider which can accept Quick Release AAC style Suppressors, but also has a 14mm CCW Thread underneath for the addition of standard Airsoft Suppressors. The handguard is a 10.5" M-LOK design allowing for Rail Adaptors or M-LOK compatible accessories. The tough Aluminium Receiver has all the typical AR platform controls you would expect, but has the added benefit of a unique serial number and functional mock Bolt Release for easier adjustment of the HOP unit and enhanced realism. When the Charging Handle is pulled to the rear, the mock bolt will lock to the rear allowing you to make adjustments to the HOP unit inside the dust cover. Press the Bolt Release Button on the nearside of the receiver to shut it again. The top of the receiver has a full length 20mm RIS rail running down the length of the handguard, which comes out of the box with a set of flip-up ironsights installed. At the rear of the receiver you will find an ambidextrous Sling Plate for you to attach a sling from either side of the gun, which is great news for left handed players. There is also a front and rear QD Sling Socket if you would rather attach QD Sling Points. The six position Crane Stock has a cool aesthetic and is easily accessed by pulling down the latch on the Rubber Butt Pad and opening the rear of the stock, for quick access to the Mini Tamiya connector inside. This stock will accept 7.4v Crane LiPos or 9.6v Crane NiMHs.

Internally, this Airsoft Electric Gun has a wealth of up-rated goodies which make the replica excellent value for money. The inner barrel is a 275mm 6.03mm precision barrel, the reinforced V2 gearbox features a full Steel teeth Polycarbonate Piston, CNC Machined Steel Gear Set (13:1) 8mm bearings, CNC Machined Aluminium Silent Cylinder and Piston Head, Bearing Spring Guide and a High Speed Motor. The Gearbox is a Quick Change Spring design for easy power changes, and the combined MOSFET and Microswitch Trigger make for an excellent Trigger Pull and user experience, with features such as low-voltage cutoff to prevent locking of the gears.

Included in the box is a 300rnd Polymer Mid-Cap Magazine, 9.6v 1200mAh NiMH Battery and EU Pin Charger. If you're looking for pure Value for Money, with a list of features like amazing build quality, up-rated internal parts, quick change spring, microswitch trigger, MOSFET, unique serial number and much, much more, then the CYMA CM.097B Platinum Edition is the perfect choice for you.

Features

  • Aluminium Externals
  • 10.5" M-LOK Handguard
  • AAC Style Flash Hider
  • Accepts QD Suppressors
  • Microswitch Trigger
  • MOSFET Inside
  • Quick Change Spring
  • 14mm CCW Thread
  • Full Length 20mm Top Rail
  • Ambidextrous Sling Plate
  • Front & Rear QD Sling Sockets
  • Adjustable HOP Unit
  • 300rnd High Cap Magazine
  • Functional Mock Bolt Release
  • Easy Access Battery Compartment
  • Six Position Crane Stock
  • Unique Serial Number
  • Flip Up Ironsights
  • Stippled Pistol Grip
  • 295mm 6.03mm Inner Barrel
  • Full Steel Teeth Polycarbonate Piston
  • CNC Machined Steel Gear Set (13:1)
  • CNC Machined Aluminium Silent Cylinder
  • CNC Machined Aluminium Piston Head
  • Bearing Spring Guide
  • High Speed Motor
  • Fast Trigger Response
  • Perfect Starter Gun
  • Battery & Charger Included

Package Includes

  • CYMA CM.097B Platinum Edition
  • 300rnd High Cap Magazine
  • 9.6v 1200mAh NiMH Battery
  • EU Pin Charger

Special Instructions

Please remember that the free Battery & Charger are inferior to an Aftermarket Set, should be treated as a free gift and are not covered under warranty.

Specification

General

Weapon Construction External
Weapon Type
Assault Rifle
Over 18 Only Icon
Over 18
Yes
Icon UKARA - United Kingdom Airsoft Retailer Association
Defence / UKARA Required
Yes, No,
FPS Icon
FPS (Feet Per Second), using 0.20g BB
Approx. 340fps ± 10%, using 0.20g BB
Site Legal Icon
Site Legal, using 0.20g BB
Yes
Package
Included Items
  • Magazine
  • Battery
  • EU Pin Charger
Skill Level Icon
User Skill Level
Starter
Patrol Base - Warning Icon
Warnings
Free Gift Battery Warning

Weight and Dimension

Weight KG Icon
Weight (KG)
Approx. 2.77kg
Weapon Length Collapsed
Length (Collapsed)
73cm
Weapon Length Extended
Length (Extended)
81.5cm

Construction

Colour Wheel Greyscale
Primary Colour
Black
Two Tone Icon
Pre Two-Toned
No
Construction Icon
Construction
Aluminium outer barrel assembly, handguard, receiver, buffer tube, fire controls and trim. Polymer pistol grip, stock and magazine.
Weapon Construction External
External Construction
Polymer
Alloy
Aluminium
Gearbox Icon
Internal Construction
Polymer
Alloy

Weapon Specific

Power Source Icon
Powered By
Electric
Blowback Icon
Blowback
None
Weapon Platform
AR Platform, M4 / AR15 / M16,
Magazine Style Icon
Magazine Style
STANAG, AR Platform,
Fire Select Icon
Fire Selector
PatrolBase | Fire Select Safe
Safe
Patrol Base | Fire Select - Semi Automatic
Semi Automatic
Patrol Base | Full Automatic
Full Automatic
Weapon Safety Features Icon
Safety Features
Trigger Lock
Shooter Configuration Icon
Shooter Configuration
Right Handed
Weapon Configuration Icon
Weapon Configuration
Standard
Weapon Scale Icon
Weapon Scale
1:1
Suggested BB Weight
0.25g

Hop-Up

Hop-Up Unit Icon
Hop-Up Unit
Yes
Hop-Up Unit Adjuster Icon
Hop-Up Adjuster
Gear
Hop-Up Unit Location Icon
Hop-Up Location
Behind mock bolt when charging handle pulled to rear.

Furniture

Weapon Furniture Icon
Furniture
  • Railed Handguard
  • Flip-Up Ironsights
  • Railed Receiver
  • Sliding Stock
  • Threaded Outer Barrel
  • QD Sling Point
  • Ambidextrous Sling Plate
Rail System Icon
Rail System
20mm RIS / RAS , MLOK Rail System,
Icon Stock Positions
Stock Setting
Sliding
Weapon Length Extended
Stock Positions
6 Position
Sight Type Icon
Sight Type
Iron Sights
Sling Plate Icon
Sling Options
Buffer Plate , QD ,

Barrel

Icon Thread Type
Outer Barrel Thread Type
Male
Icon Thread Direction
Outer Barrel Thread Direction
CCW (Counter Clockwise)
Outer Barrel Thread Size
14mm
Inner Barrel Diameter
6.03mm
Inner Barrel Length
295mm

Magazine Specific

Magazine Type
High Capacity, AEG,
Magazine BB Capacity
Approx. 300 Rounds
Magazine BB Fill Method
Fill Window
Magazine BB Fill Location
Top

Electric Gun Specific Information

Gearbox
Gearbox Icon
Gearbox Version
V2 Gearbox
Wiring Icon
Gearbox Wiring
Rear Wired
Spring Change Icon
Gearbox Quick Change Spring
Yes
Digital Trigger Icon
Gearbox Electronic Trigger
Yes
Battery Specific
Battery Connector
Patrol Base | Icon | Mini Tamiya
Mini Tamiya
Included Battery
Battery Configuration
Crane
Battery Type
Ni-Mh
Battery Voltage
9.6V
Battery Amperage
1200mAh
Suggested Battery
Suggested Battery Type
Li-Po
Suggested Battery Configuration
Crane
Suggested Battery Voltage
7.4v

Product Testing Data

Notepad Icon
Test Description
340FPS
Notepad Icon
Tested Using
ASG Blaster 0.20g BBs
Notepad Icon
Test Date
15/10/19

Detailed Power Tests

FPS
FPS, using 0.20g BB
Approx. 340fps, using 0.20g BB
