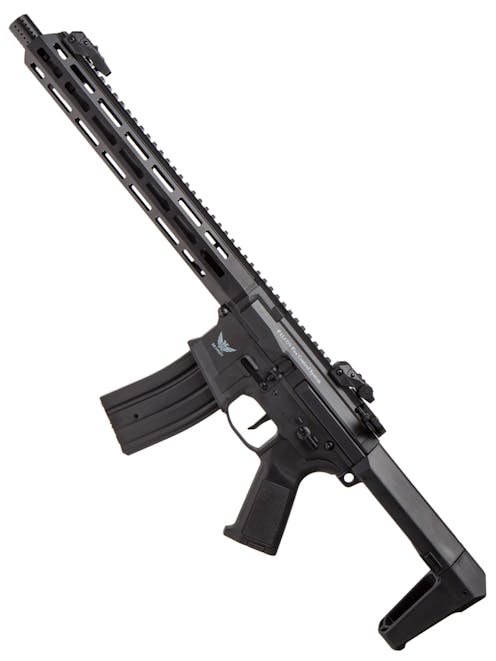

Double Eagle M904L Fire Control System Edition

Double Eagle
Code:
£179.99
  • Cost Effective Rifle
  • Amazing Response
  • Programmable Trigger

The Double Eagle M904L features the 'Falcon Fire Control System' which allows for programming of your Trigger, as well as massively improving Trigger Response. The FFCS gives you awesome features such as '1-5rnd Burst' and a 'Binary Fire Mode' where the Gun will fire upon Trigger release as well as pull. Including a Quick Change Spring and a lightweight but tough reinforced Polymer external build, this is not an Airsoft Gun to miss.

Full description

Description

This Airsoft Electric Gun is based on the M4/AR Platform which will make it very familiar to anyone who has used the platform before. Featuring a lightweight but incredibly tough construction that is mainly reinforced Polymer, this Airsoft Gun is perfect for those who like to get up in the enemy's personal space.

If you're looking for an AEG with some truly unique features you've come to the right place: the replica features Double Eagles latest creation, the FALCON EFCS Fire Control System. Usually only seen in custom builds and high end AEG this feature is a welcome inclusion, allowing for 1-5 round burst mode, a binary trigger, as well as various gun and battery protection features to boot. The 1-5 round burst mode and bump fire settings can also be set at the same time, with binary being used in semi-auto mode, and 1-5 round burst replacing the full auto mode. The fire control system is designed to be used with 7.4v Li-Po and 11.1v Li-Po and prevents the replica from firing when it detects a current draw spike, or if the battery voltage is too low. Please note that an 11.1v LiPo is only recommended by the manufacturer on the grounds that the replica is firing above 390FPS. As your purchase will be ~340FPS out of the box, please avoid the use of an 11.1v Battery. The EFCS fire system is configurable using simple trigger pulls and requires no external tools, special adapters or a PC to function. For more information please see the Special Instructions Section.

The gun features a typical AR platform layout, with an Ambidextrous Safe/Semi/Auto Fire Selector (which can be programmed without the need for tools), but notably a Flat Blade Trigger and Ergonomic Charging Handle. Not only do these parts look awesome, but they make the handling and operation of the rifle much easier. The Battery is stored in the Stock, where you will find a Deans Connector (a Deans to Mini Tamiya Converter Lead is supplied in the box). Simply open the Stock up fully and remove the back section to access the Battery Compartment. The Gun also features a Rotary HOP Unit which is accessible behind the Mock Bolt / Dust Cover. Simply pull back on the Charging Handle to expose it and make adjustments. This will apply backspin to your BBs and help achieve a better flight path, when given the right settings for the BB weight and location. The Suppressor in the pictures is included with the Rifle, and comes installed out of the box. This can be removed to make use on another Muzzle Device by simply unscrewing it. Underneath you will find a 14mm CCW Thread that is recessed inside the Handguard. The Gun also reportedly features a Quick Change Spring System, which is helpful for those who play at multiple sites, each with different power limits. Or maybe you want to float between Assault Rifle and DMR rules, and like to have the option of both without disassembling the Gearbox.

If you're looking to modify the furniture on the gun you have plenty of options, with a full top length 20mm RIS / RAS rail for attaching red dots, holographic, and even large sight and scope set ups, and an MLOK handguard for attaching modular components. A solid sling loop can be found underneath the Stock, for making use of a One Point Sling Setup, or a Two/Three Point if you were to add another Sling Loop at the front of the Rifle.

Included in the box is a 300rnd High Capacity Magazine, which is filled with BBs from the top via the Fill Window, and then wound at the bottom of the Mag to start feeding BBs into the gun. If you're looking for an incredibly smart Airsoft Gun with some unique external furniture as well as a solid Alloy body, then you can't go wrong with the Double Eagle M904L Fire Control System Edition.

Features

  • FALCON Fire Control System
  • Based on the M4 / AR Platform
  • Electric powered Airsoft AEG
  • FALCON EFCS Gearbox and Battery Protection
  • 1-5 Shot Fire selection mode
  • Trigger sensitivity adjustment
  • Binary Trigger mode
  • Binary fire select for semi auto
  • 1-5 Shot fire select for full auto mode
  • MLOK handguard
  • Solid sling loop under stock
  • Mock charging handle which pulls back to reveal the hop-up unit
  • Mock bolt release which releases the mock bolt plate
  • Ergonomic charging handle
  • Ambidextrous magazine release
  • Radial adjustable hop-up unit for accuracy and precision
  • Straight, flat trigger
  • Textured ergonomic pistol grip
  • Adjustable motor screw height
  • Flip up removable ironsights for 20mm RIS/RAS rail
  • Full top length 20mm RIS / RAS rail
  • Included (removable) suppressor
  • 14mm CCW thread
  • Six position sliding stock
  • Rear wired / Version 2 gearbox
  • Branded:
    • 'FALCON Fire Control System'
    • 'DE AIRSOFT'

Package Includes

  • Double Eagle M904L Fire Control System Edition
  • Deans to Mini Tamiya Converter Lead
  • 300rnd High Cap Magazine
  • Instruction Manual

Special Instructions

Please note that the gun's EFCS system is only compatible with LiPo Batteries, and is not compatible with LiFe or NiMh batteries.

Please note that both binary fire and burst modes can be set, as binary fire is applied to semi, and 1-5 fire mode is applied to full auto.

Please note that fitting the supplied deans connector will constitute a modification of the replica, and if you carry out this modification you will not be able to return your replica.

FALCON EFCS Protection Feature

Gearbox Protection

When the current is too high or abnormal the power supply on the EFCS will disconnect to protect the motor and battery, and the motor will vibrate three times.

If the voltage of the battery is too high the EFCS power supply will automatically disconnect and the motor will vibrate twice.

Battery Protection

The FALCON EFCS has an operating voltage between 6-13v. If the voltage is too low or too high the power supply will be cut. If the voltage of your battery is too low, the FALCON will notify the user via 5 vibrations, then cut the power to protect your battery.

Vibration Description

  • 1 - Power On
  • 2 - System Error
  • 3 - Voltage too high
  • 5 - Low Voltage

Falcon Electronic Fire Control System

1-5 Shot Mode

  • Set the fire select to SAFE.
  • Pull the trigger and hold for 3 seconds to enter programming mode, and release when the motor makes a sound.
  • Pull the trigger once and release to enter 1-5 shot programming mode, release when the motor makes a sound.
  • Pull the trigger 1-5 times depending on the amount of shots you want a single trigger pull to make.
  • Set the fire select to full auto.

Trigger Sensitivity

  • Set the fire select to SAFE.
  • Pull the trigger and hold for 3 seconds to enter programming mode, and release when the motor makes a sound.
  • Pull the trigger twice and release to enter sensitivity programming mode, release when the motor makes a sound.
  • Pull the trigger between 1-3 times for different levels of sensitivity.
    • 1 - Highest Sensitivity
    • 2 - Standard Sensitivity
    • 3 - Low Sensitivity

Binary Fire Mode

  • Set the fire select to SAFE.
  • Pull the trigger and hold for 3 seconds to enter programming mode, and release when the motor makes a sound.
  • Pull the trigger three times and release to enter bump fire programming mode, release when the motor makes a sound.
  • Set the fire selector to semi-auto
  • Repeat the same process to disable bump fire

Reset to Default

  • Set the fire select to SAFE.
  • Pull the trigger and hold for 5 seconds to reset all settings.

The externals of the replica are metal where they would be on the real world gun. This includes things like the outer barrel, handguard, and receiver. If a real world gun has polymer parts then the gun will still be marked as full metal externals, examples of this would be an M4, where the Stock and Pistol grip are always made from Polymer.

Specification

General

Weapon Construction External
Weapon Type
Assault Rifle
Over 18 Only Icon
Over 18
Yes
Icon UKARA - United Kingdom Airsoft Retailer Association
Defence / UKARA Required
Yes, No,
FPS Icon
FPS (Feet Per Second), using 0.20g BB
Approx. 340fps ± 10%, using 0.20g BB
Site Legal Icon
Site Legal, using 0.20g BB
Yes
Screwdriver Icon
Pre-Built
Yes
Package
Included Items
Magazine
Skill Level Icon
User Skill Level
Starter
Patrol Base - Warning Icon
Warnings
Li-Po - Never Leave Charging Unattended
Li-Po - Only Use Approved Chargers
Li-Po - Charge in a Fire Safe Area

Weight and Dimension

Weight KG Icon
Weight (KG)
Approx. 2.242kg
Weapon Length Collapsed
Length (Collapsed)
71cm
Weapon Length Extended
Length (Extended)
80cm

Construction

Colour Wheel Greyscale
Primary Colour
Black
Colour Wheel Greyscale
Secondary Colour
Black
Two Tone Icon
Pre Two-Toned
No
Construction Icon
Construction
Alloy outer barrel assembly, magazine and stock guides. Polymer handguard, receiver, pistol grip and stock.
Weapon Construction External
External Construction
Polymer
Alloy
Gearbox Icon
Internal Construction
Polymer
Alloy

Weapon Specific

Power Source Icon
Powered By
Electric
Blowback Icon
Blowback
None
Weapon Platform
AR, M4 / AR-15 / M16,
Magazine Style Icon
Magazine Style
STANAG, M4 / AR Platform,
Fire Select Icon
Fire Selector
PatrolBase | Fire Select Safe
Safe
Patrol Base | Fire Select - Semi Automatic
Semi Automatic
Patrol Base | Full Automatic
Full Automatic
Patrol Base | Burst
Burst
Programmable
Binary
Weapon Safety Features Icon
Safety Features
Trigger Lock
Shooter Configuration Icon
Shooter Configuration
Right Handed
Weapon Configuration Icon
Weapon Configuration
Standard
Weapon Scale Icon
Weapon Scale
1:1
Suggested BB Weight
0.25g

Hop-Up

Hop-Up Unit Icon
Hop-Up Unit
Yes
Hop-Up Unit Adjuster Icon
Hop-Up Adjuster
Rotary
Hop-Up Unit Location Icon
Hop-Up Location
Behind mock bolt when charging handle to the rear

Furniture

Weapon Furniture Icon
Furniture
  • Railed Handguard
  • Flip-Up Ironsights
  • Railed Receiver
  • Sliding Stock
  • Ambidextrous Fire Selector
  • Threaded Outer Barrel
Rail System Icon
Rail System
20mm RIS / RAS , MLOK Rail System,
Icon Stock Positions
Stock Setting
Sliding
Weapon Length Extended
Stock Positions
3 Position
Sight Type Icon
Sight Type
Iron Sights
Sling Plate Icon
Sling Options
Stock , Loop ,

Barrel

Icon Thread Type
Outer Barrel Thread Type
Male
Icon Thread Direction
Outer Barrel Thread Direction
CCW (Counter Clockwise)
Outer Barrel Thread Size
14mm

Magazine Specific

Magazine Type
High Capacity, AEG,
Magazine BB Capacity
Approx. 300 Rounds
Magazine BB Fill Method
Fill Window
Magazine BB Fill Location
Top

Electric Gun Specific Information

Gearbox
Gearbox Icon
Gearbox Version
V2 Gearbox
Wiring Icon
Gearbox Wiring
Rear Wired
Spring Change Icon
Gearbox Quick Change Spring
Yes
Digital Trigger Icon
Gearbox Electronic Trigger
Yes
Battery Specific
Battery Connector
Patrol Base | Icon | Deans
Deans
,
Deans To Mini Tamiya
Deans To Mini Tamiya Adaptor
,
Compatible Battery
Compatible Battery Type
Li-Po
Compatible Battery Configuration
Stick
Compatible Battery Voltage
11.1v

Product Testing Data

Notepad Icon
Test Description
340 FPS +/- 10%
Notepad Icon
Tested Using
ASG Blaster 0.20g BBs
Notepad Icon
Test Date
07/01/21

Detailed Power Tests

FPS
FPS, using 0.20g BB
Approx. 340fps, using 0.20g BB

Related video

Double Eagle M90 Series Livestream

Size guide

Joule Charts

Special Instructions

These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

Tap the tabs below to open the relevant chart for your replica.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
325 0.98 1.23 1.37 1.47 1.57 1.77 1.96 2.11 2.21 2.45
328 1.00 1.25 1.40 1.50 1.60 1.80 2.00 2.15 2.25 2.50
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
335 1.04 1.30 1.46 1.56 1.67 1.88 2.09 2.24 2.35 2.61
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
345 1.11 1.38 1.55 1.66 1.77 1.99 2.21 2.38 2.49 2.76
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
355 1.17 1.46 1.64 1.76 1.87 2.11 2.34 2.52 2.63 2.93
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90
420 1.64 2.05 2.29 2.46 2.62 2.95 3.28 3.52 3.69 4.10
430 1.72 2.15 2.40 2.58 2.75 3.09 3.44 3.69 3.86 4.29
440 1.80 2.25 2.52 2.70 2.88 3.24 3.60 3.87 4.05 4.50
450 1.88 2.35 2.63 2.82 3.01 3.39 3.76 4.04 4.23 4.70
460 1.97 2.46 2.75 2.95 3.15 3.54 3.93 4.23 4.42 4.91
470 2.05 2.57 2.87 3.08 3.28 3.69 4.10 4.41 4.62 5.13
480 2.14 2.68 3.00 3.21 3.42 3.85 4.28 4.60 4.82 5.35
490 2.23 2.79 3.12 3.35 3.57 4.02 4.46 4.80 5.02 5.58
500 2.32 2.90 3.25 3.48 3.72 4.18 4.65 4.99 5.23 5.81
510 2.42 3.02 3.38 3.62 3.87 4.35 4.83 5.20 5.44 6.04
