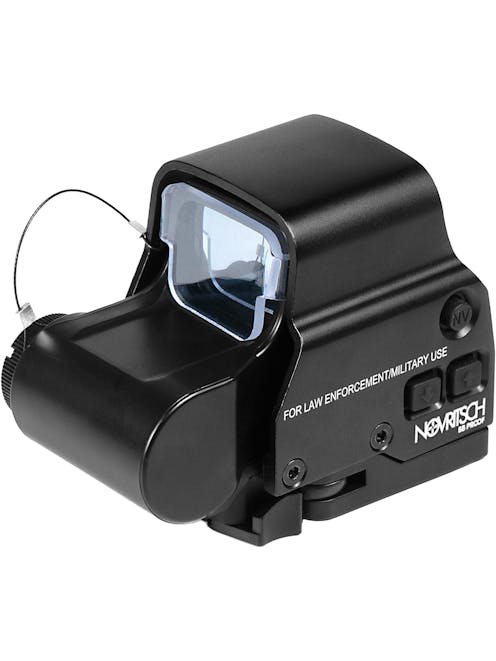

Novritsch Red Dot Sight V7 with Lens Protector

The Novritsch Red Dot Sight V7 with Lens Protector is based on real steel Holographic sights issued to elite forces of many nations' militaries for decades now, instantly recognisable to most from its exposure in popular media such as movies and video games. The holographic style of this sight allows for quick short-range engagements with the outer ring, but can also be effective at longer ranges using the central dot to be more precise, provided you have zeroed your sight prior to your game!

Due to the small size of the Red Dot Sight V7, it requires less rail space as compared to other holographic-style sights. This makes it the ideal choice for platforms with shorter barrels and limited rail space. It provides the same functionality as other holographic-style sights, such as the rear-facing controls, an integral 20mm Picatinny mount along with the ability to swap between red and green illumination with five different brightness levels for either colour.

The zero can be adjusted using a flat-head screwdriver on the pair of indented screws on the right side of the Red Dot Sight V7. The screw closest to the front of the sight is used to align the left/right (windage) of the reticle and the screw located further towards the rear of the sight adjusts elevation of the reticle.

Located on the left side of the sight, you have three buttons to control the colour and brightness of the illumination. The ''NV'' button in the centre of the control panel can be pressed to switch between red and green illumination. Either side of ''NV'' button are arrow buttons that can be pressed to adjust the brightness level of the illumination. The perk of side controls is that you can add a magnifier at the rear and still easily adjust brightness and reticle colour to suit your environment.

This Red Dot Sight V7 has a resilient alloy protective hood which contains and protects the precious electronics, but also the delicate lenses. The alloy hood offers some drop protection from any clumsy skirmish accidents, but also provides the iconic holographic aesthetic and a clean finish for the sight. The battery compartment is located at the front of the sight and is designed specifically to contain a single CR123A battery, but also works with rechargeable RCR123A cells. This compartment can be accessed by using a flathead screwdriver to loosen the battery cap and then removing it. Thoughtfully, the battery cap is tethered to the sight itself, meaning it will never fall off mid-game and render the optic a paperweight!

The Red Dot Sight V7 is extremely easy to mount onto a rail. On the left side, you'll find a QD throw lever and locking catch. Hold the catch at the front down to release the throw lever, open it and position the optic where you need it. With this done, push the throw lever back into place. You're now ready to rock!

Features

• Integral QD 20mm Picatinny rail mount - Compatible with 20mm rails
• Red and Green reticule colour options - Use the "NV" button to scroll between
• "BB Proof" Lexan lens protector included - Rated to 1.5 joules by Novritsch
• Iconic "Holographic" looks - Give your primary the elite look
• Side-facing on/off & brightness control buttons - Easily accessible with a magnifier mounted
• Windage and elevation adjustable via flathead screws on the right side - Zero to perfection!
• 5 Brightness adjustment levels for each colour - Set the brightness to suit the environment
• Compatible magnifiers:
  • Theta Optics 3x35 Flip-to-Side Magnifier w/QD Mount; V2
  • Novritsch 3X Optic Magnifier
• Battery: 1 x CR123A 3V Cell(not included)

Package Includes

• Novritsch Red Dot Sight V7 with Lens Protector
  • Lexan BB Shield
  • User manual

Special Instructions

While Novritsch markets this red dot sight as "BB Proof", your 12-month warranty through Patrol Base does not cover damage caused by BB impacts or misuse.
