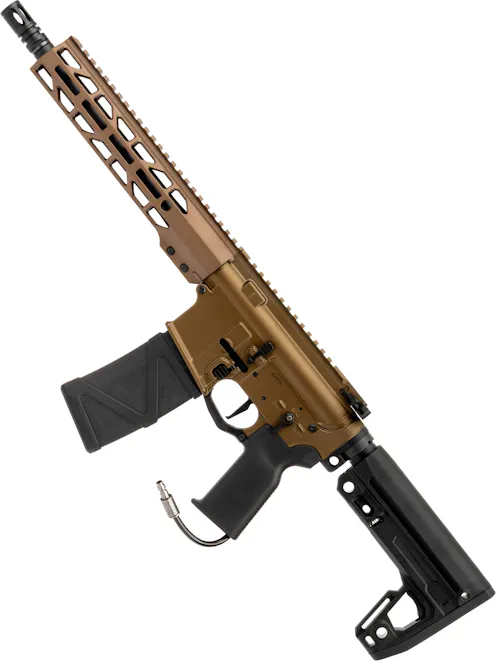

Novritsch SSQ4 M4/AR-15 HPA GBBR

Quick Start Guide

Novritsch Acadamy: SSQ4

Technical Details

Suggested Accessories

Marksman Setup: Novritsch Rifle Suppressor | Novritsch LPVO Rifle Scope | Novritsch Split M-LOK Bipod

CQB Setup: Novrtisch Rectangular Suppressor | Novrtisch Red Dot Sight V3 | WADSN M340A Scout Light Pro

Other Accessories: Novritsch Clipcam Cheater Catcher | HASTA Adaptive Mission Sling Gen.4

Platform Details

Starting at the front, we can find a birdcage flash hider, made from aluminium with a rock-solid finish. The birdcage is well-suited to the AR-15 design, but beneath, you’re equipped with 14mm CCW male barrel threading, ready for a tracer unit or suppressor of your choice.

Moving rearwards, we come to the handguard, a unique Novritsch design which ties in well with the SSR4 in terms of styling. Each side is adorned with dynamic angled vent ports, which considerably reduce weight, along with M-LOK negative space attachment slots at the 3, 6 and 9 o’clock positions. Up top, we have a 20mm Picatinny rail, ready to be kitted out.

Moving back to the receiver, we can take note of the ambidextrous fire controls, allowing left or right-handed players to take advantage of the intuitive AR-15 controls. For those with the skills, this also allows for shooting from either shoulder, ideal for tight, CQB environments.

The fire selector switch is just above the pistol grip, mirrored on either side for ease of use. Designed similarly to the KS-1 rifle, these fire selectors move smoothly between fire modes and click positively into place, with added texture for optimal control in wet weather.

On either side of the magazine well, we can find the mag release catch, an ambidextrous design easily accessed from either side. The bolt release catch is a similar story, a mirrored “ping pong paddle” style catch on either side, allowing you to lock the bolt back for chamber inspection and release it from the locked position after a reload.

On the right side, behind the ejection port, we have what is known as the forward assist or bolt closure device. In real steel, this allows you to force the bolt closed manually should it not go fully into battery. In Airsoft terms, this part doesn’t serve a function, but is a great touch for realism.

Running along the top, we have a 20mm Picatinny rail, allowing red dot sights, scopes and other 20mm Picatinny accessories to be fitted. The rail aligns perfectly with that of the handguard, giving you a sleek look and plenty of uninterrupted rail space to work with.

At the front of the rail, we can find the TDC HOP-up adjuster dial, allowing you to tune the amount of backspin applied to your BBs, seeking the flattest possible trajectory. This HOP-up is very effective, and we recommend using at least 0.36g BBs to take full advantage of its strong HOP-up effect.

At the rear of the receiver rail, we come to the charging handle, complete with latches on either side, providing ambidextrous functionality. Being a GBBR-based design, you’ll need to rack the charging handle before the first shot, and thankfully, this is easy from either side of the platform.

Moving down, we come to the trigger guard, a KS-1-style enlarged guard ideal for gloved shooters. The trigger guard also features a textured finger ledge, providing an index point for your trigger finger to encourage safe handling.

The trigger itself is a flat design, keeping aesthetics consistent across other Novritsch platforms while allowing for rapid double-taps in semi-auto mode. The front face features an ergonomic curve, ensuring your finger stays fatigue-free, even if it’s working hard!

The pistol grip is a unique design, inspired by the latest real steel AR-15 pistol grips, set at a more vertical angle than traditional AR grips to reduce wrist fatigue from modern shooting stances. While the grip tang is compatible with real steel and GBBR AR-15 grips, modification will be required to provide a route for the HPA cable in the case of the HPA version.

At the rear of the receiver, the SSQ4 is equipped with a QD sling plate, offering a QD sling socket on either side, ready for QD sling swivels. The plate is in an ideal spot for a single-point sling, but the slots on the handguard and stock mean you’re not short of options if you prefer a two or three-point sling.

After the sling plate, we have the 6-position M4/AR-15 buffer tube, offering 6 adjustment positions for the pre-installed TS2 style stock, featuring a well-concealed low-profile adjustment lever and two QD sling sockets on either side. The stock also features a conventional sling slot for those who prefer the old ways.

The QD sling sockets are present on either side, with one at the front of the stock and one at the toe, giving you the option to add a QD sling swivel to run a two-point sling. As part of its low-profile, snag-reducing design, the adjustment lever of the TS2 is a trigger-style button inside the toe of the stock, well out of the way of potential snags, so you can stay fleet-footed, even when all geared up.

Internals

Inside, the SSQ4 is considerably pre-upgraded, equipped with robust steel trigger group parts and a steel bolt catch. These are parts most GBBR users would upgrade to enhance durability, saving you money, time and hassle in the long term.

The inner barrel is a 6.03mm tightbore example, offering impressive accuracy and consistency. The barrel has a proprietary 8mm outer diameter, but is compatible with standard VSR/GBB style HOP-up buckings for unbridged barrels, should you feel the need to upgrade.

The bucking shouldn't need replacing, as we're generously equipped with a Maple Leaf Autobot 60° silicone example, providing an incredible HOP-up effect which demands heavy BBs. We've had fantastic results using 0.40g BBs out to 60 meters, an incredible feat for an out-of-the-box platform.

To provide adjustable FPS, an NPAS-style adjustable rocket valve is pre-installed. The NPAS allows you to adjust how much gas is directed down the barrel and how much goes into cycling the bolt, meaning you can crank up recoil and cyclic speed by sacrificing FPS or go high FPS with a slightly slower cycling bolt.

Naturally, FPS can also be adjusted through your HPA regulator, but Novritsch recommends a minimum input of 145 PSI. If you find you're above site limits at 145 PSI, use the NPAS to tune FPS down to a more sensible level to maintain a high cyclic speed.

Features

• Full metal construction
• 6.03mm Tightbore inner barrel - Superb accuracy potential
• 14mm CCW Male threaded outer barrel - Tracer/suppressor ready
• M-LOK handguard - Ready for M-LOK accessories at 3, 6 & 9 o'clock
• QD Sling sockets - Ready for QD sling swivels, pair with the rear points for two-point slings
• 20mm Picatinny railed receiver - Ready for a red dot sight or scope
• External TDC HOP-up adjuster - On the top rail, easily accessible for mid-game adjustment
• Ambidextrous charging handle - Easy access from either side
• Ambidextrous magazine release - Easy mag changes for left or right-handed shooters
• Ambidextrous bolt release - Drop the bolt from either side & manually lock from the left side
• Flat trigger - Great for rapid double taps, rounded front face to enhance comfort
• Enlarged trigger guard - Easy access to the trigger, even with full-finger gloves
• Ergonomic pistol grip - More vertical angle for reduced wrist fatigue in modern stances
• Ambidextrous QD sling plate - Sockets on each side and one at the rear
• 6-Position M4/AR-15 buffer tube - Adjust the stock to suit your body type/loadout
• TS2-Style sliding stock - QD Sling sockets built-in, grippy rubber butt plate
• Internals:
  • Steel trigger group parts
  • Steel bolt catch
  • Maple Leaf Autobot 60° Silicone HOP-up bucking (VSR/GBB Type)
  • 6.03mm Inner barrel (Proprietary 8mm outer diameter, fits VSR/GBB buckings)

Package Includes

• Novritsch SSQ4 M4/AR-15 HPA GBBR
  • 100rnd Mid-cap magazine
  • NPAS tool

Special Instructions

When connecting your airline, you MUST ensure the bolt is locked back to prevent potential negligent discharges. When the line is connected, a small amount of air will be released. This is a normal part of the SSQ4's operation, but it will cause the rifle to cycle if the bolt is not locked back. If there is a BB in the chamber, it will be discharged.

To lock the bolt back, follow these steps:

• Pull the charging handle back and hold it in the rearmost position
• Press the lower section of the bolt catch on the left side

This should result in the bolt remaining in the rearmost position. Once you've connected your air line, you can release the bolt by pressing the wider section at the top of either bolt release catch to commence shooting.
