Umarex H&K MP7 A1 AEG

Umarex
Code:
£424.99
  • 1:1 Scale Licensed Replica
  • Functional bolt stop/release
  • Very high rate of fire

If you have been looking for a compact SMG with an impressive rate of fire, loaded with realistic features and fully licensed trademarks then you have found what you need! The Umarex MP7 A1 AEG features a full-sized AEG gearbox, making this compact AEG able to compete with the biggest and best! The inclusion of functional bolt hold-open/release, being sized to 1:1 scale with the real firearm, and the use of realistic materials throughout the build make the MP7 A1 AEG practically peerless.

Tappet plate and nozzle failures due to 11.1v use WILL NOT be covered by any warranty and repairs will be charged.

Full description

Description

The Real H&K MP7 A1

The H&K MP7A1 began its life as the H&K PDW, first shown to the public in 1999 and a late entrant into the NATO 1989 RFP for an easily transportable, lightweight, and easily controllable firearm to be issued to rear echelon troops. This new pistol replacement was expected to have the capability to defeat Soviet titanium body armour out to 200 meters due to fears at the time of mass parachute assaults behind NATO lines. H&K's answer to this requirement was the 4.6x30mm round, effectively a miniaturized rifle cartridge, and the MP7 platform. The MP7 uses a shrunk-down version of the G36's short-stroke gas piston operating system, with a rotating, locking bolt carrier. This was a significant departure from the traditional design of PDW and SMG-type firearms and allows the MP7 to be extremely lightweight and have low felt recoil.

The MP7 also features a non-reciprocating ambidextrous charging handle and a bolt hold-open function; characteristics that generally do not find their way into SMGs and PDWs due to the compact nature of these platforms and the additional complexity required for these advanced, rifle-like features. Although the MP7 was designed for behind the lines soldiers such as logistics troops and other non-combat roles it has found its way into the hands of some of the most elite operators in the world due to its controllability in full auto, compact and concealable nature, and high cyclic rate. Notable users include the UK MOD Police, German KSK, French GIGN, and the US Navy SEALs, who are rumoured to have used at least 1 MP7 during Operation Neptune Spear, the raid which saw Osama Bin Laden meet his end.

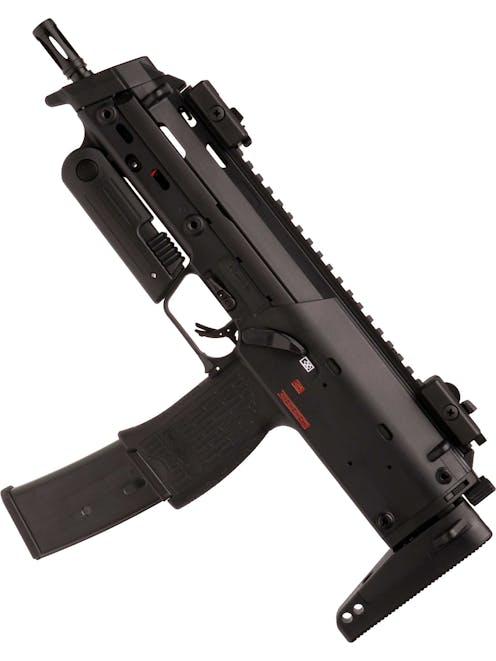

The Umarex H&K MP7 A1 AEG

Umarex is well known in the Airsoft world for producing some of the best quality, high performance and most realistic Airsoft replicas available. Their MP7 A1 AEG definitely meets the standard, but what makes this MP7 different to the previous electric iteration of the MP7? This latest MP7 AEG is a full-sized 1:1 scale replica, being nearly identical to the real MP7 and the GBB MP7 in size, making it a more realistic replica and providing more room for more features, such as a functional bolt stop/release. The Umarex MP7 A1 AEG also uses a full-sized AEG gearbox with a capable high-speed motor and comes out of the box perfectly able to compete with other high-end AEGs, if not surpass them in rate of fire, range and muzzle velocity. No longer are electric MP7s relegated to being backup weapons and CQB only tools!

Starting at the tip of the barrel, we can find a steel MP7 birdcage style flash hider, which is correctly shaped to match the latest variant of this muzzle device and is finished in dark gunmetal, giving some nice contrast with the matt black of the high-density polymer body. The flash hider is attached via 12mm CW threads, meaning this AEG MP7 can use the same suppressor adaptor as the GBB version. At the rear of the flash hider, we come to the front handguard cap, which features an integral hand-stop to prevent your hand from slipping in front of the muzzle, a mistake that may result in some significant pain given this is a full power AEG. Beneath the handguard cap, we can find this AEGs battery compartment which can be accessed by squeezing the tab at the bottom of the handguard cap and removing the handguard cap towards the front. This AEG uses a mini-Tamiya connector and can house up to an 1100-1200 mAH stick battery within the battery compartment(we only recommend a 7.4V LiPo). The location of this battery compartment makes using an external battery inside a PEQ box extremely easy should you want to use a larger capacity battery.

Next, we arrive at the receiver/body of the AEG, which is appropriately constructed from high-density fibre reinforced polymer with a very similar texture and finish to the real MP7. The polymer is rough to the touch and shows no signs of flex, squeaks, or rattle. At the very front of the body, we can find two sling points, one on either side, which are perfect for HK hook style slings, or others with the use of a keyring or paracord loop. On either side of the body there are threaded holes for the attachment of Picatinny rails which are available separately should you need the additional rail space. Speaking of rail space, the MP7s 12 o'clock position features a massive, uninterrupted 28cm of aluminium Picatinny 20mm rails; enough space for a PEQ box, Holographic red dot sight, and magnifier! If you don't believe me just ask the US Navy SEALs (or pop "SEAL MP7" into your favourite search engine)!

Out of the box, the MP7's top rail comes with dual function backup iron sights installed; when flipped down the sights can be used as open "pistol-style" sights, and when flipped up they provide a set of rifle aperture sights. This allows the MP7 to be used with the sights deployed, with a crisp front sight blade protected with "ears" on either side and a narrow aperture for precise aiming. Alternatively, it can be used as if it was a pistol, held outstretched, with one hand if you like, using the open pistol sights. The MP7 A1 iron sights can also be removed if you would rather use alternative aiming devices.

The front end of the MP7 AEG also features an integral folding vertical grip, which can be used in either the folded position as a standard handguard or deployed and locked as a vertical foregrip. The grip can be deployed by pulling the ridged locking piece towards the MP7's trigger guard, which will unlock the grip and allow it to be rotated 90 degrees, where it will lock in the deployed position. To fold the VFG, pull the locking piece downwards and the grip can then be folded back down in line with the receiver. To the rear of the folding VFG, we can find the trigger guard, which is enlarged to allow for use with gloves. Within the trigger guard lies the trigger, which is a two-stage design. The centre of the trigger is a separate part, which needs to be pressed with the trigger in order to fire the MP7. This makes the MP7 one of the safer designs out there, as even when the manual safety is turned off the weapon is still protected against accidental discharges, and requires an intentional trigger pull to fire.

The controls of the MP7 are all ambidextrous, being mirrored on each side making this PDW perfect for a left-handed user or anyone who likes to operate their AEG from either shoulder in order to take advantage of the ability to shoot from the left or right-hand corners with equal effectiveness. The fire selector lies comfortably under the thumb when the MP7 is held in a firing grip, with the bolt release catch being accessible using the trigger finger. The fire selector markings take the form of attractive high visibility pictograms in H&K styling, with the safe mode indicated in white and semi and full auto in red.

The AEG's magazine release is similarly placed to that of a USP or MK23 pistol and is an ambidextrous design positioned between the pistol grip and trigger guard. A push down on the textured mag release surfaces on either side will release the MP7s magazine, which is a 120 round medium-capacity mag, which includes a bolt stop/release function. The bolt stop/release function prevents the MP7 AEG from firing when the magazine is empty, and following a magazine change, requires the bolt release catch to be pressed before the MP7 is back in action. This feature is extremely rare on Airsoft guns in general, and the MP7 joins the mere handful of elite AEG platforms capable of such realistic operation. This feature is great for Milsim players, or anyone who wants a more realistic skirmishing experience: there is nothing quite like the immersive experience of pulling off a swift and realistic reload with the MP7 A1 AEG! The bolt stop/release also serves to hold the mock bolt carrier back when the charging handle is pulled, providing access to the MP7's gear adjustable HOP unit. Following a HOP adjustment, simply press down on the textured upper surface of the bolt stop/release to send the mock bolt home.

Above the bolt stop/release on the left side, we can see the "Cal 4.6mmx30" markings, with "Heckler and Koch GmbH" appearing on the right side, keeping this replica realistic and faithful to the real firearm. The pistol grip of the MP7 is a straight design, in similar styling to a MAC-10 or Uzi, but unlike those platforms, the MP7s designers actually cared about ergonomics. The MP7's grip has ridged texture on the sides, and aggressive stippling on the front and rear panels, keeping the AEG comfortable to hold but preventing it from being easily dropped. The rounded rear strap of the grip makes the MP7 extremely comfortable to hold, providing support for the web of the hand, and feeling somehow silky smooth but secure at the same time. At the bottom of the pistol grip we can find the H&K logo, and "MP7 A1" moulded into the designation panels on either side of the pistol grip. This gives the MP7 A1 its ultra-realistic flair and reminds us that this is a fully licenced replica endorsed by H&K themselves. The rear of the body also features a sling loop on either side, close to the upper Picatinny rail, adding to the plethora of sling mounting options on the MP7.

As we reach the rear of the MP7 we come to the sliding retractable stock, which can be deployed in any of four positions depending on the user's build, and whether or not they use body armour. The stock bars are made from metal, and interface perfectly with the grooves on the MP7 body, in classic H&K style. When collapsed, the MP7 is extremely slim, making it less prone to snagging on gear by virtue of the design itself. The butt plate features linear checkering, ensuring the stock will not slip off your shoulder during firing. The stock release catch can be found on the right side of the body, near the rear, and can be pushed down to deploy/collapse the stock. The stock also features a sling loop on either side and two holes near the "toe" of the stock. These holes provide helpful storage for the MP7's body pins during disassembly, a hallmark H&K feature that dates back to German firearms designs pre-WW2.

Though this MP7 is larger than the AEP versions out there, being a realistic 1:1 scale replica, when you have it in your hands you will wonder how they managed to fit a proper AEG gearbox inside. We are scratching our heads here too, the MP7's gearbox is somewhere between the size of an AEP and AEG gearbox but is a proprietary design made specifically for the MP7. This gearbox is remarkably smooth and well put together, and with its high speed motor can deliver a devastating rate of fire, keeping the enemies heads down, if they know what's good for them! This gearbox is not compatible with version.2 or version.3 internal parts such as gears and pistons but it performs easily as well as any enhanced v.2 or v.3 AEG. No need to upgrade this bad boy, it is shooting right on the money at 320 FPS, very consistently and absurdly quickly. We would like to see this gearbox find its way into more compact weapons platforms, we can only hope Umarex will get this superb gearbox into more SMGs!

Recommended battery is 7.4V 1300mAh 15C LiPo Stick Battery

compatible rail section can be found here ASG AR36 Hand Guard RIS Side Rail x2

Tappet plate and nozzle failures due to 11.1v use WILL NOT be covered by any warranty and repairs will be charged.

Features

  • New version gearbox
  • Two-stage safety-trigger
  • Folding vertical foregrip
  • Gear adjustable HOP unit
  • H&K licenced trademarks
  • 12mm CW threaded barrel
  • Functional Bolt stop/release
  • 3 sling points on either side
  • Ambidextrous controls - all of them!
  • 4 Position retractable sliding stock
  • Dual function backup iron sights
  • 28cm Picatinny 20mm upper rail
  • Mounting points for side rails (available separately)
  • Extremely compact for a full-sized AEG
  • The rate of fire is out of this world

Package Includes

  • UMAREX H&K MP7 A1 AEG
  • 120 rnd Mid-capacity Magazine
  • User Manual

Specification

General

Weapon Construction External
Weapon Type
Submachine Gun
Over 18 Only Icon
Over 18
Yes
Icon UKARA - United Kingdom Airsoft Retailer Association
Defence / UKARA Required
Yes, No,
FPS Icon
FPS (Feet Per Second), using 0.20g BB
Approx. 290fps ± 10%, using 0.20g BB
Site Legal Icon
Site Legal, using 0.20g BB
Yes
Screwdriver Icon
Pre-Built
Yes
Package
Included Items
  • Magazine
  • Instruction Manual
Skill Level Icon
User Skill Level
Regular Player, Experienced Player,

Weight and Dimension

Weight KG Icon
Weight (KG)
Approx. 1.541kg
Weapon Length Collapsed
Length (Collapsed)
42cm
Weapon Length Extended
Length (Extended)
64cm

Construction

Colour Wheel Greyscale
Primary Colour
Black
Construction Icon
Construction
High density polymer receiver. Aluminium Rails, stock bars, sights and controls. Steel flash hider, body pins and screws.
Weapon Construction External
External Construction
Polymer
Aluminium
Steel
Gearbox Icon
Internal Construction
Polymer
Alloy
Aluminium
Steel

Weapon Specific

Power Source Icon
Powered By
Electric
Blowback Icon
Blowback
None
Weapon Platform
Submachine Gun, MP7A1,
Magazine Style Icon
Magazine Style
Sub Machine Gun, UMAREX MP7 A1 AEG,
Fire Select Icon
Fire Selector
PatrolBase | Fire Select Safe
Safe
Patrol Base | Fire Select - Semi Automatic
Semi Automatic
Patrol Base | Full Automatic
Full Automatic
Weapon Safety Features Icon
Safety Features
Trigger Lock, Two Stage Trigger,
Shooter Configuration Icon
Shooter Configuration
Ambidextrous
Weapon Configuration Icon
Weapon Configuration
Standard
Weapon Scale Icon
Weapon Scale
1:1
Suggested BB Weight
0.25g

Hop-Up

Hop-Up Unit Icon
Hop-Up Unit
Yes
Hop-Up Unit Adjuster Icon
Hop-Up Adjuster
Gear
Hop-Up Unit Location Icon
Hop-Up Location
Behind mock bolt carrier, accessible when mock bolt carrier is locked to the rear via the charging handle.

Furniture

Weapon Furniture Icon
Furniture
  • Flip-Up Ironsights
  • Railed Receiver
  • Ambidextrous Charging Handle
  • Ambidextrous Magazine Release
  • Sliding Stock
  • Ambidextrous Fire Selector
  • Folding Foregrip
  • Bird Cage Flash Hider
  • Ambidextrous Bolt Release
  • Textured Pistol Grip
  • Handstop
  • sling points front and rear
Rail System Icon
Rail System
20mm RIS / RAS , Railed Mount Available ,
Icon Stock Positions
Stock Setting
Sliding , Multi-Position ,
Weapon Length Extended
Stock Positions
4 Position
Sight Type Icon
Sight Type
Open Iron Sight, Aperture Iron Sight,
Sling Plate Icon
Sling Options
Stock , Handguard , Receiver ,

Barrel

Outer Barrel Length (in)
8''
Icon Thread Type
Outer Barrel Thread Type
Male
Icon Thread Direction
Outer Barrel Thread Direction
CW (Clockwise)
Outer Barrel Thread Size
12mm
Inner Barrel Length
210mm

Magazine Specific

Magazine Type
Medium Capacity , AEG,
Magazine BB Capacity
Approx. 120 Rounds
Magazine BB Fill Method
Speed Loader
Magazine BB Fill Location
Top

Electric Gun Specific Information

Gearbox
Wiring Icon
Gearbox Wiring
Front Wired
Spring Change Icon
Gearbox Quick Change Spring
No
Digital Trigger Icon
Gearbox Electronic Trigger
Yes
Split Gearbox Icon
Split Gearbox Design
No
Motor
Airsoft Motor Icon
Motor Type
High Speed
Battery Specific
Battery Connector
Patrol Base | Icon | Mini Tamiya
Mini Tamiya
Suggested Battery
Suggested Battery Type
Li-Po
Suggested Battery Configuration
Small Stick [max 1100mAh]
Suggested Battery Voltage
7.4v

Product Testing Data

Notepad Icon
Test Description
320 FPS +/-10%
Notepad Icon
Tested Using
0.2g ASG BLASTER
Notepad Icon
Test Date
11/10/21

Related video

Umarex H&K MP7 AEG | Product Showcase

Further Information

Special Instructions/Warranty

Though the user manual provided with the Umarex MP7 A1 AEG states that it is compatible with 11.1V LiPo batteries, we do not recommend this with UK spec. MP7 A1 AEGs. This is due to the reduced power level, the use of higher voltage batteries may damage the internals of the gearbox. This AEG has a working bolt hold open, and as such will not fire with the magazine removed, or with no BBs in the magazine. If you wish to dry fire this AEG, you must hold the bolt release catch down in a similar manner to a GBB pistol.

Recommended battery is 7.4V 1300mAh 15C LiPo Stick Battery

compatible rail section can be found here ASG AR36 Hand Guard RIS Side Rail x2

Tappet plate and nozzle failures due to 11.1v use WILL NOT be covered by any warranty and repairs will be charged.

Size guide

Joule Charts

Special Instructions

These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

Tap the tabs below to open the relevant chart for your replica.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
325 0.98 1.23 1.37 1.47 1.57 1.77 1.96 2.11 2.21 2.45
328 1.00 1.25 1.40 1.50 1.60 1.80 2.00 2.15 2.25 2.50
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
335 1.04 1.30 1.46 1.56 1.67 1.88 2.09 2.24 2.35 2.61
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
345 1.11 1.38 1.55 1.66 1.77 1.99 2.21 2.38 2.49 2.76
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
355 1.17 1.46 1.64 1.76 1.87 2.11 2.34 2.52 2.63 2.93
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90
420 1.64 2.05 2.29 2.46 2.62 2.95 3.28 3.52 3.69 4.10
430 1.72 2.15 2.40 2.58 2.75 3.09 3.44 3.69 3.86 4.29
440 1.80 2.25 2.52 2.70 2.88 3.24 3.60 3.87 4.05 4.50
450 1.88 2.35 2.63 2.82 3.01 3.39 3.76 4.04 4.23 4.70
460 1.97 2.46 2.75 2.95 3.15 3.54 3.93 4.23 4.42 4.91
470 2.05 2.57 2.87 3.08 3.28 3.69 4.10 4.41 4.62 5.13
480 2.14 2.68 3.00 3.21 3.42 3.85 4.28 4.60 4.82 5.35
490 2.23 2.79 3.12 3.35 3.57 4.02 4.46 4.80 5.02 5.58
500 2.32 2.90 3.25 3.48 3.72 4.18 4.65 4.99 5.23 5.81
510 2.42 3.02 3.38 3.62 3.87 4.35 4.83 5.20 5.44 6.04
