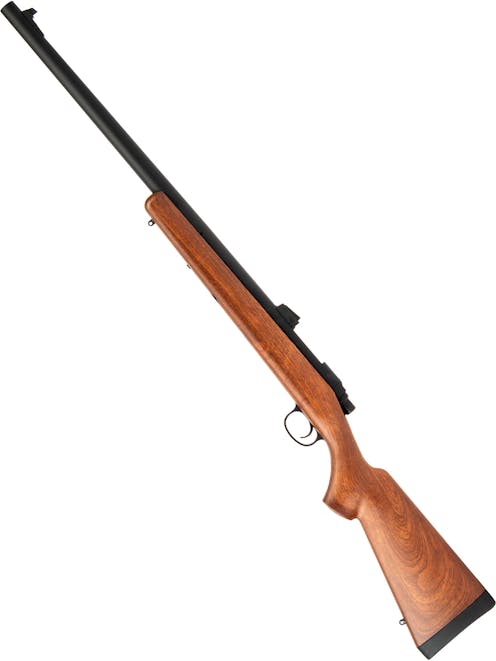

CYMA CM.701A Spring Bolt Action Sniper Rifle

CYMA
Code: 61999
£99.99
  • Faux wood stock
  • 6.03mm Tightbore inner barrel
  • Tokyo Marui VSR-10 Pro clone

If you are looking for an affordable base gun with a classic look for your dream sniper rifle build, this is ideal! The CYMA CM.701A Spring Bolt Action Sniper Rifle is styled after the R700 series of real-steel bolt-action rifles on the outside and is a clone of the Tokyo Marui VSR-10 Pro on the inside. The outer barrel and receiver are constructed from alloy, and the stock is high-density polymer designed to look like wood, matching the metal proportions of the real thing perfectly.

On the inside, CYMA has generously added a 6.03mm tightbore inner barrel to improve accuracy and provide a slight FPS boost. Also present is a far stronger spring than in the Tokyo Marui version, providing you with a much more skirmishable platform straight out of the box. If you want to build a beast of a sniper rifle, this is a great start, just don't forget you will need an aftermarket 20mm Picatinny rail to mount a scope!

Full description

Description

The Tokyo Marui VSR-10 was the base platform of choice for sniper builds for decades, thanks to its wide aftermarket and superb performance straight out of the box. Nowadays, snipers prefer to base their build on cheaper alternatives like the CM.701A, saving a few quid on the base gun so it can be reinvested in upgrade parts, although this platform is skirmish-ready without any upgrades.

Starting at the tip of the 22-inch outer barrel, we have the front iron sight, which is a flat blade-style sight which can be removed via the screw in its base. This rifle does not come with a scope rail, so we recommend leaving the front sight in place until you are ready to move up to a scope. There are several scope mount options available for this rifle, such as the Slong Airsoft 20mm rail.

The barrel itself is tapered towards the receiver, just like the Remington Model 700/R700, the VSR-10 is based on. In a real rifle, this helps improve handling by reducing the weight at the tip while maintaining superb accuracy thanks to its wide, rigid receiver interface, but for Airsoft, this is merely an aesthetic choice to keep the rifle looking realistic.

Below the barrel, we come to the stock/chassis of the CM.701A, which is constructed from high-density polymer but is styled to look like wood. This is a big step up from other VSR clone rifles, which often have a smooth, shiny finish which screams "toy gun".

The magazine release is at the front of the chassis, with the magazine well located just behind. In front of the magazine release, we are treated to a steel Harris-style bipod/sling stud, which can be used to mount either a Harris-style bipod or a sling loop. If you like to stay sneaky in-game, we recommend running a loop of paracord through the slud to mount a sling instead of using a metal sling loop, as this will eliminate rattle and allow stealthy players to perform at their best.

Moving rearwards, we come to the receiver, which is constructed from alloy, with the rear iron sight mounted up top. The rear sight can be adjusted for both windage and elevation using an Allen key, and is the open style of rear sight, which allows for a great field of view so you can track moving targets more easily than with aperture sights.

The safety catch is located on the right side, well within reach of the thumb when the rifle is held in a firing grip. The forward position is fire, marked with an engraved "F", and the rearmost is safe, marked with an "S". This safety is fantastic as it requires very little movement to disengage, so you can avoid drawing the eye of an unsuspecting target in-game!

The bolt handle is located at the rear of the receiver, on the right side. To cock the rifle, you will need to rotate the bolt upwards, draw it back as far as it will go, push it forward again and rotate it back into place to lock, just like a real bolt-action rifle. The bolt handle is textured for added grip and is quite easy to pull for a strong-springed rifle.

Directly below the bolt handle, we come to the trigger, which is safely concealed inside the alloy trigger guard. The trigger is the typical curved type, designed to encourage proper finger positioning. The location of the trigger makes the CM.701A easy to shoot quickly despite its bolt action mechanism, similar to the old Lee Enfield rifles, which were known for their ability to be fired extremely quickly.

Behind the trigger guard, we come to what is known as a "Semi-pistol-grip", the traditional gripping location for bolt-action rifles. The grip is set at a comfortable angle for shooting both prone and standing. The stock itself is a simple fixed stock with a rubber butt plate for optimal grip and a Harris-style sling lug at the toe, ready for sling swivels or paracord and your choice of sling.

On the inside, the CM.701A is generously equipped with a 6.03mm tightbore inner barrel straight out of the box, along a 1 joule mainspring, making follow-up shots fast and easy. The tightbore should give you the edge in accuracy and will also increase FPS by a small margin thanks to improved air efficiency. Internally, the CM.701A is compatible with upgrade parts for the TM VSR-10 range, so you've plenty of choice if you want to upgrade FPS!

Whether it is for plinking in the garden or harassing the enemy team at long range in a skirmish, the CM.701A presents fantastic value and a stylish look for any budding Airsoft sniper. Whether you're using it as it is or upgrading it to the maximum, this affordable platform is up for the challenge!

Features

  • Full metal construction
  • 6.03mm Tightbore inner barrel - Improved accuracy and raised FPS
  • Spring bolt-action sniper rifle - Requires cocking before each shot
  • Tokyo Marui VSR-10 Pro clone - Compatible with TM VSR-10 aftermarket upgrades
  • Open iron sights - Rear sight adjustable for windage and elevation
  • Tapered outer barrel - Matches real R700 rifles perfectly
  • Faux wood high-density polymer chassis - Rock solid, high-quality textured feel
  • Harris bipod/sling lugs front and rear - Mount a bipod on the front or a two-point sling
  • Rubber butt plate - Grips the shoulder well in any weather conditions
  • Manual safety catch on the right side - Forward for fire, rearward for safe
  • Ambidextrous magazine release - Button on the centre of the chassis, just ahead of the magwell
  • Compatible with VSR/BAR-10 magazines - Plenty of spares available!
  • Scope rail NOT included

Package Includes

  • CYMA CM.701A Spring Bolt Action Sniper Rifle
    • 30rnd Magazine

Specification

General

Weapon Construction External
Platform Type
Sniper Rifle
Over 18 Only Icon
Over 18
Yes
Icon UKARA - United Kingdom Airsoft Retailer Association
Defence / UKARA Required
Yes, No,
Screwdriver Icon
Prebuilt
Yes
Package
Included Items
Magazine
Skill Level Icon
Skill Level
Regular Player

Testing

FPS Icon
FPS, using 0.20g BBs
Approx.330fps ± 10%, using 0.20g BBs
Testing Notes
Tested using 0.20g Delta Armory Diamond BBs

Weight and Dimension

Weight KG Icon
Weight (KG)
Approx.2.2KG
Weapon Length Collapsed
Length
107cm

Construction

Colour Wheel Greyscale
Primary Colour
Faux Wood
Faux Wood
Construction Icon
Construction
Alloy outer barrel, receiver, bolt handle & trim parts. Steel Harris lugs. Faux wood stock. High density polymer trigger guard.

Weapon Specific

Power Source Icon
Powered By
Spring
Platform
Platform
Sniper Rifle, VSR / Bar10,
Magazine Style Icon
Magazine Compatibility
CYMA CM.701 magazines & TM VSR-10 magazines.
Fire Select Icon
Fire modes
PatrolBase | Fire Select Safe
Safe
Fire
Weapon Safety Features Icon
Safety Features
Trigger Lock
Shooter Configuration Icon
Shooter Configuration
Right Handed
Weapon Configuration Icon
Platform Configuration
Bolt Action
Weapon Scale Icon
Platform Scale
1:1
Suggested BB Weight
Suggested BB Weight
0.25g

Hop-Up

Hop-Up Unit Adjuster Icon
HOP-Up Adjuster Type
Slider
Hop-Up Unit Location Icon
HOP-Up Adjustment Location
On the left side of the stock.

Furniture

Weapon Furniture Icon
Furniture
  • Harris Bipod Lug
  • Ambidextrous Magazine Release
  • Ironsights
  • sling points front and rear
  • Rubber butt plate
Rail System Icon
Rail System
None, Railed Mount Available,
Icon Stock Positions
Stock Type
Fixed
Sight Type Icon
Sight Type
Iron Sights, Open Iron Sight,
Sling Plate Icon
Sling Options
Stock, Handguard, Harris Lug,

Barrel

Outer Barrel Length (in)
22''
Inner Barrel Diameter
Inner Barrel Diameter
6.03mm
Inner Barrel Length
Inner Barrel Length
440mm

Magazine Specific

Magazine Type
Magazine Type
Sniper Rifle, Low Capacity,
Magazine BB Capacity
Magazine BB Capacity
Approx. 30 Rounds

Size guide

Joule Charts

Special Instructions

These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

Tap the tabs below to open the relevant chart for your replica.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
325 0.98 1.23 1.37 1.47 1.57 1.77 1.96 2.11 2.21 2.45
328 1.00 1.25 1.40 1.50 1.60 1.80 2.00 2.15 2.25 2.50
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
335 1.04 1.30 1.46 1.56 1.67 1.88 2.09 2.24 2.35 2.61
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
345 1.11 1.38 1.55 1.66 1.77 1.99 2.21 2.38 2.49 2.76
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
355 1.17 1.46 1.64 1.76 1.87 2.11 2.34 2.52 2.63 2.93
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90
420 1.64 2.05 2.29 2.46 2.62 2.95 3.28 3.52 3.69 4.10
430 1.72 2.15 2.40 2.58 2.75 3.09 3.44 3.69 3.86 4.29
440 1.80 2.25 2.52 2.70 2.88 3.24 3.60 3.87 4.05 4.50
450 1.88 2.35 2.63 2.82 3.01 3.39 3.76 4.04 4.23 4.70
460 1.97 2.46 2.75 2.95 3.15 3.54 3.93 4.23 4.42 4.91
470 2.05 2.57 2.87 3.08 3.28 3.69 4.10 4.41 4.62 5.13
480 2.14 2.68 3.00 3.21 3.42 3.85 4.28 4.60 4.82 5.35
490 2.23 2.79 3.12 3.35 3.57 4.02 4.46 4.80 5.02 5.58
500 2.32 2.90 3.25 3.48 3.72 4.18 4.65 4.99 5.23 5.81
510 2.42 3.02 3.38 3.62 3.87 4.35 4.83 5.20 5.44 6.04
