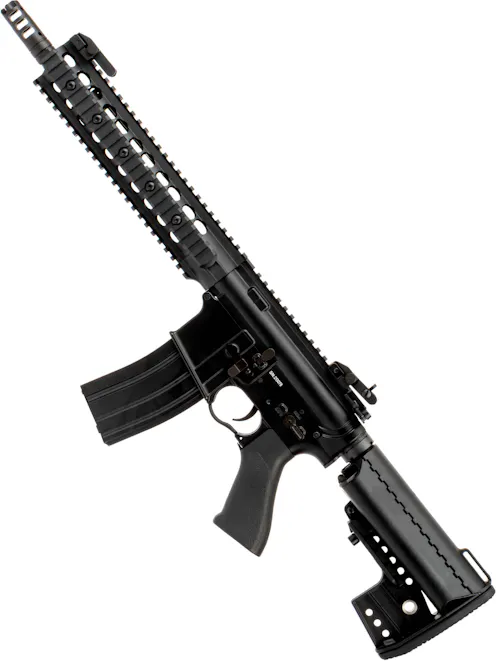

CYMA Gen.2 CM.091 M4/AR-15 URX AEG

Starting at the front, we can find an aggressive-looking muzzle brake made from steel. The brake looks fantastic at the front end of this menacing build, but can be swapped out for a tracer unit or suppressor thanks to the common 14mm CCW male threads at the tip of the barrel. The muzzle brake is held on by a grub screw, so make sure you remove this before unscrewing it.

Moving rearwards, we come to the handguard, inspired by the real steel URX free-floated handguard. 20mm Picatinny rails are present at the 3, 6, 9 and 12 o'clock positions, ready for your choice of accessories, from grips to lasers and tactical flashlights. The bottom section of the URX can also be removed to allow an M203 grenade launcher to be mounted directly to the barrel.

Next up, we reach the receiver, made from alloy in a standard M4/AR-15 layout. The fire selector switch is on the left side, just above the pistol grip, offering 3 modes of fire: Safe, semi-automatic and fully automatic, with a 90-degree throw between each. This makes the selector easy and fast to operate without being too easy to bump out of position accidentally, a feature for which the AR-15 platform is universally appreciated.

The magazine release is an ambidextrous example, located on either side of the magazine well. Whether you're left or right-handed, the mag release is well within reach when the CM.091 is held in a firing position, making for easy reloads, as long as you've done some practice. Each mag release button is also textured, ensuring it can be operated easily in all weather conditions.

At the top rear of the receiver, we can find the charging handle, which is constructed from alloy with a steel locking latch. Pulling the charging handle will open the dust cover and retract the mock bolt, revealing the rotary HOP-up inside. The unit is made from alloy, and the adjuster dial is polymer, offering a stronger build than other rotary units.

Turning the dial allows you to tune the CM.091 for different ammo weights, looking for the flattest possible trajectory. When you've finished adjusting, hit the "ping pong paddle" bolt catch on the left side of the receiver to release the mock bolt with a satisfying "clank".

On the bottom of the receiver, we come to the pistol grip, styled after the real steel Tango Down grip often used on real steel HK416 rifles. This grip design is known for its ergonomic shape and comfort for a wide variety of hand sizes, thanks to its bevelled transition between the grip itself and the trigger guard.

The trigger matches the real steel "milspec" trigger, a curved design right in-line with modern and retro military M4 rifles. The trigger guard is an enlarged design, giving you plenty of space for full finger gloves, an essential in CQB, unless you enjoy knuckle shots!

Arriving at the rear, we can find the steel ambidextrous sling plate, which mounts to the rear of the receiver between it and the buffer tube. This plate provides two sling mounting points, one on either side, which are perfectly suited to slings with a "hook" style attachment method, especially single-point slings.

To the rear of the sling plate, we can find a standard M4/AR15 6-position buffer tube, which is constructed from alloy and comes with a VLTR-style "club foot" battery stock installed. The club foot stock features a low-profile adjustment lever, skeletonised design for weight reduction, and QD sling sockets on either side, together with a sling slot for a more traditional sling.

At the rear of the stock we can find a grippy rubber butt pad, complete with chevron checkering to ensure it doesn't slip when shouldered. To install the battery in the CM.091, simply squeeze the two tabs at the toe of the stock together, then, once the tabs are removed from the body of the stock, pull the butt plate down to remove it. With the butt plate removed, you should be able to pull out the battery cap, revealing the battery compartment. We recommend a 7.4V 1450mAh LiPo battery for an easy fit and superb performance.

Features

• Full metal construction
• 6.03mm Tightbore inner barrel - Superb accuracy potential
• CYMA Standard Gen.2 - CYMA MOSFET & Reinforced gearbox shell
• 14mm CCW male-threaded outer barrel - Tracer/suppressor ready
• Aggressive muzzle brake pre-installed - Steel construction, mean front end looks
• URX-style 20mm Picatinny quad-railed handguard - 20mm accessory rails at all points
• Flip-up iron sights pre-installed - Spring-loaded sights, press the button on the left to deploy/stow
• 20mm Picatinny railed receiver - Ready for a red dot sight or scope
• Ambidextrous magazine release - On the magwell, easy reloads for left or right-handed shooters
• Enlarged trigger guard - Plenty of space inside for full finger gloves
• Ambidextrous sling plate - Steel construction, ideal for single-point slings
• Ergonomic pistol grip - Based on the popular "Tango Down" grip, very comfortable for most hands
• 6-Position M4/AR-15 buffer tube - Adjust the stock to suit your body type and loadout
• VLTR-style modular stock pre-installed - Ample battery space, QD sling socket, grippy rubber butt plate
• Rear wired: Deans connector - Recommended Battery: 7.4V 1450mAh LiPo
• CYMA Standard Gen.2 Version 2 gearbox:
  • 18:1 Ratio steel gears
  • 8mm Ball-bearing bushings
  • Polymer piston with metal full tooth rack
  • CNC Aluminium piston head
  • CNC Aluminium cylinder head
  • High-torque Neodymium magnet motor
  • Quick-change spring guide
  • CYMA V2 In-line MOSFET
• Compatible with M4/AR-15 AEG Magazines - Plenty of spare mag options

Package Includes

• CYMA Gen.2 CM.091 M4/AR-15 URX AEG
  • 2 x 150rnd Mid-cap magazine
