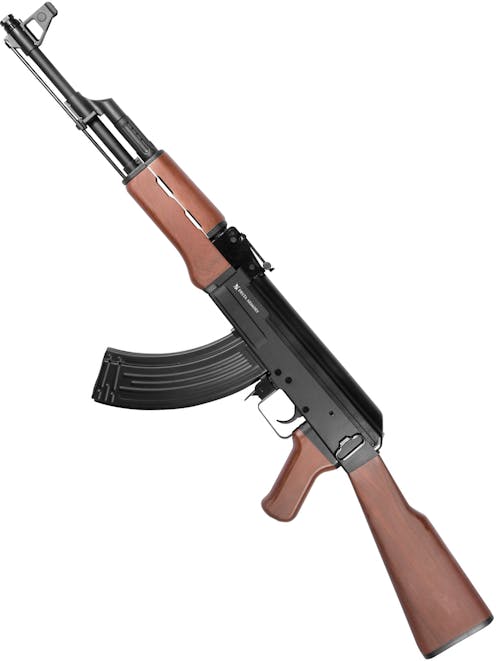

Delta Armory DA-C12 CHARLIE™ AK-47 AEG; Classic

Delta Armory
Code:
£139.99
  • 6.03mm Tightbore inner barrel
  • Alloy/steel/polymer build
  • Faux wood furniture - The classic AK!

If you're seeking a superb starter AEG in AK flavour, the Delta Armory DA-C12 CHARLIE™ AK-47 AEG; Classic should be in your sights! Part of Delta Armory's CHARLIE series, this AK-47 Type 3 replica is made from a mix of high density polymer and alloy with steel trim parts, keeping it lightweight and agile, ideal for younger skirmishers or those who like to move fast!

Inside, we're equipped with a 6.03mm tightbore inner barrel, offering superb accuracy with high-quality ammo paired with an alloy slider HOP-up unit to tune for different ammo weights. The gearbox is a Tokyo Marui-spec version 3 with an alloy shell and steel gears, with a quick-change spring system for easy power tuning. All internals are fully upgradable, meaning if you want more down the line, the DA-C12 is ready for it!

Marrying the classic AK-47 aesthetic with convincing faux-wood furniture and all the details needed for a proper og Type 3 AK replica, the DA-C12 is a fantastic, affordable way to fill that AK-shaped hole in your collection and shoots well as a bonus! If you're an AK kinda guy looking for a budget primary or loaner AEG, you can't ask for much better than the Delta Armory DA-C12 CHARLIE™ AK-47 AEG; Classic!

Full description

Description

If you're into the AK aesthetic and seek an affordable replica, the Delta Armory DA-C12 CHARLIE™ AK-47 AEG; Classic is one to watch. Made primarily from high density polymer with an alloy outer barrel and steel trim parts, the DA-C12 is rocking the original AK look with its detailed faux wood furniture and "Type 3 Milled" receiver, complete with mock rivets and all the details a collector will love!

Inside, the DA-C12 is equipped with an alloy version 3 gearbox with 18:1 ratio steel gears and a quick-change spring system for easy power tuning. The inner barrel is a 6.03mm tightbore paired with an alloy slider HOP-up unit, offering excellent accuracy with high-quality ammo and the ability to tune the trajectory for different ammo weights and extend max range. All internal parts are Tokyo Marui-spec, meaning aftermarket upgrades are a go for this AK-47, ideal for the techy types and performance seekers!

Whether you need a low-cost AK-47 replica for your OPFOR loadout or you love the iconic AK-47 aesthetic and need one for the collection, you'll be in good hands with the Delta Armory DA-C12 CHARLIE™ AK-47 AEG; Classic! A fantastic AK replica without the excessive weight of full metal models, this AK-47 AEG will keep your agility high with authentic looks as a bonus!

Starting at the front, we can find a polymer thread protector concealing 14mm CCW male threading at the tip of the alloy outer barrel. The thread protector is a dead-on match for the protector used on the real steel AK-47 Type 3 but if you're going for a stealthy loadout or want to really light the enemy up, it can be swapped out for any 14mm CCW compatible tracer unit or suppressor. To remove the thread protector, simply hold the detent pin on the front of the front iron sight in, after which it can be unscrewed.

Next up, we can find the front iron sight which is the correct design for an AK-47 Type 3, something collectors will definitely appreciate! The front sight is mounted to the tip of the outer barrel and is a perfect match for the real AK-47; a fine front sight post protected on each side with protective wings. Just below, we are treated to a mock cleaning rod made from steel, an iconic part of the classic AK-47 silhouette.

Moving rearwards, we come to the dummy gas block and gas tube, which are realistically styled after the original AK-47 production variant, the Type 3. The gas tube and block are made from polymer and include mock vents and an alloy sling loop mounted to the barrel on the left side which is designed for "hook" type slings and can be paired with the sling point on the receiver to mount a two-point sling.

Following the gas tube, we come to the handguards which are the classic AK-47 design with two vent ports on each side with a slight bulge towards the rear to aid recoil control. These handguards are made from high density polymer with an extremely convincing faux wood finish with a deep, varied and realistic wood grain design. While faux wood might not have the authentic feel of the real stuff, it is far easier to maintain, lighter and less prone to visible damage. If you plan to upgrade to real wood in the future, you'll be happy to learn that the DA-C12 is compatible with Tokyo Marui spec AK-47 wood kits but may need modification to accept LCT or VFC style wood kits.

Between the handguards and receiver, we can find the trunnion block, providing the mounting point for the DA-C12's adjustable tangent rear sight. The rear sight can be adjusted for different ranges using the slider attached to the sight itself, without using any tools. Simply hold the button on the right side of the rear sight to slide it back and forth and adjust for different engagement ranges. This sight is an open sight, allowing you to track fast-moving, close-range targets more effectively than an enclosed aperture sight. On the right side of the trunnion block, we also have the mock disassembly lever which doesn't function but is included to provide the details an authentic AK-47 replica needs to be complete!

The receiver of the DA-C12 is constructed from high density polymer, with a textured matt black finish, boasting the same superb quality polymer used on Delta Armory's other CHARLIE™ line replicas. The left side of the receiver features realistic mock pins and rivets, along with a weight-reducing groove present on either side. This groove is one of the tell-tale signs that this is an early-style AK variant, replicating the AK-47 Type 3 Milled receiver faithfully.

At the rear of the left side of the receiver, we can find our second sling point; constructed from steel and attached to the inside of the polymer receiver. This sling point allows for some flexibility, ensuring that with a two-point sling installed, you can carry the rifle comfortably without the sling snagging. Being a steel sling point, it should also be up to the task of supporting the DA-C12 with a single-point sling, but we think that is far too modern for this classic, retro platform!

On the right side of the receiver, we can find the mock bolt carrier, which is made from alloy and can be pulled back and released with a satisfying "clank". Though this is not necessary to operate the DA-C12, it is a nice touch of added realism and simply feels badass! With the charging handle held back, we can find the slider adjuster for the DA-C12's adjustable HOP-up unit.

This HOP-up unit is made from alloy and allows backspin to be applied to your BBs, stabilising them whilst extending range and improving wind resistance. The HOP-up unit can be adjusted and set for a wide range of BB weights, depending on your individual requirements and whether you play outdoors or in tight CQB sites. We recommend choosing 0.25g BBs, which are perfect for both indoor and outdoor skirmishes.

Moving back towards the controls, we can find one of the most "AK-47-y" of this AK-47 replica's features; its fire selector lever. The fire selector is made from steel and configured in classic AK style, doubling as a dust cover to keep debris out of the action of the real thing. The first position is "Safe" mode, the middle position is fully automatic, and the lowermost position indicates the semi-automatic mode.

At the bottom of the receiver, we can find the magazine well, magazine catch, trigger guard, and pistol grip. The pistol grip is rocking the same fantastic faux-wood finish as the stock and handguards and is made to match the original AK-47 pistol grip perfectly. The trigger guard/mag release assembly is made from steel and enlarged to allow for thick gloves to be used; an essential feature considering the AK-47's country of birth!

The magazine release can be found in front of the trigger guard; a paddle-type release which is accessible from either side, making it useful for both left and right-handed shooters. The magazine insertion method for the AK-47 is "rock and lock" style, requiring the front of the magazine to be indexed inside the front of the magwell first, after which you can rock the magazine rearwards and engage the mag catch, locking the magazine in place. If you're struggling, check out our video: How to Load an Airsoft AK.

The battery compartment of the DA-C12 is located inside the receiver, beneath the steel receiver top cover. To access it, simply press the serrated button on the rear of the receiver and the top cover can be lifted off, revealing a mini-Tamiya battery connector. We recommend a 9.6V 1600mAh NiMh battery or a 7.4V 1200mAh LiPo battery in AK stick configuration for an easy fit and superb performance. With your battery installed, simply reposition the top cover to index beneath the trunnion block at the front and pop it back down, pulling the charging handle to lock it in place if needed.

At the rear, we are equipped with the original AK-47 pattern fixed stock, matching the angle and length of pull of the real steel AK-47 Type 3 perfectly. Made from high density polymer with the same gorgeous faux wood finish as the handguards and pistol grip, and the butt plate is made from steel, just like the real thing. The butt plate is basic and unserrated, but if you have worries about wet weather traction you can add a Rubber Butt Plate.

Internally, the DA-C12 is respectably equipped, based around an alloy version 3 gearbox with 18:1 steel gears. The inner barrel is a 6.03mm tightbore example, offering improved accuracy potential with high-quality ammo. The HOP-up unit is also made from alloy, a significant step up in strength compared to standard polymer units. As mentioned, all internal parts are Tokyo Marui spec, meaning aftermarket upgrades and replacement parts are easy to source, with loads of variety available.

Whether you're new to the sport and want to start with a classic AK or you need a budget AK in your life to complete the collection, the Delta Armory DA-C12 CHARLIE™ AK-47 AEG; Classic is a solid choice. Light enough that it won't slow you down with plenty of performance perks and unlimited upgrade potential, this AK-47 makes a fantastic beginner platform, loaner gun or primary for aggressive fast-movers!

Features

  • 6.03mm Tightbore inner barrel - Superb accuracy potential
  • Alloy/steel/polymer build - Nice and light, metal where you need it
  • Detailed faux wood furniture - Convincingly provides the classic AK aesthetic
  • 14mm CCW Male threaded outer barrel - Tracer/suppressor ready
  • Adjustable tangent iron sights - Slide the drum to adjust, great for engaging moving targets
  • High density polymer receiver - A great match for the AK-47 Type 3, milled style with mock rivets
  • Steel receiver top cover - Smooth like the original AK, steel build for authenticity
  • 3-position fire selector - SAFE - FULL AUTO - SEMI AUTO config, just like a real AK rifle
  • Alloy slider adjustable HOP-up unit - Pull back the charging handle to access, tune for your choice of BB weight
  • Steel trigger guard/mag release assembly - Nice and strong, not to mention authentic!
  • Ambidextrous magazine release - Centrally positioned, ideal for left or right-handed shooters
  • Faux wood pistol grip - Matches the real AK-47 perfectly, almost looks like real wood!
  • Fixed stock with steel butt plate - Detailed faux-wood finish to complete the classic AK-47 look!
  • Top wired: Mini-Tamiya battery connector - Recommended battery: 9.6V 1600mAh NiMh | 7.4V 1200mAh LiPo
  • Compatible with AK-47/74 AEG Magazines - Spare mags are cheap and plentiful!
  • Need rails? Add the CYMA 20mm Picatinny Railed Handguard

Package Includes

  • Delta Armory DA-C12 CHARLIE™ AK-47 AEG; Classic
  • 130rnd Medium capacity magazine

Specification

General

Weapon Construction External
Weapon Type
Assault Rifle
Over 18 Only Icon
Over 18
Yes
Icon UKARA - United Kingdom Airsoft Retailer Association
Defence / UKARA Required
Yes, No,
FPS Icon
FPS, using 0.20g BB
Approx.320fps ± 10%, using 0.20g BB
Site Legal Icon
Site Legal, using 0.20g BB
Yes
Screwdriver Icon
Pre-Built
Yes
Package
Included Items
Magazine
Skill Level Icon
User Skill Level
Beginner Player
Patrol Base - Warning Icon
Warnings
Li-Po
Li-Po - Never Leave Charging Unattended
Li-Po - Only Use Approved Chargers
Li-Po - Charge in a Fire Safe Area

Weight and Dimension

Weight KG Icon
Weight (KG)
Approx. 2.1kg
Weapon Length Collapsed
Length (Collapsed)
88cm
Weapon Length Extended
Length (Extended)
88cm

Construction

Colour Wheel Greyscale
Primary Colour
Black
Colour Wheel Greyscale
Secondary Colour
Faux Wood
Faux Wood
Construction Icon
Construction
Alloy outer barrel, trunnion block, mock bolt & trim parts. Steel mock cleaning rod, trigger guard, top cover & sling point. High density polymer front sight, gas block/tube, receiver, stock & grip.
Weapon Construction External
External Construction
Polymer
Alloy
Steel
Gearbox Icon
Internal Construction
Polymer
Alloy
Aluminium
Steel

Weapon Specific

Power Source Icon
Powered By
Electric
Blowback Icon
Blowback
None
Weapon Platform
Weapon Platform
Assault Rifle, AK, AK47,
Magazine Style Icon
Magazine Style
Long Gun Magazine, Assault Rifle, AK Platform,
Fire Select Icon
Fire Selector
PatrolBase | Fire Select Safe
Safe
Patrol Base | Fire Select - Semi Automatic
Semi Automatic
Patrol Base | Full Automatic
Full Automatic
Weapon Safety Features Icon
Safety Features
Trigger Lock
Shooter Configuration Icon
Shooter Configuration
Right Handed
Weapon Configuration Icon
Weapon Configuration
Standard
Weapon Scale Icon
Weapon Scale
1:1
Suggested BB Weight
Suggested BB Weight
0.25g

Hop-Up

Hop-Up Unit Icon
Hop-Up Unit
Yes
Hop-Up Unit Adjuster Icon
Hop-Up Adjuster
Slider
Hop-Up Unit Location Icon
Hop-Up Location
Behind the mock bolt, accessible with the charging handle pulled and held back.

Furniture

Weapon Furniture Icon
Furniture
  • Faux Wood Furniture
  • Ambidextrous Magazine Release
  • Adjustable open iron sights
  • Threaded Outer Barrel
  • sling points front and rear
  • Mock cleaning rod
  • Thread Protector
  • Steel Butt Plate
Rail System Icon
Rail System
None
Icon Stock Positions
Stock Setting
Fixed
Sight Type Icon
Sight Type
Iron Sights, Open Iron Sight, Tangent Open Iron Sight,
Sling Plate Icon
Sling Options
Loop, Receiver , Barrel,

Barrel

Outer Barrel Length (in)
16.3''
Icon Thread Type
Outer Barrel Thread Type
Male
Icon Thread Direction
Outer Barrel Thread Direction
CCW (Counter Clockwise)
Outer Barrel Thread Size
Outer Barrel Thread Size
14mm
Inner Barrel Diameter
Inner Barrel Diameter
6.03mm
Inner Barrel Length
Inner Barrel Length
460mm

Magazine Specific

Magazine Type
Magazine Type
AEG, Medium Capacity,
Magazine BB Capacity
Magazine BB Capacity
Approx. 130 Rounds
Magazine BB Fill Method
Magazine BB Fill Method
Speed Loader
Magazine BB Fill Location
Magazine BB Fill Location
Top

Electric Gun Specific Information

Gearbox
Gearbox Icon
Gearbox Version
V3 Gearbox
Wiring Icon
Gearbox Wiring
Top Wired
Spring Change Icon
Gearbox Quick Change Spring
Yes
Motor
Airsoft Motor Icon
Motor Type
Standard
Battery Specific
Battery Connector
Battery Connector
Patrol Base | Icon | Mini Tamiya
Mini Tamiya
Compatible Battery
Compatible Battery Type
Compatible Battery Type
Li-Po
Compatible Battery Configuration
Compatible Battery Configuration
AK Stick (Slim)
Compatible Battery Voltage
Compatible Battery Voltage
7.4v

Product Testing Data

Notepad Icon
Test Description
320 FPS +/- 10%
Notepad Icon
Tested Using
0.20g Delta Armory Diamond BBs
Notepad Icon
Test Date
06/05/2025

Size guide

Joule Charts

Special Instructions

These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

Tap the tabs below to open the relevant chart for your replica.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
325 0.98 1.23 1.37 1.47 1.57 1.77 1.96 2.11 2.21 2.45
328 1.00 1.25 1.40 1.50 1.60 1.80 2.00 2.15 2.25 2.50
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
335 1.04 1.30 1.46 1.56 1.67 1.88 2.09 2.24 2.35 2.61
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
345 1.11 1.38 1.55 1.66 1.77 1.99 2.21 2.38 2.49 2.76
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
355 1.17 1.46 1.64 1.76 1.87 2.11 2.34 2.52 2.63 2.93
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90
420 1.64 2.05 2.29 2.46 2.62 2.95 3.28 3.52 3.69 4.10
430 1.72 2.15 2.40 2.58 2.75 3.09 3.44 3.69 3.86 4.29
440 1.80 2.25 2.52 2.70 2.88 3.24 3.60 3.87 4.05 4.50
450 1.88 2.35 2.63 2.82 3.01 3.39 3.76 4.04 4.23 4.70
460 1.97 2.46 2.75 2.95 3.15 3.54 3.93 4.23 4.42 4.91
470 2.05 2.57 2.87 3.08 3.28 3.69 4.10 4.41 4.62 5.13
480 2.14 2.68 3.00 3.21 3.42 3.85 4.28 4.60 4.82 5.35
490 2.23 2.79 3.12 3.35 3.57 4.02 4.46 4.80 5.02 5.58
500 2.32 2.90 3.25 3.48 3.72 4.18 4.65 4.99 5.23 5.81
510 2.42 3.02 3.38 3.62 3.87 4.35 4.83 5.20 5.44 6.04
