Pre Two-Tone

RAVEN EU18 GBB Pistol w/BDS; Pre Two-Tone

RAVEN Brand Logo
Code: RGP-00-01-BDS
£129.99
  • Integrated Dot Sight
  • Two Tone Ready
  • Fully Automatic

A Gas Blowback Pistol from NUPROL's RAVEN series which features a Pre-Two-Toned slide, integrated Red Dot Sight, Low-Light Ironsights, a Tactical Rail Slot and a Full-Auto 'Fun Switch' to scare the daylights out of your enemies!

If you love the comfort, reliability and compatibility of the G-Series pistols, and want something that is going to stand out from the crowd, then the EU18 is a sure choice. This pistol is perfect for all weather conditions and is one of the most cost effective sidearms you can run in Airsoft.

Full description

Help
Size guide

Frequently purchased with this pistol...

Description

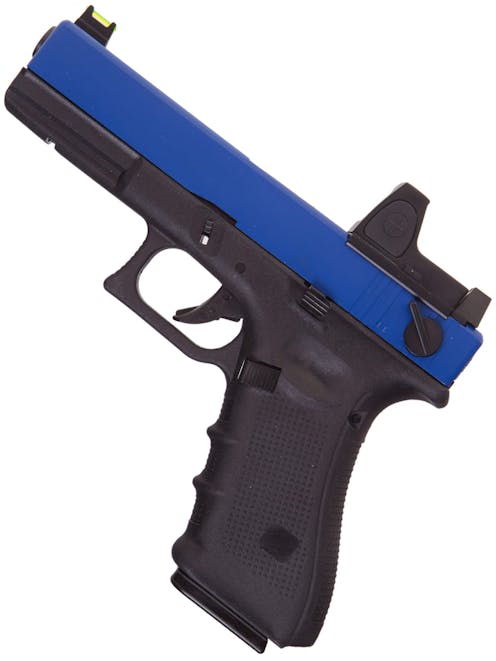

This Gas Blowback Airsoft Pistol is an EU18 replica which comes out of the box with a Red Dot Sight installed for rapid target acquisition. The RIF is constructed with a tough Alloy slide and a high-density Polymer frame which is not only robust, but offers fantastic grip even when wearing gloves. The frame can be made wider for those with bigger hands by installing the included back-straps to the back of the grip. It also features a "Fun Switch" to fire Fully Automatic at a really high rate of fire, which will suppress the enemy and give them another reason to keep their heads down!

The best part of this pistol? It is Two Tone painted at the factory and is ready to ship today! As the pistol is two-toned by the manufacturer you do not have to wait the time for a two tone service to be completed, and can order this pistol on a next day service ready for the weekends skirmish!

The main feature of this series of pistol is the included Red Dot Sight which comes pre-installed at the rear of the slide, to offer rapid target acquisition, easy sight picture and most importantly: it looks absolutely amazing! The light-enhancing Ironsights have been redesigned so that they can be seen through the Dot Sight should you ever run out of battery mid-skirmish, so that you can keep on fighting. The Dot Sight is easily controlled from two push buttons either side, and comes with a handy tool to make adjustments to Windage and Elevation (Up/Down, Left/Right), so that you can have your pistol shooting spot on the mark.

Underneath the frame you will find a 20mm Tactical Rail which is ready for your Torches, Lasers or anything else you can throw at it. The end of the barrel features an 11mm CCW female thread which will let you install Thread Adaptors and Suppressors, should it not already be stylish enough for you out of the box!

The pistol features an adjustable hop-up unit, designed to increase the range and accuracy of your pistol. The hop-up works by touching the fired BBs with a small rubber contact patch which causes the BBs to spin and displace air around them as they travel, this creates a more stable and accurate flight pattern. The hop is fully adjustable to suit a wide range of BB weights and types.

The pistol is powered by Green Gas and throws out 0.20g BBs at 295FPS (average) with a strong recoil, and can be modified to fit CO2 magazines for cold weather shooting. The CO2 magazines are really handy for when Winter rolls in and Gas Pistols start to struggle with the cold weather; you can be sure that your pistol still fights through it where others will fail. On the underside of the frame is a trigger lock safety which is activated by pulling the black tab to the rear, which will then lock the trigger and stop the pistol from firing.

Features

  • Part of NUPROL's RAVEN series of pistols
  • Two Tone Ready, with no waiting period
  • Gas blowback pistol with strong recoil
  • Fully Automatic fire mode, as well as semi-automatic
  • Integrated Red Dot Sight for faster and tighter aiming
  • Low-light front ironsight as a back up in low light conditions
  • Tactical front rail slot for attaching torches and lasers
  • Adjustable hop-up unit for range and accuracy
  • Replaceable back straps for adjusting to different hand sizes
  • Durable and realistic alloy Top Slide
  • High density Polymer frame for added realism
  • Textured/stippled grip for hold even when wearing gloves
  • RAVEN EU Series 17/18/33 25rnd Gas Magazine included
  • GEN 4 style large Mag Release
  • Good all-weather performance
  • Rubber cover for sight during transport
  • Two stage safety trigger
  • Trigger lock safety for added safety
  • Compatible with a wide range of aftermarket parts and accessories
  • Threaded outer barrel for attaching suppressors and tracer units
  • Easy to strip down and maintain for cleaning

Package Includes

Special Instructions

The RAVEN EU Series magazine release can sometimes require bedding in when new. If you find the magazine of your EU series pistol falls out or does not lock into place, we suggest the following steps:

  • Tap the magazine on the baseplate firmly after insertion. This ensures the magazine catch engages with the cutout on the magazine to retain it properly. You can check whether this has worked or not by looking at the magazine release button. If the magazine is fully locked, the button should protrude on the left side and be flush with the grip on the right side.
  • Bed the magazine catch in. This can be achieved by locking the slide back and inserting and removing the magazine repeatedly several times.

Please note that the sight battery is not included, the specific battery you will need is a CR2032 3V 'Button' Battery.

Specification

General

Weapon Construction External
 Weapon Type
Pistol
Over 18 Only Icon
 Over 18
Yes
Icon UKARA - United Kingdom Airsoft Retailer Association
 Defence / UKARA Required
No
FPS Icon
 FPS (Feet Per Second), using 0.20g BB
Approx. 295fps ± 10%, using 0.20g BB
Site Legal Icon
 Site Legal, using 0.20g BB
Yes
Package
 Included Items
  • Magazine
  • Back Straps
  • PVC Patch
Skill Level Icon
 User Skill Level
Starter, Regular Player,
Patrol Base - Warning Icon
 Warnings
Lubrication is required

Weight and Dimension

Weight KG Icon
 Weight (KG)
Approx. 0.787kg
Weapon Length Collapsed
 Length (Collapsed)
19cm
Weapon Length Extended
 Length (Extended)
19cm

Construction

Colour Wheel Greyscale
 Primary Colour
Blue, Pink ,
Colour Wheel Greyscale
 Secondary Colour
Black, Pink, Silver,
Two Tone Icon
 Pre Two-Toned
Yes
Construction Icon
 Construction
Alloy Slide & Sight, Polymer Frame.
Weapon Construction External
 External Construction
Polymer
Alloy
Gearbox Icon
 Internal Construction
Polymer
Alloy

Weapon Specific

Power Source Icon
 Powered By
Green Gas
Blowback Icon
 Blowback
Gas Blowback
Weapon Platform
EU-Series
Magazine Style Icon
 Magazine Style
EU-Series
Fire Select Icon
 Fire Selector
Patrol Base | Fire Select - Semi Automatic
 Semi Automatic
Weapon Safety Features Icon
 Safety Features
Trigger Lock
Shooter Configuration Icon
 Shooter Configuration
Right Handed
Weapon Configuration Icon
 Weapon Configuration
Standard
Weapon Scale Icon
 Weapon Scale
1:1
Suggested BB Weight
0.25g

Hop-Up

Hop-Up Unit Icon
 Hop-Up Unit
Yes
Hop-Up Unit Adjuster Icon
 Hop-Up Adjuster
Gear
Hop-Up Unit Location Icon
 Hop-Up Location
Remove slide to access

Furniture

Weapon Furniture Icon
 Furniture
  • Backstraps
  • 20mm Pistol Rail
  • Threaded Outer Barrel
  • Included Red Dot Sight
Rail System Icon
 Rail System
20mm Pistol Mount
Sight Type Icon
 Sight Type
Light Enhancing Open Iron Sights, Red Dot Sight,

Barrel

Icon Thread Type
 Outer Barrel Thread Type
Female
Icon Thread Direction
 Outer Barrel Thread Direction
CW (Clockwise)
Outer Barrel Thread Size
12mm
Inner Barrel Diameter
6.03mm
Inner Barrel Length
97mm

Magazine Specific

Magazine Type
Gas
Magazine BB Capacity
Approx. 24 Rounds
Magazine BB Fill Method
Fill Window
Magazine BB Fill Location
Top, Bottom,
Magazine Gas Fill Location
Bottom
Magazine Gas Type
Green Gas

Gas Gun Specific

Gas Can Icon
 Gas Compatability
Green Gas, CO2,
Gas Can Icon
 Gas Recommendation
Green Gas

Pistol Specific

Construction Icon
 Slide Material
Alloy
Icon Pistol Slide
 Pistol Slide Type
Standard

Product Testing Data

Notepad Icon
 Test Description
295FPS
Notepad Icon
 Tested Using
ASG Blaster 0.20g BBs & ASG Ultrair
Notepad Icon
 Test Date
25/06/19

Detailed Power Tests

FPS
FPS, using 0.20g BB
Approx. 295fps, using 0.20g BB

Size guide

Joule Charts

Special Instructions

These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

Tap the tabs below to open the relevant chart for your replica.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
325 0.98 1.23 1.37 1.47 1.57 1.77 1.96 2.11 2.21 2.45
328 1.00 1.25 1.40 1.50 1.60 1.80 2.00 2.15 2.25 2.50
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
335 1.04 1.30 1.46 1.56 1.67 1.88 2.09 2.24 2.35 2.61
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
345 1.11 1.38 1.55 1.66 1.77 1.99 2.21 2.38 2.49 2.76
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
355 1.17 1.46 1.64 1.76 1.87 2.11 2.34 2.52 2.63 2.93
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90
420 1.64 2.05 2.29 2.46 2.62 2.95 3.28 3.52 3.69 4.10
430 1.72 2.15 2.40 2.58 2.75 3.09 3.44 3.69 3.86 4.29
440 1.80 2.25 2.52 2.70 2.88 3.24 3.60 3.87 4.05 4.50
450 1.88 2.35 2.63 2.82 3.01 3.39 3.76 4.04 4.23 4.70
460 1.97 2.46 2.75 2.95 3.15 3.54 3.93 4.23 4.42 4.91
470 2.05 2.57 2.87 3.08 3.28 3.69 4.10 4.41 4.62 5.13
480 2.14 2.68 3.00 3.21 3.42 3.85 4.28 4.60 4.82 5.35
490 2.23 2.79 3.12 3.35 3.57 4.02 4.46 4.80 5.02 5.58
500 2.32 2.90 3.25 3.48 3.72 4.18 4.65 4.99 5.23 5.81
510 2.42 3.02 3.38 3.62 3.87 4.35 4.83 5.20 5.44 6.04
