Umarex H&K G3 GBBR

Umarex
Code:
£529.99
Was £549.99
Save £20.00
  • Authentic War Replica
  • Gas Blowback Recoil System
  • Fully Licensed by Heckler & Koch

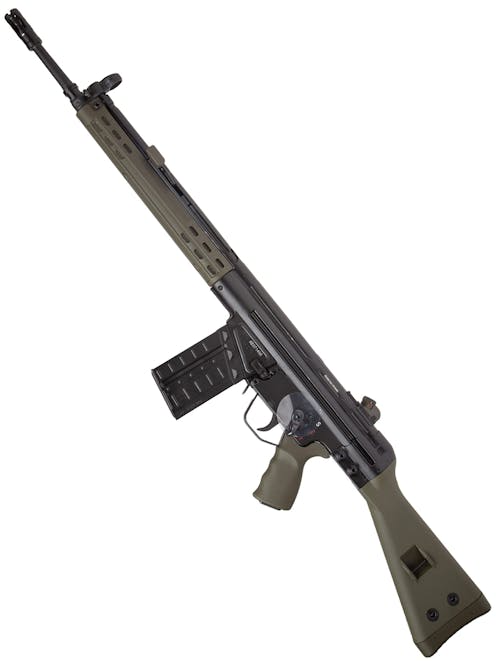

The Heckler & Koch G3.

Possibly one of the most authentic & iconic firearms in the world, the H&K G3 has lived through some of the most famous wars of all time and is certainly a platform to be appreciated. Now the time has come for you to get your hands on one of the most awesome Gas Blowback Airsoft Replica's and take the skirmish by storm, H&K Style!

Full description

Description

UMAREX Presents, the Heckler & Koch Gas Blowback G3.

As to be expected the UMAREX H&K G3A3 Gas Blowback Replica holds true to it's real steel counter part in every way you could imagine, from the traditional HK G3 receiver to the classic H&K charging handle, ( which we know you just wanna slap ) The G3 truly is an amazing Airsoft replica gun that deserves the upmost appreciation.

Towards the front end of the gun you've got the 7.62x51 style muzzle brake / flash hider, which is secured on via a proprietary QD system, following on you've got the classic H&K ring and pin front iron sight which when used with the rear rotary iron sight provides a clear and obstruction free sight picture for a fast but simple target acquisition. The Olive Drab / Khaki handguard is constructed from a reinforced polymer which is moulded perfectly to the shape of the receiver which allows for a full hand grip along the front end which in turn provides excellent positioning manipulation and handling. Along the handguard you'll find several ports which on the real 7.62 variant provide assistance in preventing overheating.

Just above the handguard you'll find possibly what H&K are most famous for in the "Tacticool Market"  - That being the H&K Lock and release style charging handle. Upon loading the gun, you would position the stock of the gun under your right arm to support the weight and then with your left hand pull back the charging handle and position it upward into the square pocket, then replace your magazine with a fully loaded one and either pull the charging handle down to return the gun to battery, or do what you really want to do and slap that charging handle like a real operator, with care of course.

Please note, as this is a Gas Blowback Replica, being heavy handed and repeatedly slapping the bolt release may increase wear, as such we cannot cover any problems or damages caused by this.

The hop up on the gun can be found underneath the handguard at the end of the receiver, you can access this by removing the handguard via the front end body pin and sliding it off, you will then see a black dial / cog which surrounds the outer barrel, you can turn this left or right to increase or decrease your applied hop up.

The rest of the gun features your classic H&K G3 / MP5 upper receiver, pistol grip with added finger grooves for comfort and drop style H&K stock which allows the end user to acquire their target with ease by bringing the gun up to eye level. The stock also features a loop style sling mount and a rubber shoulder pad for an effective grip on all surfaces and tactical wear.

The gun also carries another classic G3 feature, which is the Heckler & Koch Bolt Hold Open System: When the magazine is empty and the last round has been fired, the bolt will lock back internally to indicate that you can no longer fire, to which you would replace the magazine and release the bolt. Do note due to this the gun cannot be dry fired, unless a switch on the top of the magazine is pushed over to enable dry fire mode which prevents the follower from contacting the bolt carrier group. The Green Gas magazine that comes with the gun holds a total of 20 rounds, just like it's real steel counterpart, otherwise known as a Real-Cap and weighs just as much as the real thing would when loaded with 20 rounds of 7.62x51.

Lets not forget the awesome part about this replica, it's Gas Blowback. The recoil bolt system in the G3 is manufactured to perfection and provides an immersive, realistic and shoulder budging kick that provides a shooting satisfaction like no other GBB.

The H&K G3 is a German made Assault Rifle brought to service all the way back in 1960 and it still used to this day, a true hallmark of reliability. The real steel counterpart is chambered in 7.62x51 NATO otherwise known as .308, which required the capability to reach up over 3000 meters! as such the G3A3 was given a whopping 17.7" free floating barrel with a vented polymer handguard to regulate the temperature and prevent overheating.

The UMAREX Heckler & Koch G3 (A3) is an amazing replica that represents the traditional G3A3 in it's truest form and any authentic firearms fanatic will be drooling over this epic Gas Blowback rifle.

Features

  • Gas Blowback
  • Immersive Recoil
  • 1:1 Scale Replica
  • 20rnd Magazine
  • H&K Bolt release
  • Bolt Hold Open Feature
  • Fully Licensed By H&K
  • Authentic Replica

Package Includes

  • UMAREX H&K G3 GBBR
  • 20rnd Green Gas Magazine

Specification

General

Weapon Construction External
Weapon Type
Assault Rifle
Over 18 Only Icon
Over 18
Yes
Icon UKARA - United Kingdom Airsoft Retailer Association
Defence / UKARA Required
Yes, No,
FPS Icon
FPS (Feet Per Second), using 0.20g BB
Approx. 300fps ± 10%, using 0.20g BB
Site Legal Icon
Site Legal, using 0.20g BB
Yes
Package
Included Items
  • Magazine
  • Instruction Manual
Skill Level Icon
User Skill Level
Technical Player

Weight and Dimension

Weight KG Icon
Weight (KG)
Approx. 4kg

Construction

Colour Wheel Greyscale
Primary Colour
Black
Colour Wheel Greyscale
Secondary Colour
Olive Green
Two Tone Icon
Pre Two-Toned
No
Construction Icon
Construction
Alloy & Polymer
Weapon Construction External
External Construction
Polymer
Alloy

Weapon Specific

Power Source Icon
Powered By
Green Gas
Blowback Icon
Blowback
Gas Blowback
Weapon Platform
G3 Platform
Magazine Style Icon
Magazine Style
G3 Series
Fire Select Icon
Fire Selector
PatrolBase | Fire Select Safe
Safe
Patrol Base | Fire Select - Semi Automatic
Semi Automatic
Patrol Base | Full Automatic
Full Automatic
Shooter Configuration Icon
Shooter Configuration
Right Handed
Weapon Configuration Icon
Weapon Configuration
Standard
Weapon Scale Icon
Weapon Scale
1:1
Suggested BB Weight
0.25g

Hop-Up

Hop-Up Unit Icon
Hop-Up Unit
Yes

Furniture

Weapon Furniture Icon
Furniture
Flash Hider
Rail System Icon
Rail System
None
Sight Type Icon
Sight Type
Iron Sights
Sling Plate Icon
Sling Options
Loop

Barrel

Outer Barrel Length (in)
17''
Icon Thread Direction
Outer Barrel Thread Direction
None
Inner Barrel Diameter
6.03mm
Inner Barrel Length
455mm

Magazine Specific

Magazine Type
Gas
Magazine BB Capacity
Approx. 25 Rounds
Magazine BB Fill Method
Speed Loader
Magazine BB Fill Location
Top
Magazine Gas Fill Location
Bottom
Magazine Gas Type
Green Gas

Gas Gun Specific

Gas Can Icon
Gas Compatability
Green Gas
Gas Can Icon
Gas Recommendation
Green Gas

Product Testing Data

Notepad Icon
Test Description
300
Notepad Icon
Tested Using
0.20

Detailed Power Tests

FPS
FPS, using 0.20g BB
Approx. 300fps, using 0.20g BB

Related videos

UMAREX - H&K Brand Showcase Livestream
H&K Incoming Announcement

Size guide

Joule Charts

Special Instructions

These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

Tap the tabs below to open the relevant chart for your replica.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
325 0.98 1.23 1.37 1.47 1.57 1.77 1.96 2.11 2.21 2.45
328 1.00 1.25 1.40 1.50 1.60 1.80 2.00 2.15 2.25 2.50
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
335 1.04 1.30 1.46 1.56 1.67 1.88 2.09 2.24 2.35 2.61
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
345 1.11 1.38 1.55 1.66 1.77 1.99 2.21 2.38 2.49 2.76
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
355 1.17 1.46 1.64 1.76 1.87 2.11 2.34 2.52 2.63 2.93
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90
420 1.64 2.05 2.29 2.46 2.62 2.95 3.28 3.52 3.69 4.10
430 1.72 2.15 2.40 2.58 2.75 3.09 3.44 3.69 3.86 4.29
440 1.80 2.25 2.52 2.70 2.88 3.24 3.60 3.87 4.05 4.50
450 1.88 2.35 2.63 2.82 3.01 3.39 3.76 4.04 4.23 4.70
460 1.97 2.46 2.75 2.95 3.15 3.54 3.93 4.23 4.42 4.91
470 2.05 2.57 2.87 3.08 3.28 3.69 4.10 4.41 4.62 5.13
480 2.14 2.68 3.00 3.21 3.42 3.85 4.28 4.60 4.82 5.35
490 2.23 2.79 3.12 3.35 3.57 4.02 4.46 4.80 5.02 5.58
500 2.32 2.90 3.25 3.48 3.72 4.18 4.65 4.99 5.23 5.81
510 2.42 3.02 3.38 3.62 3.87 4.35 4.83 5.20 5.44 6.04
