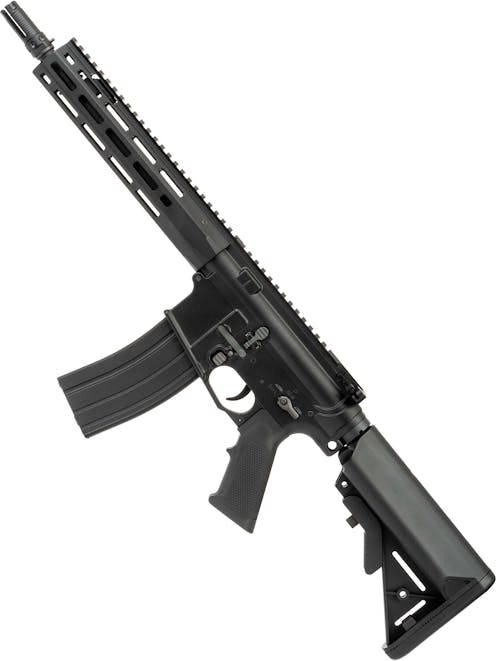

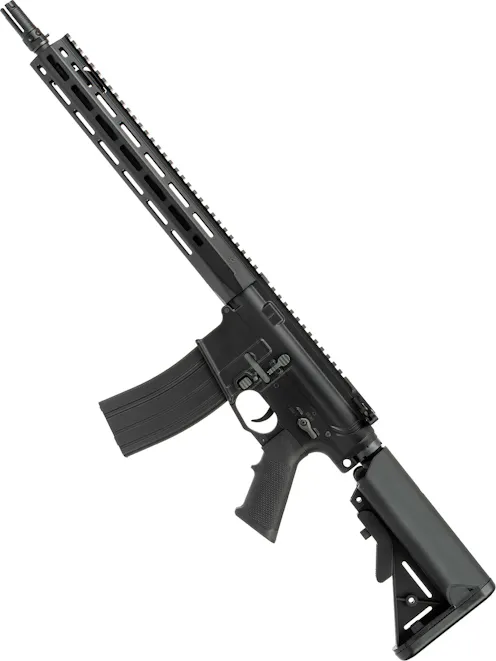

WELL PRO WE13 M4/AR-15 AEG; WELL PRO ETU (DSG 50RPS)

WELL PRO
Code:
£439.99
  • Full metal construction
  • Dual Sector Gear - 50 Rounds per second!
  • Programmable MOSFET & 35K brushless motor

If you're on a special forces vibe but want jaw-dropping performance, the WELL PRO WE13 M4/AR-15 AEG; WELL PRO ETU (DSG 50RPS) ticks both boxes! A full metal build based on a cutting-edge rifle which recently entered service with the British Armed Forces, the WE13 boasts ambidextrous fire controls, an M-LOK handguard, threaded outer barrel, and a 20mm Picatinny railed receiver, ready to be kitted out with mission essentials.

Inside, this variant of the WE13 really is pushing performance to the limit, equipped with a 9:1 ratio Dual Sector Gear gearset and a powerful 35,000 RPM brushless motor, resulting in an incredible rate of fire of up to 50 rounds per second! Also inside is WELL PRO's programmable MOSFET/ETU, offering alternative fire modes, and a 6.05mm tightbore inner barrel for superb accuracy potential with high-quality BBs.

Some might say performance like this is a little too much for a milsim-oriented platform, but stick it on semi-auto for milsim events and let full auto rip at casual games, and you'll never look back! Whether you're working on a milsim loadout or you simply appreciate a mission-ready, modern AR with incredible performance, the WELL PRO WE13 M4/AR-15 AEG; WELL PRO ETU (DSG 50RPS) should be on your shopping list!

Full description

Description

If you love milsim-friendly looks with game-dominating performance, WELL PRO has you covered with the WE13 M4/AR-15 AEG; WELL PRO ETU (DSG 50RPS)! Based on a recently developed real steel rifle which now serves with the British Armed Forces, this full metal build has all the details a milsim fan would appreciate, but inside, it really is something else!

Based around an alloy version 2 gearbox, the WE13 DSG version is rocking what is known as a Dual Sector Gear (DSG) gear set, effectively doubling the rate of fire compared to a standard 18:1 ratio gearset. This rate of fire advantage is furthered by the pre-installed 35K RPM brushless motor, resulting in an incredible rate of fire of up to 50 rounds per second. Nothing else on the market currently goes this fast, so if speed is your goal, the WELL PRO WE13 M4/AR-15 AEG; WELL PRO ETU (DSG 50RPS) should be your next primary!

Starting at the front, we can find a detailed three-prong QDC flash hider made from alloy affixed to 14mm CCW male barrel threading. The QDC flash hider is the perfect starting point for an authentic build, but can easily be replaced with a tracer unit, suppressor or alternative flash hider thanks to the common 14mm CCW barrel threads.

We have had the opportunity to test the pre-installed QDC device with the Angry Gun QDC/MCQ-PRT Suppressor, and it unfortunately does not fit. Fortunately, most suppressors of this type include a compatible flash hider, so there's no need to worry!

Moving rearwards slightly, we come to the URX6-inspired M-LOK handguard, featuring M-LOK negative space attachment slots at the 3, 6, and 9 o'clock positions, with extra M-LOK slots at the offset angles. This allows M-LOK accessories to be placed wherever you prefer, fitting in neatly with modern rifle setups, which encourage offset mounting of flashlights for a sleeker side profile.

The 12 o'clock handguard position features a full-length 20mm Picatinny rail, which seamlessly integrates with the receiver rail, offering a long, uninterrupted rail surface ideally suited to practically any optical sight setup, from an LPVO to a red dot sight and magnifier combo.

Running beneath the handguard, we are treated to a realistic mock gas block and gas tube, a detail often missed from other replicas. While these don't have a function in an Airsoft AEG, they are nevertheless an essential part of a realistic AR-15 build, and one realism fans won't want to miss out on!

As we reach the receiver, we can take note of the HK416-style keyed engagement between the handguard and receiver, ensuring that the handguard will never loosen or rotate, regardless of force applied. As mentioned, the receiver features a 20mm Picatinny rail on its upper surface, ready for your choice of optical sighting system.

The receiver itself keeps the familiar layout of the legacy M4/AR-15 platform but adds ambidextrous fire controls for modern handling and intuitive use by left or right-handed shooters. The charging handle, located at the top rear of the receiver, features dual sided latch, allowing it to be racked from the left or right side with a single finger. Unlike a real AR, you don't need to work the charging handle to load the first round: instead, it opens the dust cover on the right side and retracts the mock bolt carrier, revealing the rotary HOP-up adjuster.

The HOP-up allows you to adjust the amount of backspin applied to your projectiles and tune the WE13 for different ammo weights, looking for the flattest possible trajectory. The WELL PRO unit also features a numerically marked dial, allowing you to track your HOP-up setting for different ammo weights and save time on game day. Once your adjustment is complete, you can hit either of the ambidextrous "ping pong paddle" bolt release catches present on each side to release the mock bolt with a satisfying "clank".

Above the pistol grip, we can find the 3-position fire selector, offering a default configuration of SAFE-SEMI-AUTO with a 90-degree throw between each mode. Like the other fire controls, the selector is present on both sides, ideal for left or right-handed shooters and those who like to use "shoulder-to-shoulder transitions" to make the best use of surrounding cover.

This selector design is modern and enhanced, with grippy serrations on the surface for fast manipulation in wet weather and a scalloped right-side selector to reduce finger fatigue over long durations of use. With the WELL PRO ETU on board, you can also program the fire modes for alternative functions, including burst modes and binary trigger.

The magazine release is also ambidextrous, present on either side of the magazine well, complete with a protective mag release fence surrounding each button to prevent accidental presses. This means you can crank out an emergency reload from either shoulder with absolute ease, and given the rate of fire of this demon, you'll be doing a lot of reloading!

Moving down, we come to the pistol grip and trigger guard assembly, featuring an "A2" finger-ridged pistol grip and an enlarged KS-1 style trigger guard. The A2 grip is known for being comfortable for a wide variety of hand sizes and shapes, equipped with a finger ridge to help support the weight of your rifle while held in a "high ready" position. The KS-1-style trigger guard allows plenty of space for full finger gloves, including a textured finger ledge as a helpful index point. The receiver has also been redesigned to facilitate this new trigger guard design, improving strength but preventing the standard M4/AR-15 trigger guard from being fitted.

At the rear, we can find the good old M4/AR-15 buffer tube, with an ambidextrous QD sling plate fitted between it and the receiver. The sling plate allows QD sling swivels to be mounted on either side, ideally placed for a single-point sling setup. In our tests, we found that G&G QD swivels don't fit the sockets, but the HASTA Adaptive Mission Sling Gen.4 is a perfect fit. Whichever QD swivel you choose, we recommend testing whether it fits and locks before applying any weight, just in case.

The prolific Crane stock features comfortable sloped cheek pieces and a rubber butt plate for optimal traction in any weather conditions. Also built into the Crane design are a pair of sling slots for "strap" slings, but you can add a loop of paracord to allow hook slings to be mounted if necessary.

The battery compartment is inside the Crane stock, accessible by squeezing the two tabs at the toe of the stock together, after which you can lift the butt plate off and make use of the stock's built-in battery compartment to house a nunchuck/crane-style battery, or a buffer tube-style stick battery. We recommend an 11.1V 1300mAh LiPo battery in crane/nunchuck configuration for an easy fit and that enemy-shredding 11.1V performance!

Inside, the WE13 is remarkably well equipped for the price, boasting a 6.05mm tightbore inner barrel to enhance accuracy paired with a rotary HOP-up unit. The obvious highlight of the build is its 9:1 ratio DSG gearset paired with its 35K RPM brushless motor, providing an absolutely incredible 50 rounds per second firing rate in fully automatic mode. The impressive speed of the DSG gearset translates directly to semi-automatic trigger response, resulting in a super snappy trigger your finger will never be able to outrun!

The icing on the cake of the build is its ETU/MOSFET, designed specifically by WELL PRO for its DSG builds. The ETU offers options for 3-round burst instead of full auto and binary trigger as an alternative to semi-auto, along with low battery warning, cycle completion, active braking and low/high voltage cutoff. Pre-cocking adjustment is disabled in the DSG version to avoid messing with cycle timing, but with a DSG inside, the trigger is already as fast as it gets. When we first let off a burst from this beast, we were all in shock; finding a pre-built platform with this level of performance is practically unheard of!

If you're looking for a modern milsim setup for a British Armed Forces loadout, the WELL PRO WE13 M4/AR-15 AEG; WELL PRO ETU (DSG 50RPS) is a fantastic option with performance which will definitely cause morale issues for the opposition. With a flawless full metal build and the ability to outrun even WELL PRO's Minigun series, the WE13 is not to be messed with!

Features

  • Full metal construction
  • 6.05mm Tightbore inner barrel - Great accuracy potential
  • 14mm CCW Male threaded outer barrel - Tracer/suppressor ready
  • Three-prong QDC-style flash hider - The perfect device for the KS-1-style build
  • Realistic mock gas block & gas tube - Completes the realistic build
  • URX6-Style M-LOK handguard - M-LOK Slots at 3, 6 & 9 o'clock & offset angles, 20mm Picatinny up top
  • 20mm Picatinny railed receiver - Ready for a red dot sight or scope
  • Ambidextrous charging handle - Easy HOP-up access for left or right-handed shooters
  • Rotary adjustable HOP-up unit - Inside the ejection port, adjust flight path with your chosen BB weight
  • Ambidextrous fire selector switch - Reprofiled for ergonomics, easy fire mode changes from either side
  • Ambidextrous mock bolt release - Drop the mock bolt from either side
  • Ambidextrous magazine release - Easy mag changes when working from either shoulder
  • Enlarged trigger guard - Easy trigger access for gloved or un-gloved shooters
  • Finger ridged "A2" pistol grip - Comfortable and grippy for a wide variety of hand sizes
  • Ambidextrous QD sling plate - Ready for QD sling swivels on either side
  • 6-Position M4/AR-15 buffer tube - Adjust the stock to suit your body type and loadout
  • Crane stock pre-installed - Ample battery space inside, rubber butt plate for extra grip
  • Rear wired: Deans connector - Recommended Battery: 11.1V 1300mAh LiPo in Crane/nunchuck config.
  • Version 2 gearbox:
    • Alloy shell
    • 9:1 Ratio DSG Gearset
    • Reinforced polymer piston head
    • Reinforced polymer cylinder head
    • 9mm Steel bushings
    • WELL PRO ETU/MOSFET
    • 35K RPM Brushless motor
  • WELL PRO programmable MOSFET/ETU functions:
    • Low/high voltage cutoff
    • Low battery warning
    • Semi-auto / Binary Trigger
    • 3-Round burst / Full auto
    • Adjustable pre-cocking [Disabled in the DSG version]
  • Compatible with M4/AR-15 AEG magazines - PTS EPM & EPM-1RX Mags recommended

Package Includes

  • WELL PRO WE13 M4/AR-15 AEG; WELL PRO ETU (DSG 50RPS)
    • 90rnd Medium capacity magazine x 2
    • Speed loader

Specification

Battery Included
Battery Included
No

General

Weapon Construction External
Platform Type
Assault Rifle
Over 18 Only Icon
Over 18
Yes
Icon UKARA - United Kingdom Airsoft Retailer Association
Defence / UKARA Required
Yes, No,
Screwdriver Icon
Prebuilt
Yes
Package
Included Items
Magazine x 2
Skill Level Icon
Skill Level
Advanced Player
Patrol Base - Warning Icon
Warnings
Li-Po
Li-Po - Never Leave Charging Unattended
Li-Po - Only Use Approved Chargers
Li-Po - Charge in a Fire Safe Area

Testing

FPS Icon
RPS Reading
Approx.47using 0.20g BBs
Testing Notes
Tested using 0.20g Delta Armory Diamond BBs. ROF Tested using a fully charged 11.1V 1450mAh 20C LiPo battery.

Weight and Dimension

Weight KG Icon
Weight (KG)
Approx.2.455KG, Approx.2.63KG,
Weapon Length Collapsed
Length
71cm, 79.6cm,
Weapon Length Extended
Length (Extended)
79.8cm, 88.1cm,

Construction

Colour Wheel Greyscale
Primary Colour

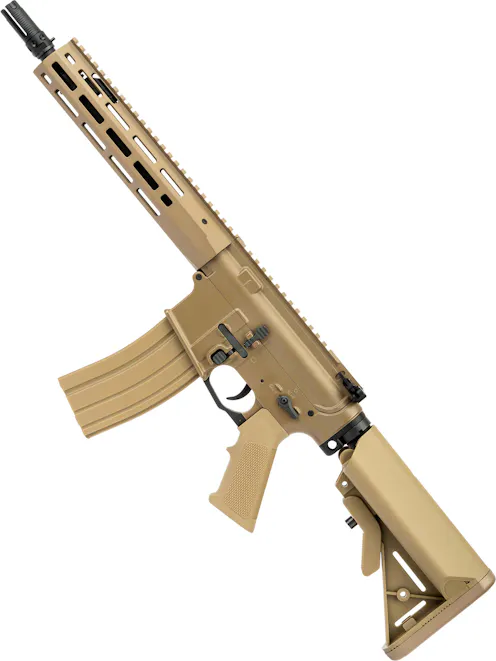

Black, Tan,
Construction Icon
Construction
CNC aluminium handguard. Alloy outer barrel, flash hider, gas block & tube, receiver, buffer tube & trim parts. High density polymer pistol grip & stock. Steel body pins & castle nut.

Weapon Specific

Power Source Icon
Powered By
Electric
Blowback Icon
Blowback Type
None
Platform
Platform
M4 / AR-15 / M16
Magazine Style Icon
Magazine Compatibility
M4/AR-15 AEG Magazines. High feed speed recommended (PTS EPM)
Fire Select Icon
Fire modes
PatrolBase | Fire Select Safe
Safe
Patrol Base | Fire Select - Semi Automatic
Semi Automatic
Patrol Base | Full Automatic
Full Automatic
Programmable
Weapon Safety Features Icon
Safety Features
Trigger Lock
Shooter Configuration Icon
Shooter Configuration
Ambidextrous
Weapon Configuration Icon
Platform Configuration
Standard
Weapon Scale Icon
Platform Scale
1:1
Suggested BB Weight
Suggested BB Weight
0.25g

Hop-Up

Hop-Up Unit Adjuster Icon
HOP-Up Adjuster Type
Rotary
Hop-Up Unit Location Icon
HOP-Up Adjustment Location
Inside the ejection port, accessible with the charging handle pulled and the mock bolt locked back.

Furniture

Weapon Furniture Icon
Furniture
  • Railed Handguard
  • Ambidextrous Charging Handle
  • Railed Receiver
  • Ambidextrous Magazine Release
  • Ambidextrous Fire Selector
  • Ambidextrous Bolt Release
  • Finger Ridged Pistol Grip
  • AR Buffer Tube
  • Sliding Stock
  • Three-prong Flash Hider
  • Threaded Outer Barrel
  • QD Sling Point
  • Ambidextrous Sling Plate
  • Enlarged Trigger Guard
  • M-LOK Handguard
  • Rubber butt plate
Rail System Icon
Rail System
20mm RIS / RAS, 20mm Railed Receiver, M-LOK,
Icon Stock Positions
Stock Type
Sliding, M4 Crane Stock, Multi-Position,
Weapon Length Extended
Stock Positions
6
Sight Type Icon
Sight Type
None
Sling Plate Icon
Sling Options
Buffer Plate, QD,

Barrel

Outer Barrel Length (in)
10.5'', 13.7'',
Icon Thread Type
Outer Barrel Thread Type
Male
Icon Thread Direction
Outer Barrel Thread Direction
CCW (Counter Clockwise)
Outer Barrel Thread Size
Outer Barrel Thread Size
14mm
Inner Barrel Diameter
Inner Barrel Diameter
6.05mm
Inner Barrel Length
Inner Barrel Length
280mm

Magazine Specific

Magazine Type
Magazine Type
AEG, Medium Capacity,
Magazine BB Capacity
Magazine BB Capacity
Approx. 90 Rounds

Electric Gun Specific Information

Gearbox
Gearbox Icon
Gearbox Version
V2 Gearbox
Wiring Icon
Gearbox Wiring
Rear Wired
Spring Change Icon
Gearbox Quick Change Spring
Yes
Digital Trigger Icon
Gearbox Electronic Trigger
Yes
Motor
Airsoft Motor Icon
Motor Type
Brushless Motor
Battery Specific
Battery Voltage
Battery Voltage
11.1V
Battery Type
Battery Type
Li-Po
Battery Connector
Battery Connector
Patrol Base | Icon | Deans
Deans
Suggested Battery Configuration
Suggested Battery Configuration
Stick or Crane configuration

Size guide

Joule Charts

Special Instructions

These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

Tap the tabs below to open the relevant chart for your replica.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
325 0.98 1.23 1.37 1.47 1.57 1.77 1.96 2.11 2.21 2.45
328 1.00 1.25 1.40 1.50 1.60 1.80 2.00 2.15 2.25 2.50
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
335 1.04 1.30 1.46 1.56 1.67 1.88 2.09 2.24 2.35 2.61
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
345 1.11 1.38 1.55 1.66 1.77 1.99 2.21 2.38 2.49 2.76
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
355 1.17 1.46 1.64 1.76 1.87 2.11 2.34 2.52 2.63 2.93
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90
420 1.64 2.05 2.29 2.46 2.62 2.95 3.28 3.52 3.69 4.10
430 1.72 2.15 2.40 2.58 2.75 3.09 3.44 3.69 3.86 4.29
440 1.80 2.25 2.52 2.70 2.88 3.24 3.60 3.87 4.05 4.50
450 1.88 2.35 2.63 2.82 3.01 3.39 3.76 4.04 4.23 4.70
460 1.97 2.46 2.75 2.95 3.15 3.54 3.93 4.23 4.42 4.91
470 2.05 2.57 2.87 3.08 3.28 3.69 4.10 4.41 4.62 5.13
480 2.14 2.68 3.00 3.21 3.42 3.85 4.28 4.60 4.82 5.35
490 2.23 2.79 3.12 3.35 3.57 4.02 4.46 4.80 5.02 5.58
500 2.32 2.90 3.25 3.48 3.72 4.18 4.65 4.99 5.23 5.81
510 2.42 3.02 3.38 3.62 3.87 4.35 4.83 5.20 5.44 6.04
