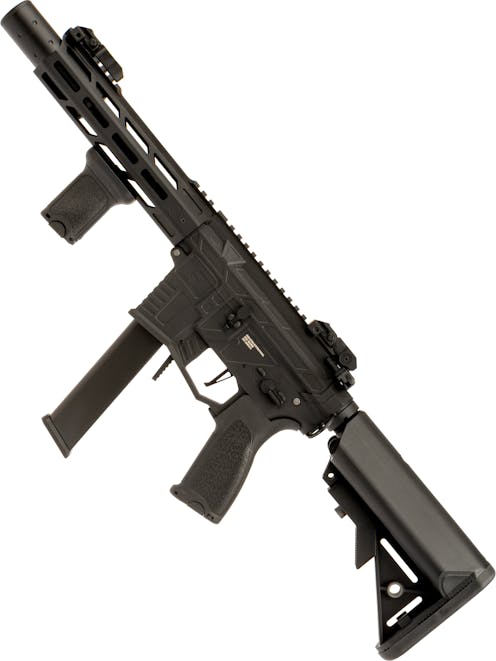

Evolution Reaper S EMR AR-9SD AEG; ETS II ETU

If you're searching for a lightweight SMG build with advanced pre-upgraded internals, the Evolution Reaper S EMR AR-9SD AEG; ETS II ETU is one to watch. Made from a combination of Evolution's Carbontech™ engineering polymer with an alloy outer barrel, CNC aluminium handguard and buffer tube with steel trim parts, the Reaper AR-9SD combines low weight with strength, with a superior feel in the hands and more realistic weight distribution compared to cheaper ABS polymer builds.

Inside, the Reaper S EMR is well equipped, rocking internals based around the prolific version 2 gearbox with full Tokyo Marui internal parts compatibility. Inside, we are equipped with 18:1 steel gears, a polymer piston with a steel tooth rack, a sector gear delayer, a quick change spring guide and the Evolution ETS II programmable MOSFET to top it off. Also inside is a 6.01mm tightbore inner barrel, offering superb accuracy with high-quality ammo and a boost in FPS from the same strength spring.

The ETS II is Evolution's own ETU/MOSFET, designed and manufactured in Italy, and offering a massive range of programmable fire mode options along with quality-of-life features other ETUs lack. Fire mode options include 3 or 5-round burst, binary trigger, sniper delay, AUG mode and ramping full-auto; giving you the standard ETU options with extra specialised features, resulting in a highly versatile platform suitable for a range of battlefield roles!

Starting at the front end, we can find a pre-installed suppressor which covers the 6.01mm tightbore inner barrel, mounting to the 6-inch alloy outer barrel. This gives the Reaper S EMR the clandestine look of an integrally suppressed AR with a compact front end, making it easy to take corners in CQB. The suppressor mounts to 14mm CCW male threading, but due to the length of the extended inner barrel, a 4-inch barrel extension will be required to mount a tracer unit.

The CNC aluminium handguard is equipped with M-LOK negative space attachment slots at the 3, 6, and 9 o'clock positions, ready for any M-LOK accessories to be directly mounted. M-LOK is one of the latest accessory interfaces to hit the market, both for real steel and Airsoft, allowing you to fit M-LOK vertical or angled grips directly, or mount 20mm Picatinny rail adapters for M-LOK to make use of 20mm Picatinny grips, flashlights and laser units. The set includes a stubby vertical foregrip for M-LOK, getting you off the mark with a free accessory which both looks great and is very comfortable.

With a 20mm Picatinny attachment rail at the 12 o'clock position, the handguard also provides a mounting point for the included flip-up aperture iron sights, which can either be left flipped down or removed entirely if you prefer to use a red dot sight or scope. The irons can be raised and lowered by hand, with no need to press buttons or fiddle with catches, and are fully adjustable for both windage and elevation.

The handguard's upper Picatinny rail meets the 20mm rail on the receiver seamlessly, allowing large optical sights and red dot sight + magnifier combos the extra space they need to be mounted easily. The receiver itself is constructed from fibre-reinforced high-density polymer with a beautiful matte finish and a high-quality textured feel, keeping the weight low and the strength high, with added scratch resistance so the odd mid-skirmish bump or scrape doesn't mean your pride and joy looks scruffy.

Regarding the controls, this SMG is patterned after the M4/AR-15 platform, offering comfortable and well-placed controls that are easy to master for almost any user. The fire selector switch can be found on the left side of the receiver, just above the pistol grip, offering 3 modes of fire; SAFE, SEMI-AUTOMATIC and FULL AUTO, with a 90-degree throw between each mode.

The magazine release is located centrally, just behind the magazine well, making it easy to operate for both left and right-handed shooters. This magazine release is definitely not one you will struggle to find in the heat of the moment; its prominent design and serrated contact surface mean fast reloads are a breeze, even with the adrenaline pumping!

The pistol grip of the Reaper S EMR boasts a refined grip angle for greater comfort when shooting with the stock fully collapsed and in more modern shooting stances. Each flank of the pistol grip includes fine crackle texturing, with additional linear texture on the front and back straps for perfect wet weather handling. The trigger is a "flat" trigger with a short finger ledge and textured front, making it ideal for pumping out rapid semi-automatic shots. The trigger guard is built into the receiver, improving strength and allowing gloved fingers easier access to the trigger than the standard AR flat trigger guard.

The charging handle can be found at the top rear of the receiver and features an extended latch which protrudes on the left side for fast access and one-handed operation. When the charging handle is pulled, the mock bolt carrier will retract and reveal the rotary HOP-up unit within the mock ejection port. The rotary HOP-up unit is the latest design for the M4/AR-15 platform and improves on the older "gear" unit with finer increments of adjustment and improved ability to hold its setting under the vibrations of full-auto fire.

The HOP-up allows the user to adjust the amount of backspin applied to the BB and tune it to provide optimum range and a stable flight path with various weights of BBs. For this SMG, we recommend 0.25g for the best combination of projectile speed, wind resistance, and range. When you have adjusted your HOP-up, you can release the charging handle to close the ejection port and flip up the dust cover to keep your internals protected from the elements.

At the rear of the receiver, we can find a steel ambidextrous "CQD" style sling plate, allowing single-point slings to be mounted on either side, perfect for left or right-handed shooters. Its steel construction ensures the sling plate will never fail under load, regardless of how many accessories you mount to this AR-9SD. Following the sling plate, we have a standard 6-position M4/AR-15 buffer tube with a crane battery stock pre-installed. While the crane stock is of great quality and very practical due to its ample battery space, the buffer tube allows you to mount practically any aftermarket M4/AR-15 sliding stock if you decide to go custom!

The battery compartment is inside the crane stock, accessible by squeezing the two tabs at the toe of the stock together, after which you can lift the butt plate off, remove the battery plug and make use of the stock's built-in battery compartment to house a nunchuck/crane-style battery. Inside, you'll find a Deans battery connector to which you mount your battery. We recommend a 7.4V 1450mAh LiPo crane/nunchuck battery for an easy fit and great performance.

The crane stock also includes a pair of QD sling sockets, one on each side, allowing for QD sling swivels to be added for a quick removable sling setup. Conventional sling slots (aka "footman loops") are also present for those who want a two-point sling but prefer the old-fashioned way. The butt plate is also made from grippy rubber, ensuring your Reaper S EMR doesn't slip off your shoulder at a critical moment.

Inside, the Reaper S EMR is rocking respectable internals based around the Version 2 gearbox, offering plenty of aftermarket upgrade options for the tuning addicts. The gearbox shell is alloy and reinforced, the 18:1 steel gearset runs on 8mm oil-less steel bushings, a sector gear delayer ensures feeding is reliable at high speeds, and the polymer piston with full steel tooth rack provides low weight and strength in equal measure. The inner barrel also has a super-tight 6.01mm bore, giving the Reaper an accuracy edge with high-quality ammo and boosting FPS by enhancing air efficiency even more than common 6.03mm tightbore barrels!

The Evolution ETS II programmable ETU/MOSFET adds advanced functionality to the mix, offering programmable fire modes including 3 or 5-round burst, binary trigger, ramping full auto, sniper delay and AUG mode. Programming is carried out purely through the trigger and fire selector, meaning no extra parts are needed to take full advantage of the ETS II's advanced features. While alternative fire modes are great fun and very practical, the ETS II also offers several quality-of-life features, from auto motor diagnostics to low voltage cutoff and cycle completion, ensuring your gearbox is running efficiently with minimal parts wear.

If you love stealthy styling and appreciate a superbly made yet lightweight pre-upgraded build, the Evolution Reaper S EMR AR-9SD AEG; ETS II ETU ticks all the boxes. With advanced programmable features, an exceptionally tight barrel bore and proven, future-proofed parts ready to be upgraded, the Reaper AR-9SD punches way above its weight!

Features

• 6.01mm Tightbore inner barrel - Great accuracy potential
• CNC Aluminium handguard, suppressor & buffer tube - Strong, light & well finished
• Carbontech™ Engineering polymer body - Super strong, unique Evolution styling
• 14mm CCW Male threaded outer barrel - Tracer/suppressor ready, 4-inch barrel extension required
• Flip-up iron sights pre-installed - Mounted to the top rail, windage & elevation adjustable
• CNC Aluminium M-LOK handguard - M-LOK slots at 3, 6, & 9 o'clock, mount M-LOK accessories
• 20mm Picatinny top rail - Compatible with 20mm Picatinny accessories
• Extended charging handle latch - Easy access to the HOP-up unit for adjustment
• Ambidextrous magazine release - Paddle style release, easy to reach from either side
• 20mm Picatinny railed receiver - Ready for a red dot sight or rifle scope
• Rotary adjustable HOP-up unit - Easy to adjust in fine increments, holds its setting well long term
• Ergonomic pistol grip with reduced grip angle - Great for modern shooting stances, very comfy
• 6-Position M4/AR-15 buffer tube - Adjust the stock to suit your body type perfectly
• Crane style stock - Plenty of space for nunchuck batteries, QD sling sockets on each side
• Version 2 Gearbox:
  • Reinforced alloy gearbox shell
  • 18:1 Steel gears
  • 8mm Oil-less steel bushings
  • Sector gear delayer
  • Polymer piston with full steel tooth rack
  • Quick-change spring system
  • ETS II MOSFET/ETU
• ETS II MOSFET/ETU Functions:
  • 3/5rnd Burst mode
  • Binary trigger
  • Ramping full-auto
  • Sniper delay
  • AUG Mode
  • Auto-motor diagnostics
  • Auto cycle control
  • Low voltage cutoff/Voltage detection
• ETS II Programming instructions available here
• Compatible with Evolution Reaper AR-9 AEG Magazines

Package Includes

• Evolution Reaper S EMR AR-9SD AEG; ETS II ETU
  • 110rnd Medium-capacity magazine
  • Stubby vertical foregrip for M-LOK
