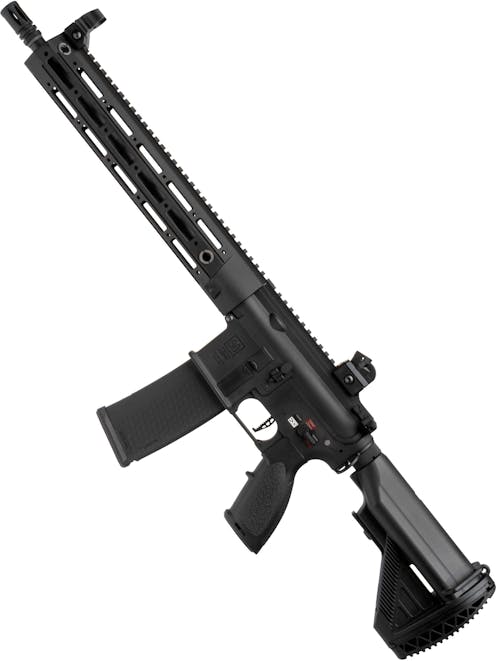

Specna Arms SA-H22 EDGE 2.0™ Carbine AEG

Specna Arms
Code:
£239.99


The SA-H22 from Specna Arms is a 416-style replica with a flat trigger and rotary drum dioptre sights. Being an EDGE 2.0™ Series replica, it also comes pre-installed with the GATE ASTER MOSFET V2 and its Orion Gearbox features a Quick Change Spring System, keeping up with the best Airsoft AEGs out there!

Full description

Description

The Specna Arms SA-H22 is an advanced AR15 design, based on the well known 416 series receiver. This AEG is constructed from metal everywhere a real AR15 is, featuring high-quality anodising on the CNC machined Aluminium handguard, and Specna's own Nano-coating on the receiver, giving it the smooth, light-absorbing matt finish we have come to expect from Specna EDGE™ series replicas.

At the tip of the 14.5 inch alloy outer barrel, we can find a birdcage flash hider, mounted to its 14mm CCW male barrel threads. The threaded barrel is of the most common type, allowing the SA-H22 to have suppressors, tracers, and muzzle devices of different styles added to spice up its looks. The top of the handguard features a full-length 20mm Picatinny rail which interfaces seamlessly with the raised receiver rail, using the 416 style locking key to prevent rotation. This handguard also features two QD sling sockets on either side, at the front and at the receiver end, allowing QD sling points to be used by both left and right handed shooters. At the very front of the handguard rail, we can find the detachable front iron sight, which combines with the rotary drum aperture rear sight found at the rear of the receiver rail. The front sight is a non adjustable winged blade type, with the protective wings preventing your front sight blade from being knocked out of alignment in the event of a drop. The rear sight provides 4 different apertures of different sizes which can be easily selected without the need for tools, and is adjustable for windage. These sights are widely considered to be one of the best designs for fast acquisition and flexibility, providing presets for different ranges which are easily selectable by rotating the rear sight drum. If you prefer flip-up sights or an optic, the rotary drum sights can be removed from the upper 20mm rail easily and replaced with the aiming device of your choice.

The receiver of the SA-H22 is finished in Specna's proprietary Nano-coating, giving it an extremely smooth and thin, yet hard wearing surface which is vastly superior to the painted finish found on other guns in this price range. To run your finger across the surface is a true pleasure, with a soft velvety texture which is thin enough to retain the sharp and detailed "SPECNA ARMS 5.56MM NATO" markings found on the left side of the magazine well. On the right side of the upper receiver we can find the dust cover and ejection port, through which we can access our HOP adjuster. When the charging handle is pulled, the dust cover will flip open and the mock bolt carrier will be held to the rear, revealing the rotary HOP adjustment dial. The rotary adjustment method is the most consistent and accurate out there, and with the SA-H22 you will likely never need an upgraded HOP unit, anything out there would at best be an equivalent! At the top and rear of the receiver, we can find the AR15 style charging handle, which features an extended latch, optimised for one-fingered operation in line with modern AR15 shooting technique. As mentioned, this can be pulled back to provide access to the HOP adjuster which is found within the ejection port. To the rear of the dust cover, we can observe both the mock shell ejector which serves to complete the AR15 look, and the forward assist, which provides a realistically textured button which would provide a way to force the bolt closed in the event of a stoppage on the real AR, though on our SA-H22 this exists for aesthetic reasons and provides no function.

On the left side of the receiver, we can find the bolt catch, or "ping pong paddle", sitting dead centre. This piece allows the mock bolt carrier to be released after it has been locked to the rear with the charging handle. Simply pressing firmly on the textured upper section of the bolt catch will release the mock bolt with a satisfying "clack". Also on the left side of the receiver is the fire selector lever, which can be set to one of three positions; Safe, Semi-Automatic, and Fully automatic. These positions are helpfully marked with high visibility pictograms, which both function perfectly and add to the AEG's authentic styling. The rear of the receiver features an ambidextrous sling plate which is designed for hook type slings, and is ideally suited to single-point bungee sling setups. When coupled with the front QD sling sockets on the handguard this rifle can also be set up with a two or 3 point sling. The pistol grip of the SA-H22 is an ergonomic design, featuring a discrete finger ridge, textured panels on the sides and rear, and an enhanced grip angle, ensuring you have a comfortable grip on the rifle and can avail yourself of the most modern shooting stances and techniques.

The stock of this AEG attaches to a standard AR15 6 position buffer tube, which is constructed from alloy and has been Nano-coated, similarly to the receiver. The tube features a knurled castle nut, aiding in removing the buffer tube to access the quick change spring system. The stock is of an advanced crane style design, and features a low profile adjustment lever, reducing the chances of the stock snagging on a sling or other equipment, and giving the rifle a dynamic look. The butt plate is made from rubber, and features linear checkering to ensure the stock stays firmly in the shooters shoulder in all weather conditions, and with or without body armour. To remove the butt plate, simply rotate it counter clockwise by 90 degrees and it will come off, revealing the SA-H22's battery compartment. The stock also provides an additional 4 sling attachment points; a sling bar on the top of either side of the stock, a sling slot in the centre and a loop at the top rear of the stock.

Before we take a dive into what this AEG has to offer in its Specna Arms Orion reinforced gearbox, lets take a look at the GATE ASTER V2, the fire control system MOSFET at the heart of the SA-H22:


The GATE ASTER

The ASTER V2 is the younger brother of the well-known TITAN V2. The world's first 4th generation AEG Control System is designed for most of AEGs with a V2  gearbox on the market (including stock, low- and mid-tuned) and even for high-tuned guns (in case of EXPERT firmware). It was designed to achieve maximum reliability at an attractive price.

Transform your AEG by replacing the trigger contacts with a computerized controller equipped with innovative optical sensors, including a proximity trigger sensor which offers even 250 sensitivity settings. Gain a unique tactical advantage thanks to extremely fast trigger response and lots of other useful functions. The ASTER's smart fuse protects your AEG’s battery, motor, and the controller, even in case of reverse battery connection. This feature, along with the optical sensors, makes the ASTER the most durable drop-in unit on the market. You choose how to configure the ASTER – simply via the trigger or through USB-Link / Blu-Link* and GATE's GCS App. To enjoy the full potential of the ASTER, you can upgrade its firmware to ADVANCED or EXPERT.

  • Protection against battery reverse polarity
  • Proximity trigger sensor which offers 250 possible sensitivity settings!
  • Option to configure its main settings simply via the trigger or completely through the GATE Control Station App for AndroidWindows and macOS (also for iOS in 2020, after Bluetooth® dongle release)
  • Built-in RGB led makes programming easier
  • Removing of the safety lever is not required
  • No modification of the gearbox shell needed, even in case of KRYTAC* and ICS (*when bolt catch lever is removed. This applies to ASTER Rev 1. Next ASTER revisions will be fully compatible with KRYTAC gearbox)
  • Optical gear cam sensor supports all types of gears: Infinite Torque-up, DSG, SSG, 19-tooth, and standard
  • Binary trigger function as a basic function
  • Premium level functionality at a fair price – Great price-performance ratio

The 'ORION Gearbox' featured inside has a reinforced shell, designed to handle high power springs and also incorporates a quick change spring system. The gearbox internals feature a Steel Gear Set, Full Steel Rack Piston, Aluminium Sealed Nozzle, Aluminium Double Sealed Cylinder, Aluminium Double Sealed Piston head w/ Bearings, 8mm Bearings and a Bearing Spring Guide. This feature set provides a long lasting and high performance gearbox that guns of twice the price would envy! Coupled with the rotary HOP unit and tight bore 6.03mm inner barrel the SA-H22 is one of the most refined and well equipped AEGs in its price range.

Features

  • Gate ASTER MOSFET installed
  • Rotary HOP unit
  • Rubber butt plate
  • Unique serial number
  • 6.03mm Tightbore inner barrel
  • Specna Reinforced Orion Gearbox
  • Ambidextrous CQD sling plate
  • Handguard with QD sling sockets
  • Ergonomic polymer Grip and stock
  • Nano-Coating finish on Receiver
  • Quick change Spring system
  • 14mm CCW threaded barrel

Package Includes

  • Specna Arms SA-H22 EDGE 2.0™ Carbine AEG
  • 2 x 125 rnd Medium Capacity Magazines
  • User Manual
  • Deans to Mini-Tamiya Adaptor

Specification

General

Weapon Construction External
Weapon Type
Assault Rifle
Over 18 Only Icon
Over 18
Yes
Icon UKARA - United Kingdom Airsoft Retailer Association
Defence / UKARA Required
Yes, No,
FPS Icon
FPS (Feet Per Second), using 0.20g BB
Approx. 325fps ± 10%, using 0.20g BB
Site Legal Icon
Site Legal, using 0.20g BB
Yes
Screwdriver Icon
Pre-Built
Yes
Package
Included Items
  • Instruction Manual
  • Magazine x 2
  • Deans to Mini-Tamiya Connector
Skill Level Icon
User Skill Level
Regular Player, Experienced Player,

Weight and Dimension

Weight KG Icon
Weight (KG)
Approx. 2.9kg
Weapon Length Collapsed
Length (Collapsed)
81cm
Weapon Length Extended
Length (Extended)
89cm

Construction

Colour Wheel Greyscale
Primary Colour
Black,
Chaos Bronze
Chaos Bronze
,
Colour Wheel Greyscale
Secondary Colour
Black
Two Tone Icon
Pre Two-Toned
No
Construction Icon
Construction
Metal body, aluminium handguard, alloy outer barrel, polymer stock and grip, steel trim parts
Weapon Construction External
External Construction
Polymer
Alloy
Aluminium
Steel
Zinc
Gearbox Icon
Internal Construction
Polymer
Alloy
Aluminium
Steel

Weapon Specific

Power Source Icon
Powered By
Electric
Blowback Icon
Blowback
None
Weapon Platform
AR Platform, 416 Series, Long Gun, Assault Rifle,
Magazine Style Icon
Magazine Style
STANAG, Long Gun Magazine, Assault Rifle, M4 / AR Platform,
Fire Select Icon
Fire Selector
PatrolBase | Fire Select Safe
Safe
Patrol Base | Fire Select - Semi Automatic
Semi Automatic
Patrol Base | Full Automatic
Full Automatic
Weapon Safety Features Icon
Safety Features
Trigger Lock
Shooter Configuration Icon
Shooter Configuration
Right Handed
Weapon Configuration Icon
Weapon Configuration
Standard
Weapon Scale Icon
Weapon Scale
1:1
Suggested BB Weight
0.25g

Hop-Up

Hop-Up Unit Icon
Hop-Up Unit
Yes
Hop-Up Unit Adjuster Icon
Hop-Up Adjuster
Rotary
Hop-Up Unit Location Icon
Hop-Up Location
Behind mock bolt, accessible when charging handle is pulled to the rear

Furniture

Weapon Furniture Icon
Furniture
  • AR Buffer Tube
  • Sliding Stock
  • Bird Cage Flash Hider
  • Ergonomic Pistol Grip
  • Rotary Drum Iron Sights
  • QD Sling Point
  • Ambidextrous Sling Plate
  • Flat trigger
Rail System Icon
Rail System
20mm Railed Receiver
Icon Stock Positions
Stock Setting
Sliding , Multi-Position ,
Weapon Length Extended
Stock Positions
6 Position
Sight Type Icon
Sight Type
Iron Sights , Rotary Drum Iron Sight ,
Sling Plate Icon
Sling Options
Buffer Plate , Stock , QD ,

Barrel

Outer Barrel Length (in)
14.5''
Icon Thread Type
Outer Barrel Thread Type
Male
Icon Thread Direction
Outer Barrel Thread Direction
CCW (Counter Clockwise)
Outer Barrel Thread Size
14mm
Inner Barrel Diameter
6.03mm
Inner Barrel Length
363mm

Magazine Specific

Magazine Type
Medium Capacity , AEG,
Magazine BB Capacity
Approx. 125 Rounds
Magazine BB Fill Method
Speed Loader
Magazine BB Fill Location
Top

Electric Gun Specific Information

Gearbox
Gearbox Icon
Gearbox Version
V2 Gearbox
Wiring Icon
Gearbox Wiring
Rear Wired
Spring Change Icon
Gearbox Quick Change Spring
Yes
Digital Trigger Icon
Gearbox Electronic Trigger
Yes
Split Gearbox Icon
Split Gearbox Design
No
Motor
Airsoft Motor Icon
Motor Type
High Torque
Battery Specific
Battery Connector
Patrol Base | Icon | Mini Tamiya
Mini Tamiya
,
Deans To Mini Tamiya
Deans To Mini Tamiya Adaptor
,
Suggested Battery
Suggested Battery Type
Li-Po
Suggested Battery Configuration
Crane
Suggested Battery Voltage
7.4v

Product Testing Data

Notepad Icon
Test Description
325 FPS +/- 10%
Notepad Icon
Tested Using
0.2g ASG Blaster
Notepad Icon
Test Date
11/11/21

Related video

Specna Arms SA-H22 EDGE 2.0 AEG Product Showcase

Size guide

Joule Charts

Special Instructions

These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

Tap the tabs below to open the relevant chart for your replica.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
325 0.98 1.23 1.37 1.47 1.57 1.77 1.96 2.11 2.21 2.45
328 1.00 1.25 1.40 1.50 1.60 1.80 2.00 2.15 2.25 2.50
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
335 1.04 1.30 1.46 1.56 1.67 1.88 2.09 2.24 2.35 2.61
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
345 1.11 1.38 1.55 1.66 1.77 1.99 2.21 2.38 2.49 2.76
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
355 1.17 1.46 1.64 1.76 1.87 2.11 2.34 2.52 2.63 2.93
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90
420 1.64 2.05 2.29 2.46 2.62 2.95 3.28 3.52 3.69 4.10
430 1.72 2.15 2.40 2.58 2.75 3.09 3.44 3.69 3.86 4.29
440 1.80 2.25 2.52 2.70 2.88 3.24 3.60 3.87 4.05 4.50
450 1.88 2.35 2.63 2.82 3.01 3.39 3.76 4.04 4.23 4.70
460 1.97 2.46 2.75 2.95 3.15 3.54 3.93 4.23 4.42 4.91
470 2.05 2.57 2.87 3.08 3.28 3.69 4.10 4.41 4.62 5.13
480 2.14 2.68 3.00 3.21 3.42 3.85 4.28 4.60 4.82 5.35
490 2.23 2.79 3.12 3.35 3.57 4.02 4.46 4.80 5.02 5.58
500 2.32 2.90 3.25 3.48 3.72 4.18 4.65 4.99 5.23 5.81
510 2.42 3.02 3.38 3.62 3.87 4.35 4.83 5.20 5.44 6.04
